Light NOW BTicino

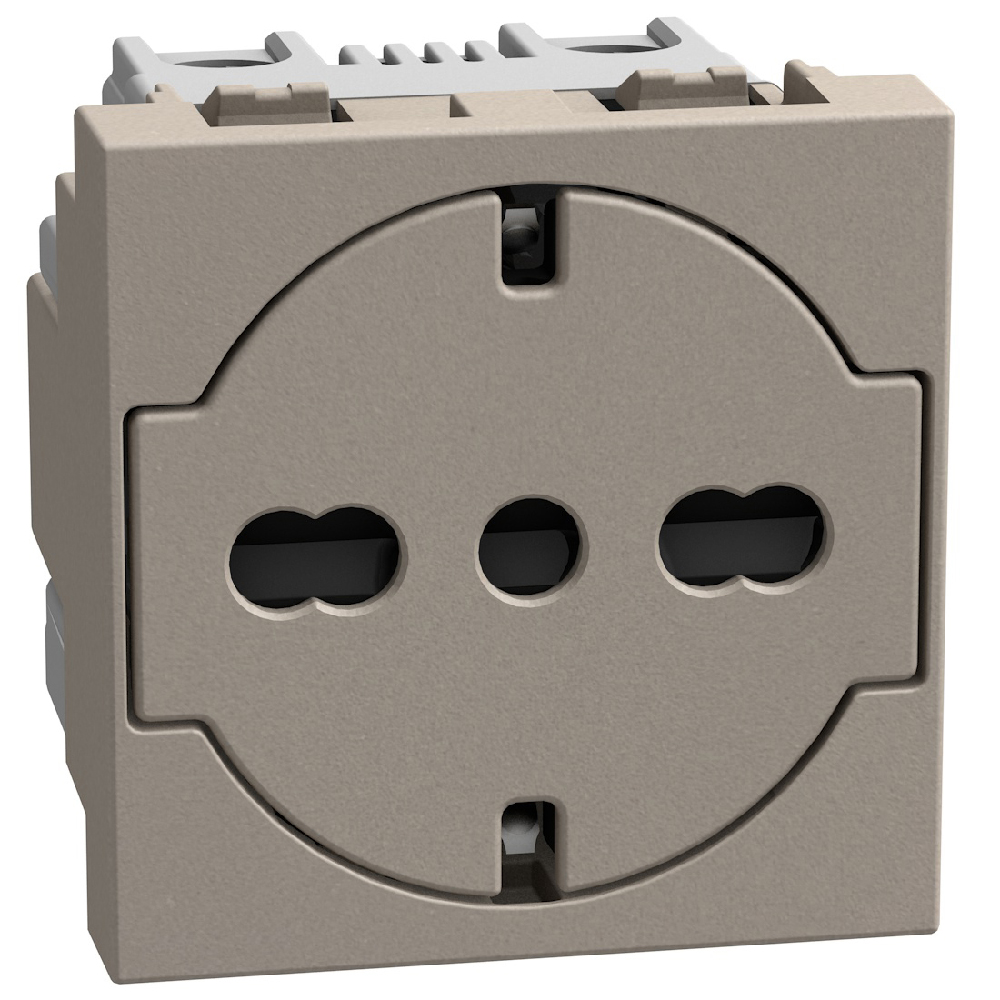

Italian standard P40 socket 2 P+E 16 A 250 V - 2 modules - stone

BT-YG4140A16F | 8005543750421
Italian Standard P40 socket outlets - flat - When the plug is inserted the socket surface slides inside the casing; it returns to its initial position when the plug is taken out. Socket 2 P+E 16 A 250 V~ - 19 and 26 mm centre distance in 2-centre configuration - protected tulip contacts; side earth contact for German standard plugs; suitable for: Italian standard plugs 2P and 2 P+E 10/16 A, and 16A, German standard plugs 2P+E 16 A. - 2 modules - stone
Description

This flat socket allows the use of Italian standard plugs 10 A and 16 A - 2 modules of stone color

Product characteristics
  • Italian std P40 flat
  • 10/16A, flat
  • 2 modules
  • Color Stone
  • Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
  • Indoor use only
Products benefits
Installation
  • Easy to install and remove
Usage
  • Planar Aesthetic and increased ergonomics
Advantages
  • Hight technical performance
Technical Characteristics
Model Italian type Bipasso
Concurrently switching neutral conductor No
Protective contact Round
Number of active contacts (round) 1
Number of active contacts (flat) 0
Number of active contacts (square) 0
Assembly arrangement Basic element with central cover plate
With complemantary luminous signal No
Number of ports USB-A 0
Number of ports USB-C 0
Number of socket outlets 1
Socket outlets phase-separated No
Number of modules (module system) 2
Number of socket outlets switchable 0
Number of phases 1
Imprint/indication None
Connection type Screwed terminal
With hinged lid No
With enhanced contact protection Yes
Label space/information surface No
Colour Grey
RAL-number (similar) 7008
Metallic colour No
Transparent Yes
Lockable No
Eject-mechanism No
Insulated mounting No
With function lighting No
With orientation lighting No
Overvoltage protection No
Fault current protection No
With miniature fuse No
Special power supply None
Mounting method Flush-mounted
Type of fastening Snap mounting (engagement)
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Lacquered
Surface finishing Matt
Antimicrobial treatment No
With loop through function Yes
Number of loop throughs 1
With on/off switch No
Colour of switch operator Grey
Rotated central insert No
Nominal current 16 A
Nominal voltage 250 V
Frequency (Min-Max) 50-60 Hz
Degree of protection (IP), connected plug IP20
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK04
Device width 45 mm
Device height 45 mm
Device depth 41.5 mm
Min. depth of built-in installation box 43.5 mm
Compatible with Apple HomeKit No
Compatible with Amazon Alexa No
Compatible with Google Assistant No
IFTTT support available No
With Wi-Fi signal repeater No
With built-in bluetooth speaker No
For heavy conditions according to VDE No
Compliant with UK Building Regulations Part M No
Built-in depth 33.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Power Delivery No
Terminal marking indication No
Prewired No
Terminals capacity (Min-Max) 1.5-2.5 mm²
Cable nature for connection Flexible or rigid
Cable section (Min-Max) 1.5-2.5 mm²
Cable support Screw cable clamp
Connected object No
Application store for download Not applicable
Programming way Not applicable
With voice command No
Programmable No
Interoperable connection Protocol No
Connectable by Internet box No
Product use function Energy distribution
