Light NOW BTicino

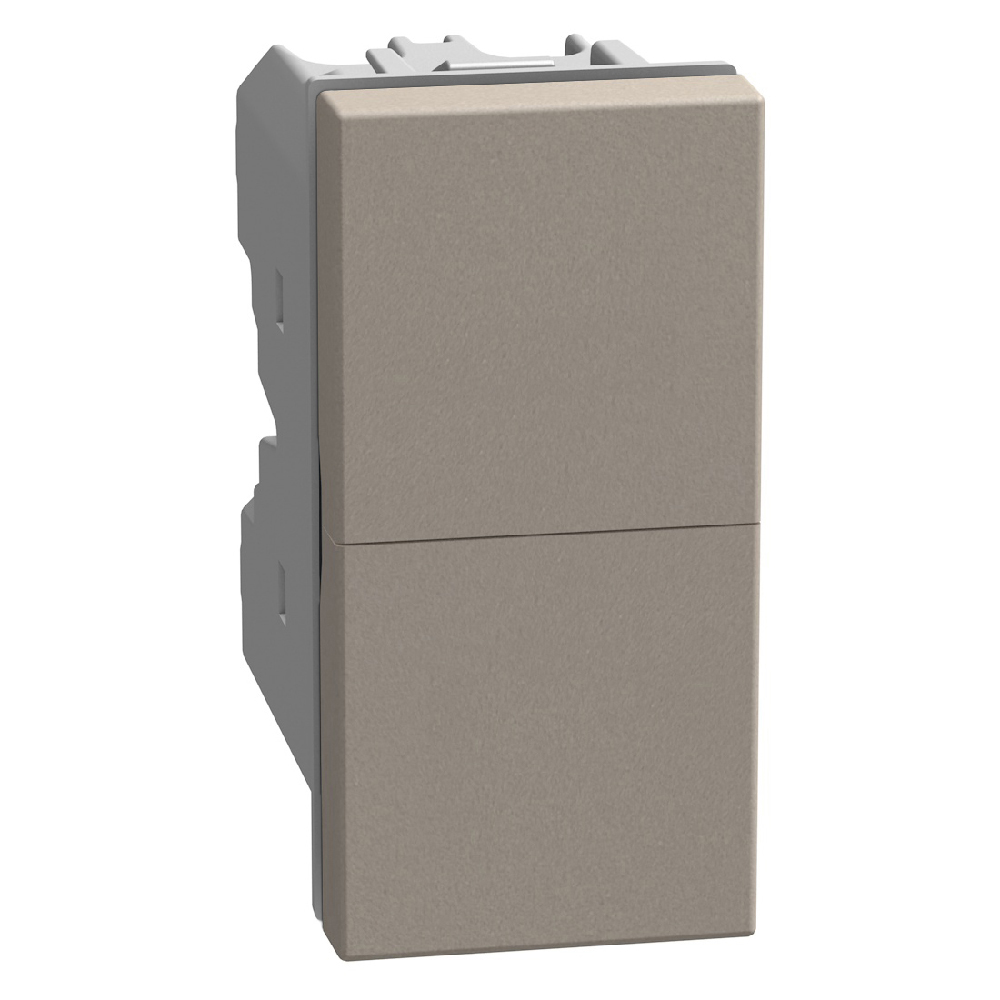

Double pushbutton 1P NO + 1P NO 10 A 250 V - not lightable - 1 module - stone

BT-YG4036 | 8005543767443
Double pushbutton 1P NO + 1P NO 10 A 250 V - not lightable - 1 module - stone
Description

Double push button 10A 250 Va.c. 1P (NO) + 1P (NO), 1 module, color stone

Product characteristics
  • double pushbutton 1P NO , v/p terminal
  • 1P NO + 1P NO 10A 250 Va.c.
  • 1 module
  • Color Stone
  • Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
  • Indoor use only
Products benefits
Installation
  • Easy to install and remove
Usage
  • Duoble Interlocked pushbutton that allows two independent circuits to be operated
Advantages
  • Hight technical performance
Technical Characteristics
Assembly arrangement Basic element
Model Other
Method of operation Push button
Operating principle Electromechanical
Number of contacts as normally closed contact 0
Number of contacts as normally open contact 2
Number of contacts as change-over contact 0
Number of revolving contacts 0
Contactless type No
Number of rockers 1
Number of modules (module system) 1
Number of poles 1
Nominal voltage 250 V
Rated current 10 A
With lighting No
With light source No
With complemantary luminous signal No
Monitoring contact No
Connection type Screwed terminal
Mounting method Flush-mounted
Type of fastening Engage (snap)
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Grey
RAL-number (similar) 7008
Transparent Yes
Label space/information surface No
Imprint Other
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK04
Device width 22.5 mm
Device height 45 mm
Device depth 41 mm
Min. depth of built-in installation box 40 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Built-in depth 30 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Frequency (Min-Max) 50-60 Hz
Mandatory neutral No
Terminal marking indication No
Terminals capacity (Min-Max) 1.5-2.5 mm²
Cable nature for connection Flexible or rigid
Cable section (Min-Max) 1.5-2.5 mm²
