Light NOW BTicino

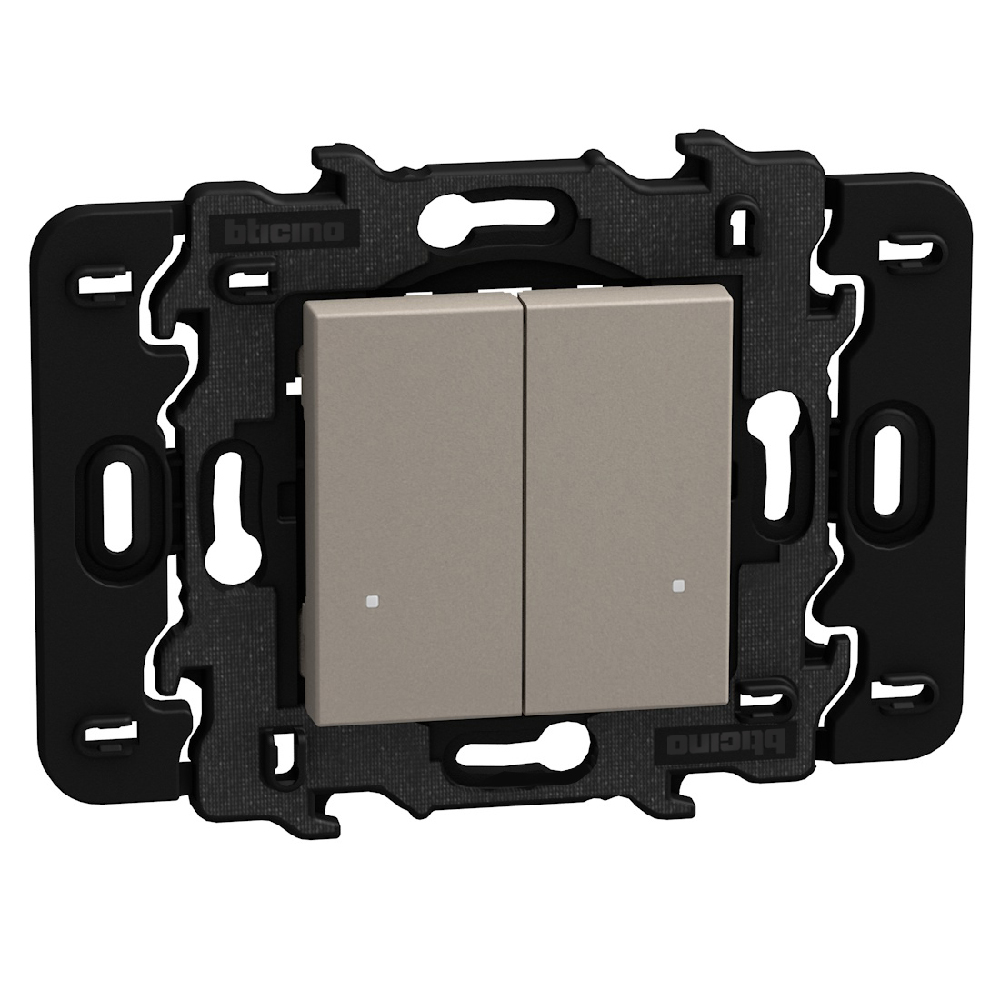

Double wireless Light switch. 3V battery power supply - 2 modules - stone

BT-YG4003DCW | 8005543759035
Double wireless Light switch. It is equipped with two buttons to control two different connected devices for Lights. Each single button can be associated with one or more devices. Surface installation with repositionable stickers (supplied) or onto a flush mounting box. Integrated LED for low battery indication. Powered by battery 3V type CR2032 (supplied) with an autonomy of 8 years - 2 modules - stone
Description

The Light Now with Netatmo wireless double light switch can be used to control two separate lighting circuits. It is also possible to create two switched power outlets to control the home appliances connected to them.

Product characteristics
  • Quick and easy pairing with wired products (connected switch with dimmer option, connected power outlet, connected micromodule, or connected cable outlet)
  • LED indicator with low battery warning
  • Supplied with a replaceable battery with an 8-year lifetime
  • 2.4 GHz radio technology
  • Stone
Recommendations / Restrictions
  • To add your wireless double light switch to your connected installation, you first need to purchase and install a Light Now with Netatmo connected starter pack, as well as one or more Light Now with Netatmo connected switches, power outlets or lighting micromodules
Products benefits
Installation
  • Extra-slim, the double wireless light switch is attached to a wall with the adhesive pads provided. It can therefore be repositioned. Can also be screwed onto a flush-mounting box.
Usage
  • Pair up to 40 dimmer switches, lighting micromodulesor power outlets (20 per double switch button) and control them all with a single press on the wireless switch.
Technical Characteristics
Radio frequency 2400 MHz
Modulation AM
Rolling code system Yes
Code length (Bit) 128
Range 185 m
Number of commands 2
With manual radio transmitter Yes
Flush-mounted radio transmitter No
Surface mounted radio transmitter Yes
With radio coding device Yes
Degree of protection (IP) IP40
Keyboard protection cover No
Current supply Battery
Width 22.5 mm
Height 45 mm
Depth 44 mm
Built-in depth 36 mm
degree of impact strength (IK) IK04
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Standby consumption 0 mA
Mandatory neutral No
Stress test conformity (1000V) No
Colour Beige
RAL-number 7008
Halogen free Yes
Antimicrobial treatment No
Mounting method Surface mounted
Contains Batteries and/or Accumulator Yes
IEC code (Pack1) CR2032
Battery ou Accumulator (Pack1) Battery (not rechargeable)
Element Composition (Pack1) Lithium (battery or accumulator)
Number of Pack 1 1
Number of Single Element (Pack1) 1
Single Element weight (Pack1) 3 g
Pack1 Location Product includes a battery
Regulation Type (Pack1) P : Portable (Standard format)
Connected object Yes
Operating method Zigbee
Application store for download Google Play Store, App Store
Programming way Smartphone apps
With voice command Yes
Programmable Yes
Interoperable connection Protocol Yes
Connectable by Internet box Yes
Compatible voice assistants Google Assistant, Amazon Alexa, Apple Siri
Application name Home + Control
Product use function Lighting management
Lighting No
Documentation
2 documents
Technical Sheet
IDP001916 | PDF (727 KB) | EN
Instruction Use
LE14764AA | PDF (2.9 MB) | IT · EN · FR · DE · ES · NL · PT · AR
5 documents
Brochure
BRO-LHNOW-2M | PDF (10.3 MB) | EN
Brochure
BRO-LHNOW-3M | PDF (13.1 MB) | EN
B2B Documents
CAT-LHNOW-2M | PDF (25.2 MB) | EN
B2B Documents
CAT-LHNOW-3M | PDF (21.5 MB) | EN
B2B Documents
PRE-LHNOW | PDF (2.4 MB) | EN
