Light NOW BTicino

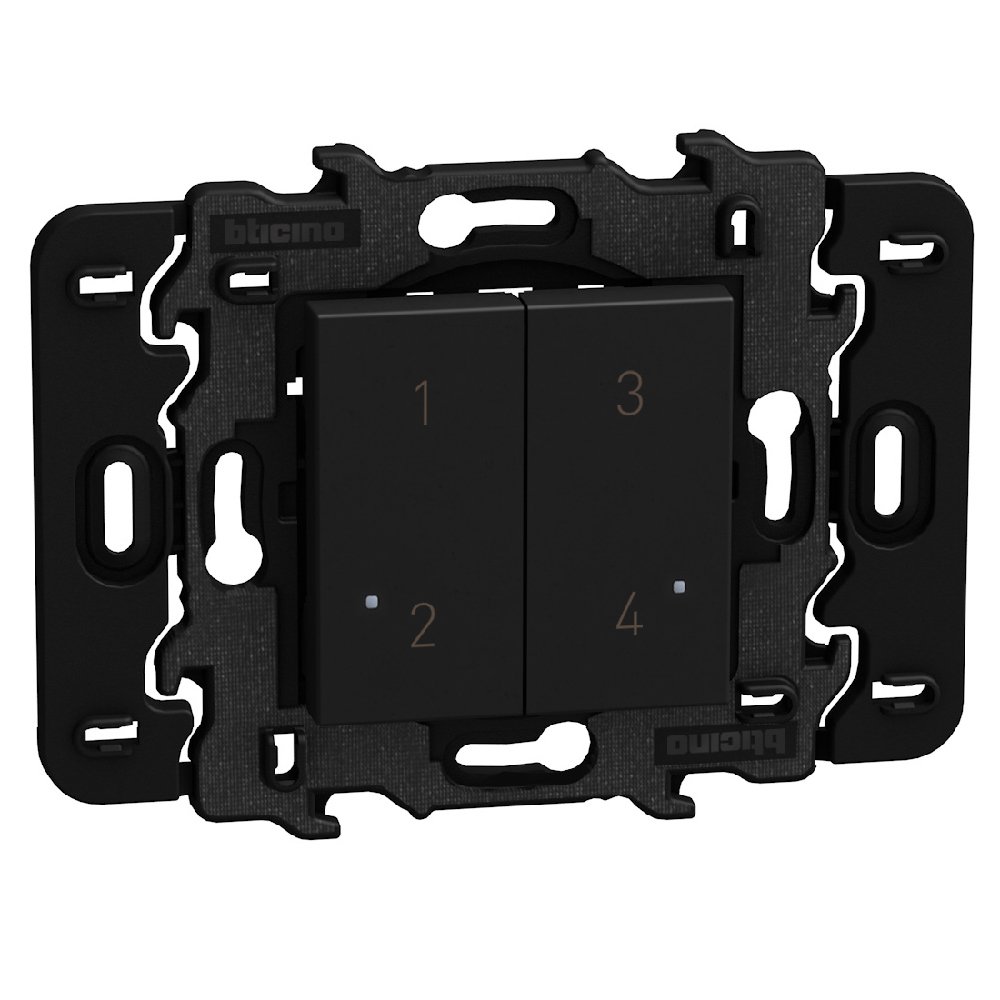

Wireless 4 scenarios control - 3V battery power supply - 2 modules - dark

BT-YD4575CW | 8005543759011
Wireless 4 scenarios control. It’s equipped with 4 buttons for activating of scenarios 1,2,3 and 4. Scenarios can be customized by the Home+ Control app. Surface installation with repositionable stickers (supplied) or onto a flushmounting box. Integrated LED for low battery indication. Powered by battery 3V type CR2032 (supplied) with an autonomy of 8 years - 2 modules - dark
Description

4 buttons to launch 4 customizable scenarios from the Home + Control app (Settings / Scenarios)

Product characteristics
  • LED with low battery indicator
  • Supplied with a replaceable battery with an 8-year lifetime
  • 2.4GHz radio technology, using Zigbee 3.0 reliable and secure
  • Dark
Recommendations / Restrictions
  • To add your 4 scenarios wireless control to your connected installation, it is necessary to purchase and install a Light Now with Netatmo connected starter pack beforehand.
Products benefits
Installation
  • Extra flat, the 4 scenarios wireless control is fixed to a wall with the adhesives supplied. It is therefore repositionable. It can also be screwed onto a flush mounting box
Usage
  • Choose in the Home + Control App the lights, roller shutters and electrical devices that you want to control via scenarios 1, 2, 3 or 4 and rename them!
Advantages
  • Perfect aesthetic integration with the installed wiring devices
Technical Characteristics
Radio frequency 2400 MHz
Rolling code system Yes
Code length (Bit) 128
Range 185 m
Number of commands 4
With manual radio transmitter Yes
Flush-mounted radio transmitter No
Surface mounted radio transmitter Yes
With radio coding device Yes
Degree of protection (IP) IP40
Keyboard protection cover No
Current supply Battery
Width 75 mm
Height 75 mm
Depth 11 mm
Built-in depth 11 mm
degree of impact strength (IK) IK04
Operating / setting temperature (Min-Max) 5-45 °C
Storage temperature (Min-Max) 0-45 °C
Standby consumption 0 mA
Mandatory neutral No
Stress test conformity (1000V) No
Colour Black
RAL-number 9011
Halogen free Yes
Antimicrobial treatment No
Mounting method Surface mounted
Contains Batteries and/or Accumulator Yes
IEC code (Pack1) CR2032
Battery ou Accumulator (Pack1) Battery (not rechargeable)
Element Composition (Pack1) Lithium (battery or accumulator)
Number of Pack 1 1
Number of Single Element (Pack1) 1
Single Element weight (Pack1) 3 g
Pack1 Location Product includes a battery
Regulation Type (Pack1) P : Portable (Standard format)
Connected object Yes
Operating method Zigbee
Application store for download Google Play Store, App Store
Programming way Smartphone apps
With voice command Yes
Programmable Yes
Interoperable connection Protocol Yes
Connectable by Internet box Yes
Compatible voice assistants Google Assistant, Amazon Alexa, Apple Siri
Application name Home + Control
Product use function Lighting management
