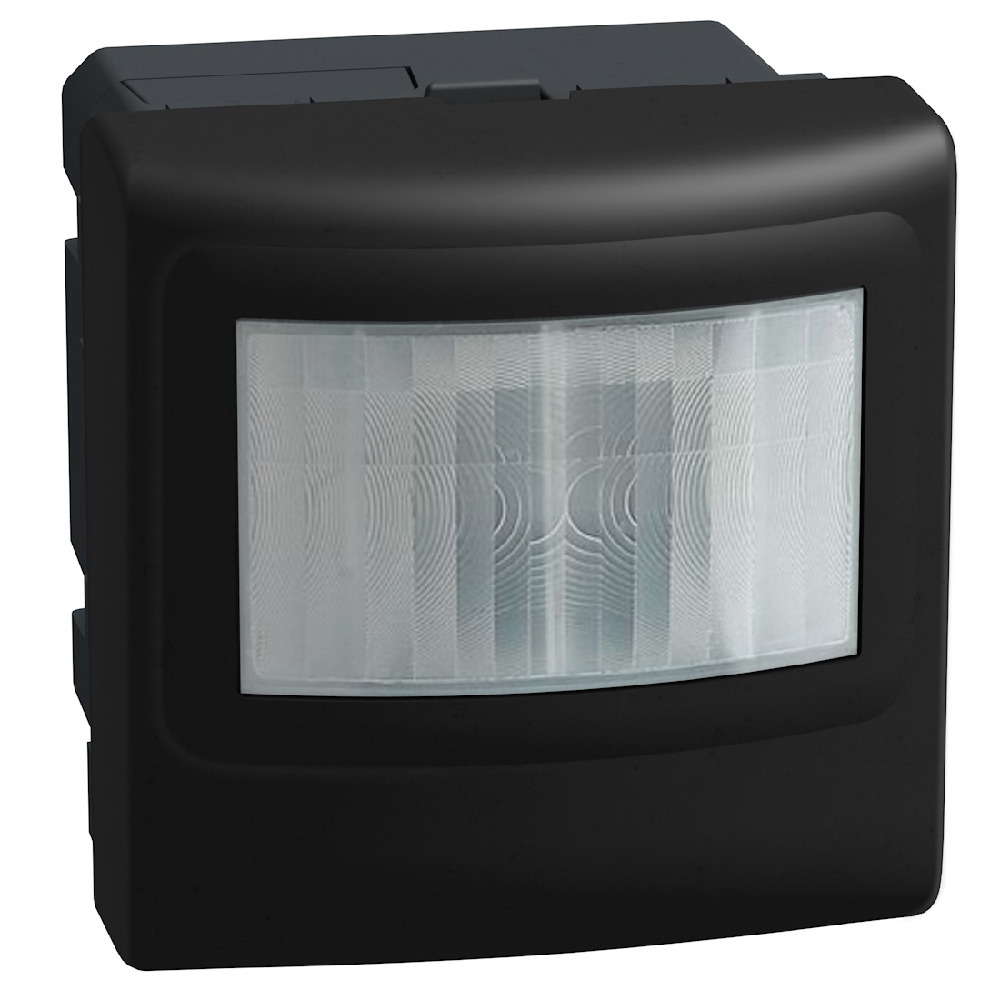

Switch with passive infrared ray movement sensor - 3 wires - 2 modules - dark
BT-YD4430N
|
8005543765494
Description
Switch with passive infrared ray movement sensor, suitable for all types of load including LED lamps - 3 wires, color dark
Product characteristics
- IR motion sensor 3wires
- Power: 230V, power supply, 3wires
- 2 modules
- Color Dark
- Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
- Indoor use only
Products benefits
Installation
- Easy to install and remove
Usage
- Switch equipped with a passive infrared motion sensor
Advantages
- Hight technical performance
Technical Characteristics
Model
Movement sensor
Movement sensor/presence detector technology
Passive infrared
Constant light control
Yes
HVAC-control
No
Forced switch on
No
Forced switch off
No
Animal zone
No
Creep-under protection
Yes
Background monitoring
No
Networkable
Yes
Scan angle
120 °
Optimum mounting height
1.2 m
Staircase light controller
Yes
Bridging switch
No
Max. reach sideways
6 m
Max. presence range
40 m²
Max. reach frontally
6 m
Diameter reach on floor
6 m
Suitable for wireless transmission
No
Remote operation
No
Supplied remote control
No
Response value sensitivity adjustable
Yes
Response value luminosity adjustable
No
With signal unit
No
Teach-function for response value luminosity
No
Dim function with dimmer basic element
No
Mounting method
Flush-mounted
Suitable for ceiling mounting
No
Suitable for wall mounting
Yes
Connection type
Screwed terminal
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
Antimicrobial treatment
No
Colour
Black
RAL-number (similar)
9011
Transparent
Yes
Degree of protection (IP)
IP20
degree of impact strength (IK)
IK04
Voltage type
AC
Frequency (Min-Max)
50-60 Hz
Nominal voltage (Min-Max)
230-230 V
Min. switch-on time
30 s
Max. duty cycle
600 min
Switch-off delay
0 s
Switching-on delay
0 s
Detection angle horizontal (Min-Max)
2-30 °
Max. switching power LED
0.5 W
Suitable for C-load
No
Number of switching zones
1
Max. starting current
2 A
Min. starting current
0.5 A
Substation input
No
With alarm function
No
With acoustic sensor
No
Ambient temperature (Min-Max)
5-40 °C
Width
45 mm
Height
45 mm
Depth
49.5 mm
Built-in width
45 mm
Built-in depth
35 mm
Built-in length
45 mm
Min. depth of built-in installation box
45 mm
With connection cable
No
Connection cable length
0 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Mandatory neutral
Yes
Terminal marking indication
No
Terminals capacity (Min-Max)
1-1.5 mm²
Cable nature for connection
Flexible or rigid
Label space/information surface
No
Entry membrane gland type
Flexible to cut
Horizontal fixing center distance (Min-Max)
3.5-3.7 mm
Auto switch
No
With DALI interface
No
