Light NOW BTicino

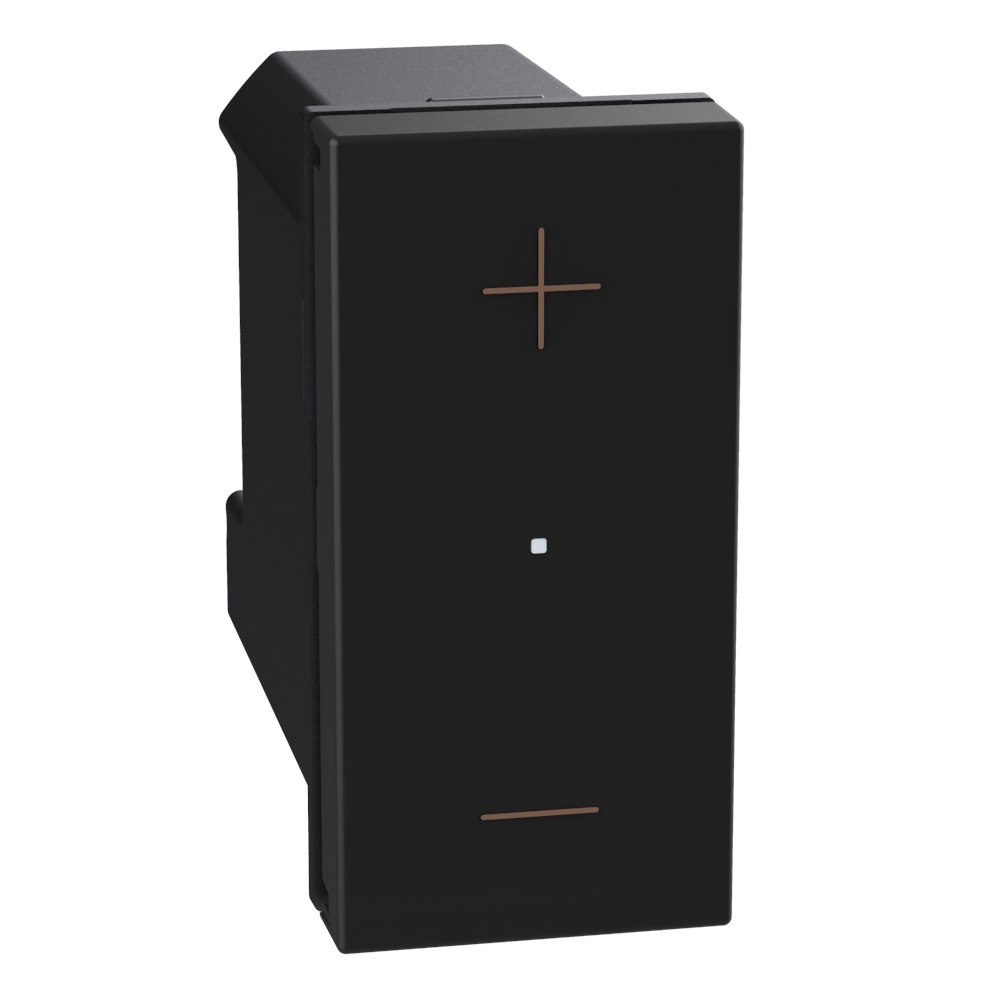

Universal pushbutton dimmer - with neutral, 3 wires - 1 module - dark

BT-YD4418 | 8005543749753
Universal pushbutton dimmer - with neutral, 3 wires. Can be associated with one or several Pushbutton (non illuminated type). Each Pushbutton able to perform the On/Off and dimming function. Memory level function: Lights come on again at the same Lighting level as before they were last switchoff. Lower and upper thresholds setting. Indicator/locator function. For all types of lamps :- Dimmable LEDs and CFLs : 0 to 150 W (15 lamps max.)- Halogen, incandescent 230 V : 0 to 150 W- Halogen with ferromagnetic or electronic transformer : 0 to 150 VA.Depth 35 mm (with neutral). Standby consumption < 5 mW- 1 module - dark
Description

This universal light dimmer supports all "Dimmable" type bulbs on the market, LEDs, Halogens, Fluocompact, etc. It allows you to create a luminous atmosphere while reducing your energy consumption, 1 module, color dark

Product characteristics
  • universal dimmer 3wires
  • Power : 150W max. Dimmable Leds/Fluocompact/Halogen
  • 1 module
  • Color Dark
  • Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
  • Indoor use only
Products benefits
Installation
  • Easy to install and remove
Usage
  • Allows to create a luminous atmosphere while reducing energy consumption
Advantages
  • Hight technical performance
  • Capacity to handle LED loads
Technical Characteristics
Assembly arrangement Basic element with central cover plate
Method of operation Push button
Number of modules (module system) 1
Number of units 1
App control via Bluetooth No
Dimming phase cut-on (leading edge) Yes
Dimming phase cut-off (trailing edge) Yes
Serial dimmer No
Type of load Universal and LED Retrofit
Substation input Yes
Light value memory Yes
Applicable with button Yes
Applicable with movement sensor No
Applicable with presence indicator No
Applicable with time switch/timer No
Applicable with transmission button No
Applicable with infrared button No
Min. brightness controllable Yes
Mounting method Flush-mounted
Type of fastening Click in mounting
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Lacquered
Surface finishing Matt
Colour Black
RAL-number (similar) 9011
Transparent Yes
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK04
Nominal voltage (Min-Max) 110-240 V
Frequency (Min-Max) 50-60 Hz
Control voltage (Min-Max) 110-240 V
Nominal power resistive load (Min-Max) 0-150 W
Nominal power inductive load (Min-Max) 0-150 VA
Nominal power capacitive load (Min-Max) 0-150 VA
Max. switching power LED 150 W
Connection type Screwed terminal
Cable section (Min-Max) 1.5-2.5 mm²
Device width 22.5 mm
Device height 45 mm
Device depth 45 mm
Min. depth of built-in installation box 47 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Built-in depth 37 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Mandatory neutral Yes
Terminal marking indication No
Stress test conformity (1000V) No
Antimicrobial treatment No
Terminals capacity (Min-Max) 1.5-2.5 mm²
Cable nature for connection Flexible or rigid
