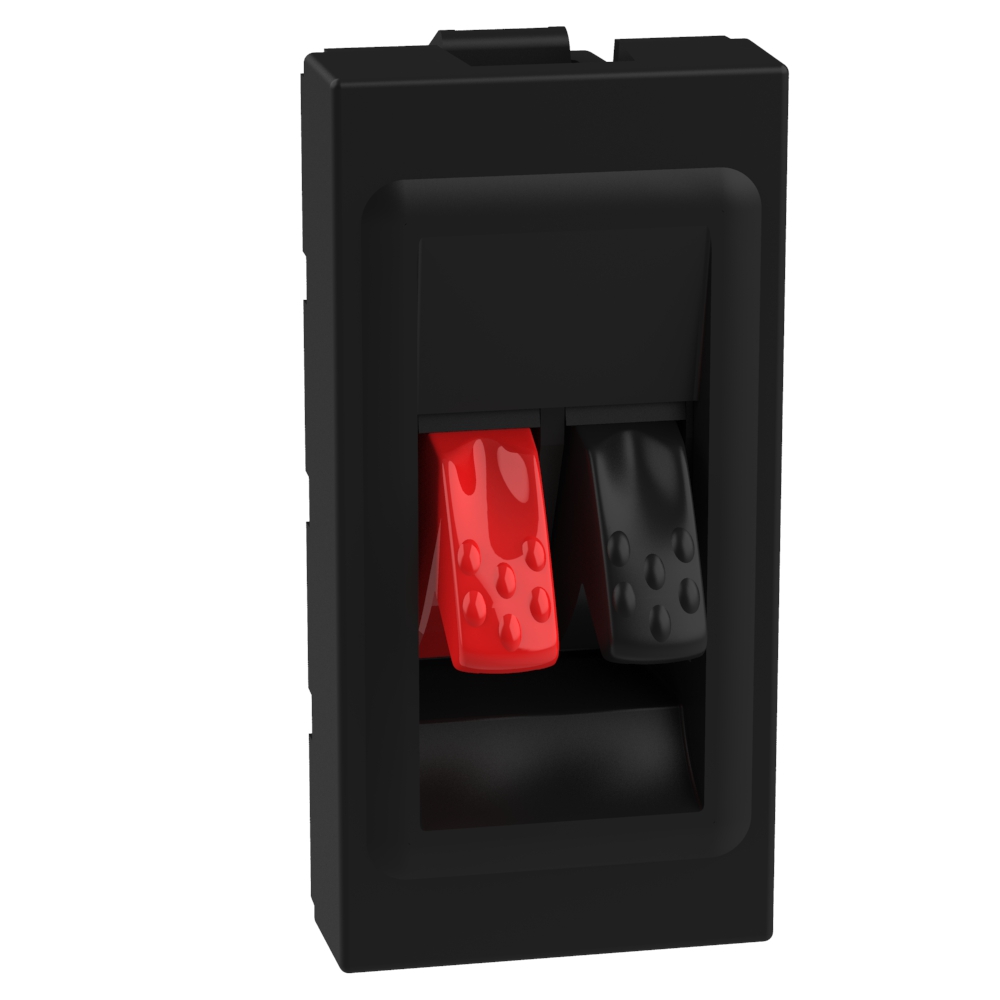

Connector for speakers home cinema - 1 module - dark
BT-YD4294
|
8005543749074
Description
The Light Now Home Cinema speaker connector allows you to connect your television to a sound system
Product characteristics
- Connector for speakers home cinema
- connector home cinema dark
- 1 module
- Color Dark
- Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
- Indoor use only
Products benefits
Installation
- Easy to install and remove
Usage
- Allows to connect television to a sound system
Advantages
- It is coordinated with the Light Now aesthetic
Technical Characteristics
Assembly arrangement
Central cover plate
Utilization
Loudspeaker connection
Support ring
No
With dust cover
No
With hinged lid
No
Outlet direction
Straight
Contact type
Male
Imprintable label
Without indication field
With imprint
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Antimicrobial treatment
Yes
Surface protection
Lacquered
Surface finishing
Matt
Colour
Black
RAL-number (similar)
9011
Transparent
No
Type of fastening
Engage (snap)
Number of modules (module system)
1
With buses/couplings
No
Isolated connections
No
With strain relief
No
Shielded buses
No
Shielded housing
No
Luster terminal
No
With lighting
No
Suitable for degree of protection (IP)
IP20
degree of impact strength (IK)
IK04
Device width
45 mm
Device height
45 mm
Device depth
35 mm
Min. depth of built-in installation box
38 mm
Built-in depth
28 mm
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
