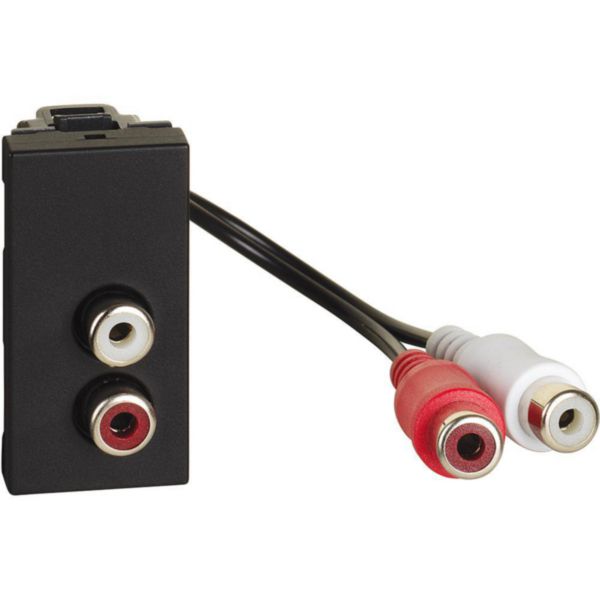

Double RCA connector - 1 module - dark
BT-YD4269R
|
8005543748954
Description
The Light Now Dual RCA connector allows you to connect audio or video device
Product characteristics
- Double RCA connector - red and yellow collars - pre-connected
- dual RCA 1 module white
- 1 module
- Color Dark
- Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
- Indoor use only
Products benefits
Installation
- Easy to install and remove
Usage
- Allows to connect audio and video devices.
Advantages
- It is coordinated with the Light Now aesthetic
Technical Characteristics
Assembly arrangement
Basic element with full cover plate
Utilization
RCA
Support ring
No
With dust cover
No
With hinged lid
No
Outlet direction
Straight
Contact type
Female
Imprintable label
Without indication field
With imprint
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Antimicrobial treatment
No
Surface protection
Lacquered
Surface finishing
Matt
Colour
Black
RAL-number (similar)
9011
Transparent
Yes
Type of fastening
Engage (snap)
Number of modules (module system)
1
With buses/couplings
Yes
Suitable for number of connectors
2
Isolated connections
Yes
With strain relief
No
Shielded buses
No
Shielded housing
No
Luster terminal
No
With lighting
No
Suitable for degree of protection (IP)
IP40
degree of impact strength (IK)
IK04
Device width
22.5 mm
Device height
45 mm
Device depth
33.5 mm
Min. depth of built-in installation box
36 mm
Built-in depth
26 mm
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
