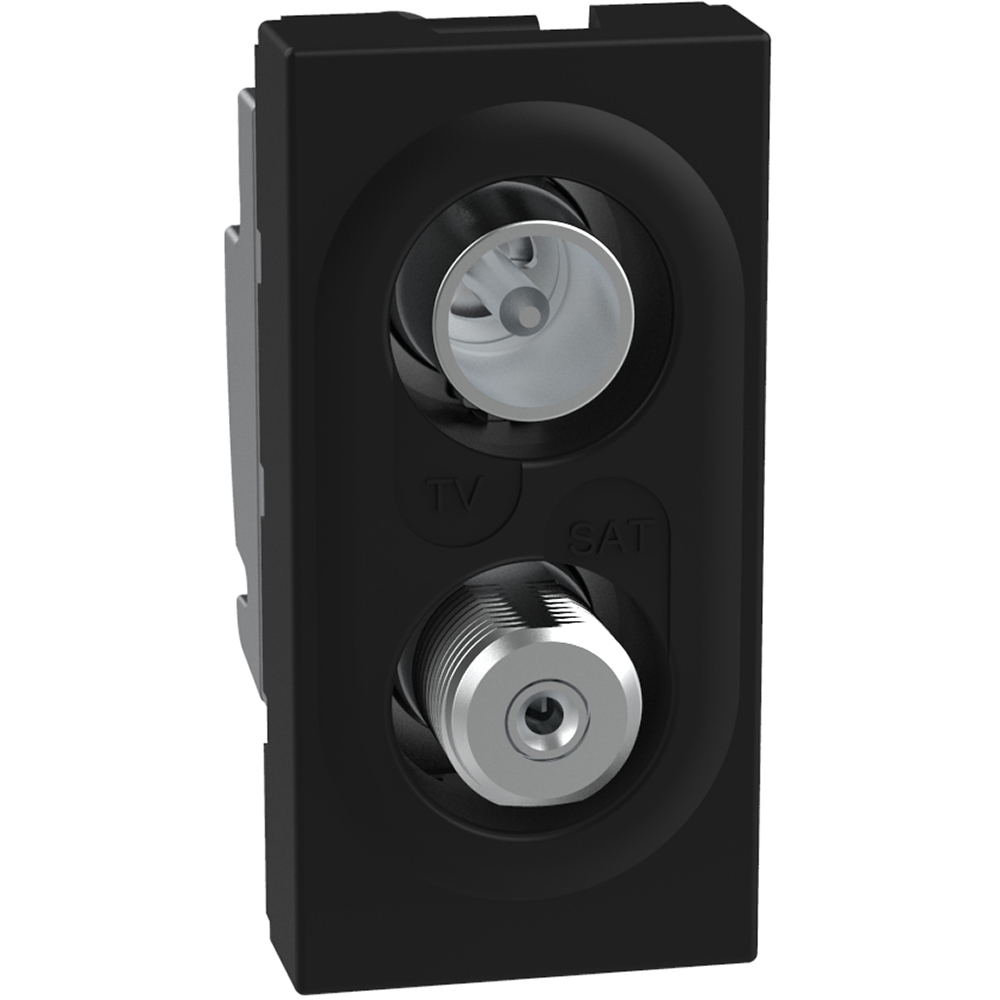

Direct demixed coaxial socket - type F SAT connector - 1 module - dark
BT-YD4214D
|
8005543748800
Description
The TV coaxial socket direct demix of Light Now allows you to connect all types of TV with a high-definition quality (UHD). It has been designed for TV or satellite installations, color dark
Product characteristics
- TV-SAT 1 cable star
- Optimized cable tightness
- 1 module
- Color Dark
- Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
- Indoor use only
Products benefits
Installation
- Easy to install and remove
Usage
- Allows to connect the TV-SAT cable
Advantages
- Hight technical performance
Technical Characteristics
Model
End socket
Type of socket outlet
TV/SAT
DAB+
No
Mounting method
Flush-mounted
Number of modules (module system)
1
Assembly arrangement
Basic element
Tap loss at 860 MHz
1.5 dB
Tap loss at 2150 MHz
2 dB
Number of outlets
2
Suitable for cable modem
No
TV frequency band (Min-Max)
50-60 MHz
Suitable for remote power supply
No
Type of fastening
Snap mounting (engagement)
Colour
Black
RAL-number (similar)
9011
Surface protection
Lacquered
Surface finishing
Matt
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Antimicrobial treatment
No
Degree of protection (IP)
IP20
degree of impact strength (IK)
IK04
Device width
22.5 mm
Device height
45 mm
Device depth
36 mm
Min. depth of built-in installation box
38 mm
Built-in depth
28 mm
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Terminal marking indication
No
