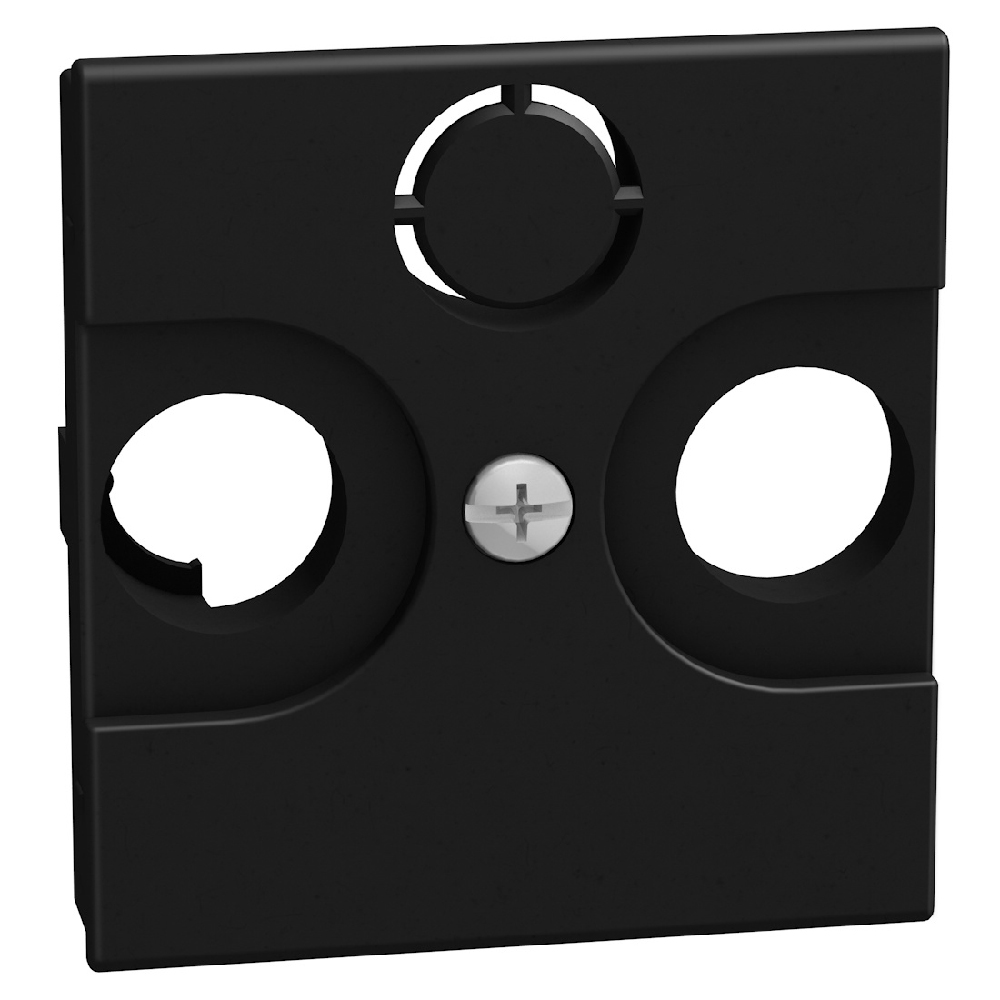

Cover TV-R-SAT - 2 modules - dark
BT-YD4207
|
8005543751794
Description
This Light Now Cover is an adapter which permits you to install other TV-R-SAT devices
Product characteristics
- Cover TV-R-SAT
- Cover adapter for TV-R-SAT
- 2 modules
- Color Dark
- Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
- Indoor use only
Products benefits
Installation
- Easy to install and remove
Usage
- This adapter allows the installation of TV-R-SAT devices
Advantages
- It is coordinated with the Light Now aesthetic
Technical Characteristics
Assembly arrangement
Central cover plate
Utilization
Diplexer TV/satellite
Support ring
No
With dust cover
No
With hinged lid
No
Outlet direction
Straight
Contact type
Male
Imprintable label
Without indication field
With imprint
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Antimicrobial treatment
Yes
Surface protection
Lacquered
Surface finishing
Matt
Colour
Black
RAL-number (similar)
9011
Transparent
No
Type of fastening
Mounting with screw
Number of modules (module system)
2
With buses/couplings
No
Isolated connections
No
With strain relief
No
Shielded buses
No
Shielded housing
No
Luster terminal
No
With lighting
No
Suitable for degree of protection (IP)
IP20
degree of impact strength (IK)
IK04
Device width
45 mm
Device height
48 mm
Device depth
10.5 mm
Min. depth of built-in installation box
40 mm
Built-in depth
30 mm
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
