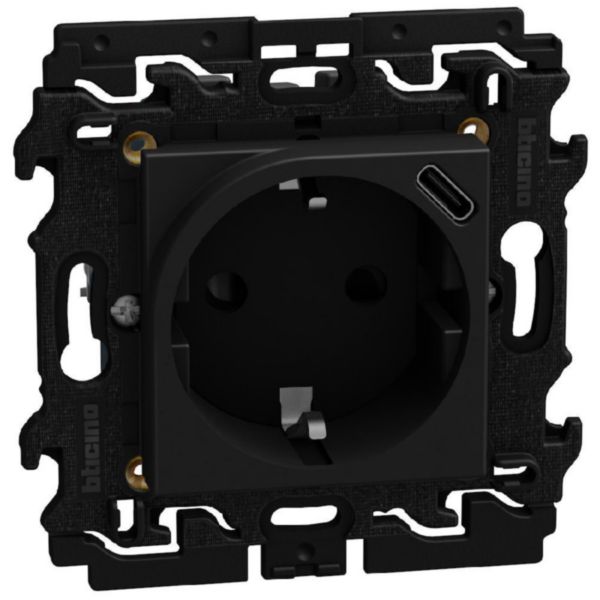

Name: German standard socket 2 P+E 16 A 250 V with USB charger - dark
Brand: BTicino
SKU: BT-YD4141USB
Availability: InStock

Description

This socket allows to connect an electric or electronic device with plugs German standard plugs 16 A and USB charger - 2 modules of dark color

Product characteristics

German std + USB charger 1 outlet type C
16A
2 modules
Color Dark
Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.

Recommendations / Restrictions

Indoor use only

Products benefits

Installation

Easy to install and remove

Usage

Child protection shutter

Advantages

Hight technical performance

Technical Characteristics

Model Socket outlet with protective contact CEE 7/3 (type F)

Concurrently switching neutral conductor No

Protective contact Other

Number of active contacts (round) 1

Number of active contacts (flat) 0

Number of active contacts (square) 0

Assembly arrangement Basic element with central cover plate

With complemantary luminous signal No

Number of ports USB-A 0

Number of ports USB-C 1

Max. current rating of USB power supply 0.25 A

Number of socket outlets 1

Socket outlets phase-separated No

Number of modules (module system) 2

Number of socket outlets switchable 0

Number of phases 1

Imprint/indication None

Connection type Screwed terminal

With hinged lid No

With enhanced contact protection Yes

Label space/information surface No

Colour Black

RAL-number (similar) 9011

Metallic colour No

Transparent Yes

Lockable No

Eject-mechanism No

Insulated mounting No

With function lighting No

With orientation lighting No

Overvoltage protection No

Fault current protection No

With miniature fuse No

Special power supply None

Mounting method Flush-mounted

Type of fastening Snap mounting (engagement)

Material Plastic

Material quality Thermoplastic

Halogen free Yes

Surface protection Lacquered

Surface finishing Matt

Antimicrobial treatment No

With loop through function Yes

Number of loop throughs 1

With on/off switch No

Colour of switch operator Black

Rotated central insert No

Nominal current 16 A

Nominal voltage 250 V

Degree of protection (IP), connected plug IP20

Frequency (Min-Max) 50-60 Hz

Rated fault current 0.25 mA

Suitable for degree of protection (IP) IP20

degree of impact strength (IK) IK04

Device width 76 mm

Device height 76 mm

Device depth 55 mm

Min. depth of built-in installation box 58 mm

Compatible with Apple HomeKit No

Compatible with Amazon Alexa No

Compatible with Google Assistant No

IFTTT support available No

With Wi-Fi signal repeater No

With built-in bluetooth speaker No

For heavy conditions according to VDE No

Compliant with UK Building Regulations Part M No

Built-in depth 48 mm

Operating / setting temperature (Min-Max) -5-35 °C

Storage temperature (Min-Max) -10-70 °C

Voltage type AC

Power Delivery No

USB Output Power 7.5 W

Terminal marking indication No

Prewired No

Terminals capacity (Min-Max) 1.5-2.5 mm²

Cable nature for connection Flexible or rigid

Cable section (Min-Max) 1.5-2.5 mm²

Cable support Screw cable clamp

Connected object No

Application store for download Not applicable

Programming way Not applicable

With voice command No

Programmable No

Interoperable connection Protocol No

Connectable by Internet box No

Product use function Energy distribution

German standard socket 2 P+E 16 A 250 V with USB charger - dark
