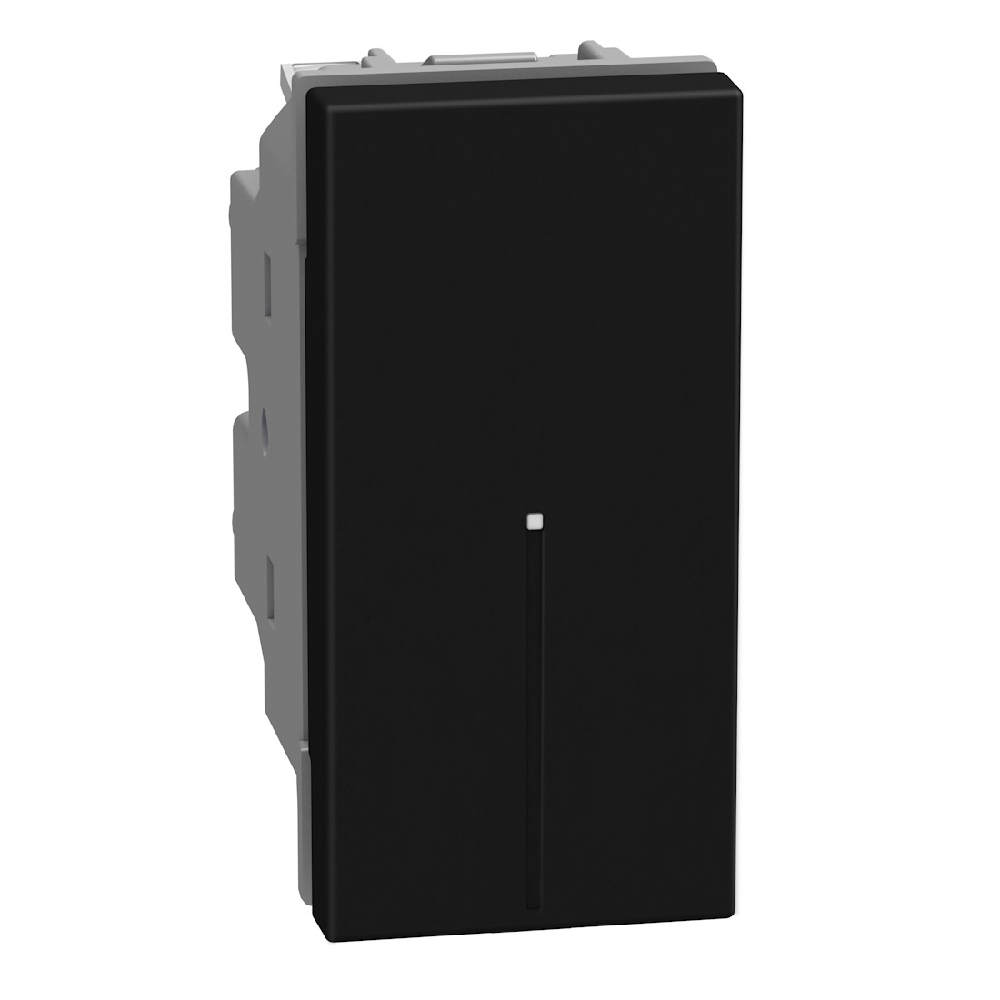

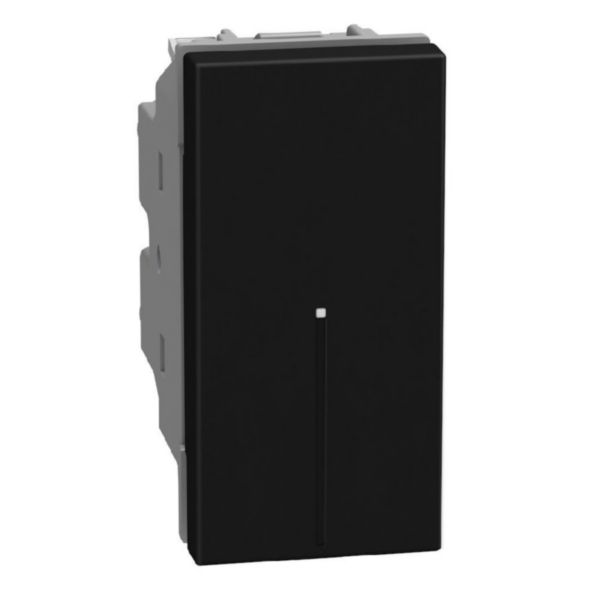

Name: 2- way switch 1P 10AX 1 module dark, axial, lightable, automatic terminals
Brand: BTicino
SKU: BT-YD4053A
Availability: InStock

Description

2way 1P 10AX 1m dark, axial, lightable

Product characteristics

2way , automatic terminal
1P 10 AX 250 Va.c.
1 module
Color Dark
Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.

Recommendations / Restrictions

Indoor use only

Products benefits

Installation

Easy to install and remove

Usage

The led inside gives a clear, intense bright beam

Advantages

Hight technical performance
The axial ergonomy guarantees the perfect flatness between the mechanisms and the coverplate thanks to advanced technology, synthesis of a very mechanical precise and sophisticated.
The signature and the possibility to insert the LED behind the command, facilitate the recognition of the Light Now range, resuming BTicino DNA and premium brand values.

Technical Characteristics

Wiring system Switch 2x1-pole

Method of operation Rocker/button

Assembly arrangement Modular device for domestic switching devices

Number of modules (module system) 1

Push button switch Yes

Number of rockers 1

Mounting method Flush-mounted

Type of fastening Engage (snap)

With mounting plate No

Material Plastic

Material quality Thermoplastic

Halogen free Yes

Antimicrobial treatment No

Surface protection Lacquered

Surface finishing Matt

Colour Black

RAL-number (similar) 9011

Colour of switch operator Black

Label space/information surface No

Lighting No

Function lighting Orientation

Type of lighting LED exchangeable

Suitable for degree of protection (IP) IP20

degree of impact strength (IK) IK04

Nominal voltage 250 V

Rated current 10 A

Switching current for fluorescent lamps 10 AX

Monitoring contact No

Connection type Push-in clamp

Heating switch No

Washing machine switch No

Device width 22.5 mm

Device height 45 mm

Device depth 38 mm

Built-in depth 30 mm

Min. depth of built-in installation box 40 mm

Compatible with Apple HomeKit No

Compatible with Google Assistant No

Compatible with Amazon Alexa No

IFTTT support available No

Operating / setting temperature (Min-Max) -5-35 °C

Storage temperature (Min-Max) -10-70 °C

Voltage type AC

Frequency (Min-Max) 50-60 Hz

Mandatory neutral No

Terminal marking indication No

Terminals capacity (Min-Max) 1.5-2.5 mm²

Cable nature for connection Flexible or rigid

Cable section (Min-Max) 1.5-2.5 mm²

2- way switch 1P 10AX 1 module dark, axial, lightable, automatic terminals
