Light NOW BTicino

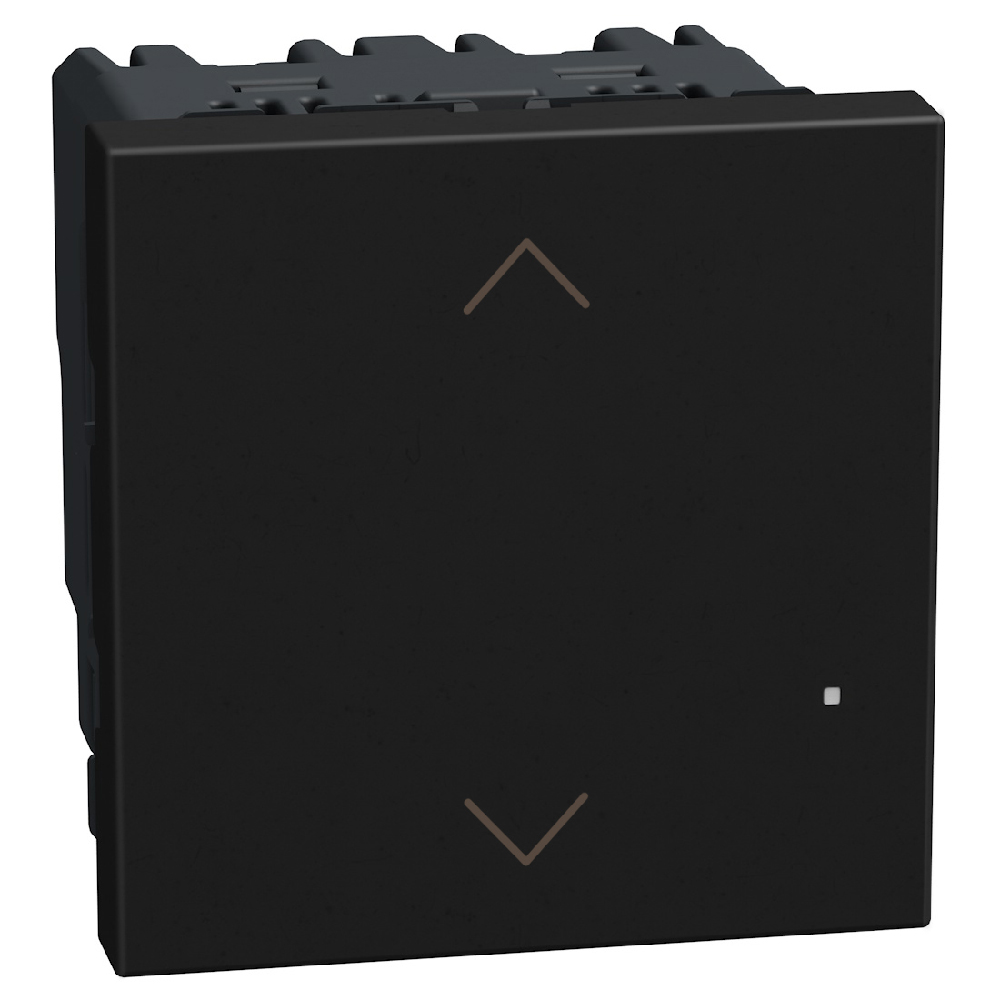

Connected shutter control. Power supply 100-240 Vac - 2 modules - dark

BT-YD4027CM2N | 8005543759424
Connected shutter control. It controls a shutter locally or remotely Compatible with all standard shutter motors (with mechanical or electronic limit switch and maximum power 500 VA), controlled by a wired shutter changeover switch (changeover with the same power supply as the motor). Not compatible with radio controlled or pulse controlled shutter motors. It can be associated to one or more wireless controls. Power supply 100-240 Vac - 2 modules - dark
Description

The connected roller shutter switch allows you to control your roller shutters remotely from your smartphone via the Home + Control app, or by using your voice. Now with roller shutter level control.

Product characteristics
  • Up/down/stop and level control functions
  • Compatible with wired roller shutters with electronic and mechanical end stop. Not compatible with radio-controlled roller shutters
  • LED indicator with locator function which can be activated in the app
  • Dark
Recommendations / Restrictions
  • To connect your roller shutter switch, you first need to purchase and install a Light Now with Netatmo connected starter pack.
Products benefits
Installation
  • The connected roller shutter switch is easily installed in place of an existing flush-mounting switch, and needs a standard-depth flush-mounting box (40 mm). Claw or screw fixing possible
Usage
  • If you wish to manage all your roller shutters centrally, you can pair them with one or more Living Now with Netatmo connected wireless switches
Technical Characteristics
Bus system KNX No
Bus system KNX-RF (Radio Frequency) No
Bus system radio frequency Yes
Bus system LON No
Bus system Powernet No
Other bus systems Zigbee
Radio frequency bidirectional Yes
Mounting method Flush-mounted
Width in number of modular spacings 2
With bus connection No
Bus module detachable No
Local operation/hand operation Yes
With LED indication Yes
Number of inputs 4
Switching current (resistive) 2 A
Max. switching power 500 W
Max. number of venetian-blind outputs 1
With switch function Yes
Type of current AC
Degree of protection (IP) IP20
Min. depth of built-in installation box 50 mm
Width 45 mm
Height 45 mm
Depth 44 mm
Built-in depth 33 mm
degree of impact strength (IK) IK04
Operating / setting temperature (Min-Max) 5-45 °C
Storage temperature (Min-Max) 0-45 °C
Nominal voltage (Min-Max) 100-240 V
Frequency (Min-Max) 50-60 Hz
Standby consumption 2.1 mA
Mandatory neutral Yes
Terminal marking indication Yes
Stress test conformity (1000V) No
Colour Black
RAL-number 9011
Halogen free Yes
Antimicrobial treatment No
Connection type Screwed terminal
Number of terminals 4
Terminals capacity (Min-Max) 1.5-2.5 mm²
Contains Batteries and/or Accumulator No
Connected object Yes
Operating method Zigbee
Application store for download App Store, Google Play Store
Programming way Smartphone apps
With voice command Yes
Programmable Yes
Interoperable connection Protocol Yes
Connectable by Internet box Yes
Compatible voice assistants Google Assistant, Amazon Alexa, Apple Siri
Application name Home + Control
Product use function Shutter management
