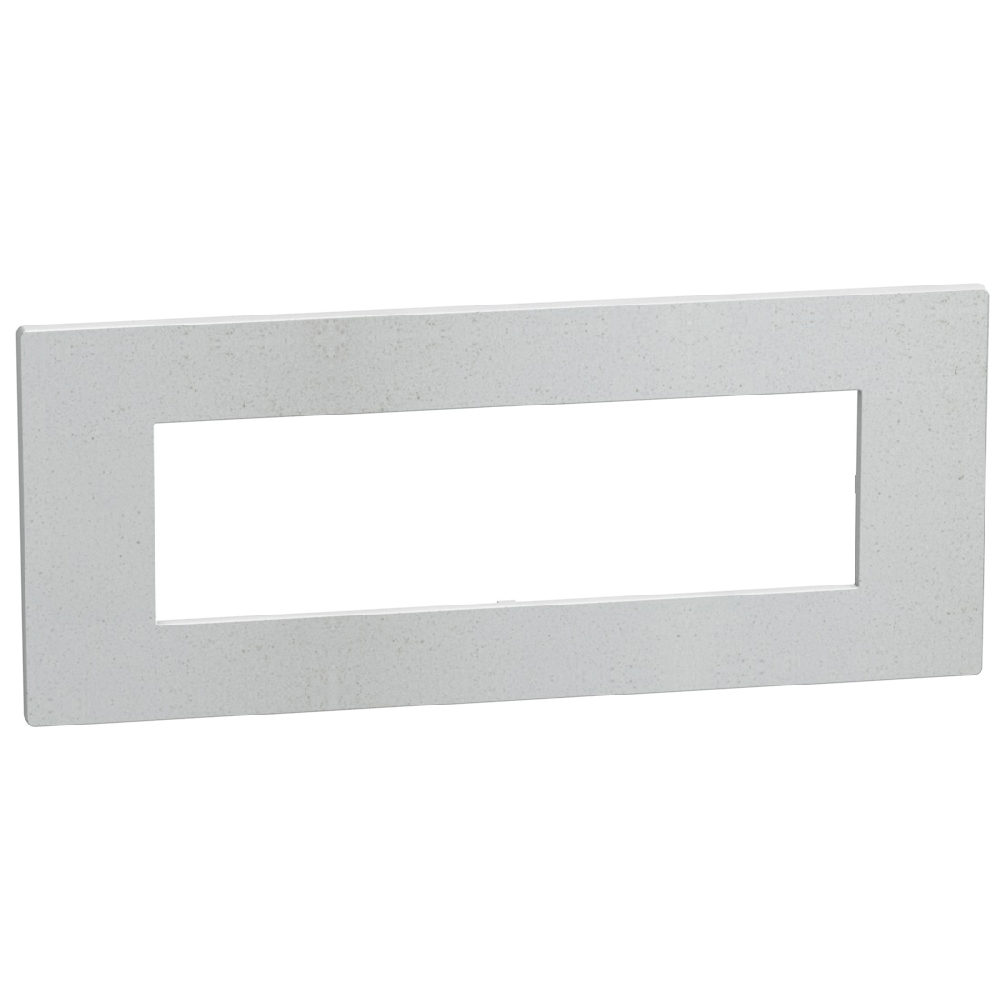

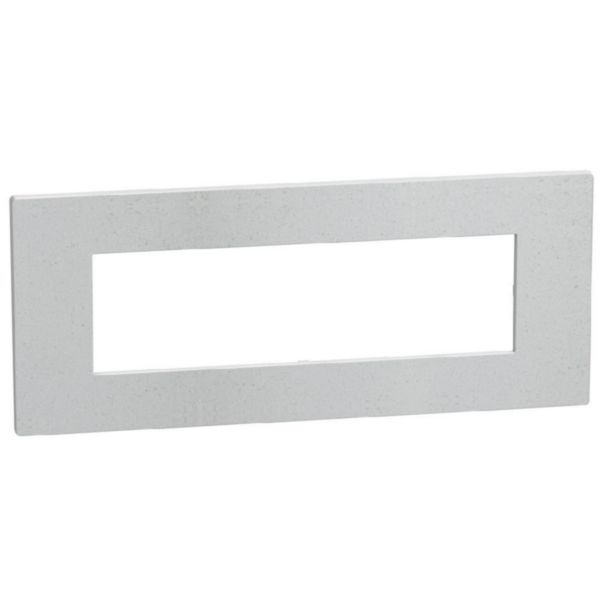

Name: Light Now - Cover plate 7 modules - white mica
Brand: BTicino
SKU: BT-YA4807WM
Availability: InStock

Description

The Light Now collection of coverplates has a silent, distinctive and eternal design. A flatness and monolithic form that balances an minimal design. This 7-modules cover plate is of White Mica on a plastic base.

Product characteristics

Minimal design: A monolithic form that balances an extremely minimal design respecting a traditional composition with sophisticated and precise details.
Floating Frame: the flexible frame at the back of cover plate assures perfect allignement and fitting in any condition. The floating frame gives the possibility of hiding wall defects and any irregularity in flush mounted boxes their positioning and conceal the external collars of plasterboard boxes.
7 modules
Color White Mica: A new story about value through circular materials, giving a second life to waste.
Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues. Light Now coverplates are inserted inside a paper flowplack that report their profile with digital printing for a better recognition.

Recommendations / Restrictions

Indoor use only

Products benefits

Installation

The Light Now cover plate is equipped with a flexible frame, placed on the back of the plate, free to move on the four corners, ensuring an optimal installation.

Usage

Pure design: A minimalistic and pure design where every detail becomes the protagonist. Perfect alignment between cover plates and axial controls. Slightly rounded edges.

Advantages

This Light Now coverplate, takes part in a filed collection of 9 finishes and has a sustainable CMF apporach. With its modern shape and floating frame, it provides perfect alignment to the wall, ensuring a perfect wall-flush
Effects: Circularity, reclaim, reuse. These terms emphasize the identity of this finish, which is emphasized by the final visual effect composed of fragments of the reused waste with a second life.
White Mica: the mica material is a mineral derived from construction waste. The plate is a mix of powder and recycled ABS obtaining an effect with aesthetic appeal, less plastic and openness to reuse

Technical Characteristics

Number of units 1

Mounting direction Horizontal

Number of units horizontal 1

Number of units vertical 1

Number of modules horizontal (module system) 7

Number of modules vertical (module system) 1

With mounting grid No

Flush-mounted installation Yes

Suitable for subfloor installation duct box No

Suitable for wall duct No

Suitable for built-in installation No

Label space/information surface No

Material Plastic

Material quality Thermoplastic

Halogen free Yes

Antimicrobial treatment No

Surface protection Untreated

Surface finishing Matt

Colour White

RAL-number (similar) 7035

Transparent No

With hinged lid No

Degree of protection (IP) Other

degree of impact strength (IK) IK04

Type of fastening Engage (snap)

Width 217 mm

Height 90 mm

Depth 7.5 mm

Built-in width 217 mm

Built-in height 90 mm

Operating / setting temperature (Min-Max) -5-35 °C

Storage temperature (Min-Max) -10-70 °C

Latin wood species Not applicable

Certification of wood (list) Not applicable

Wood Climate area Not applicable
