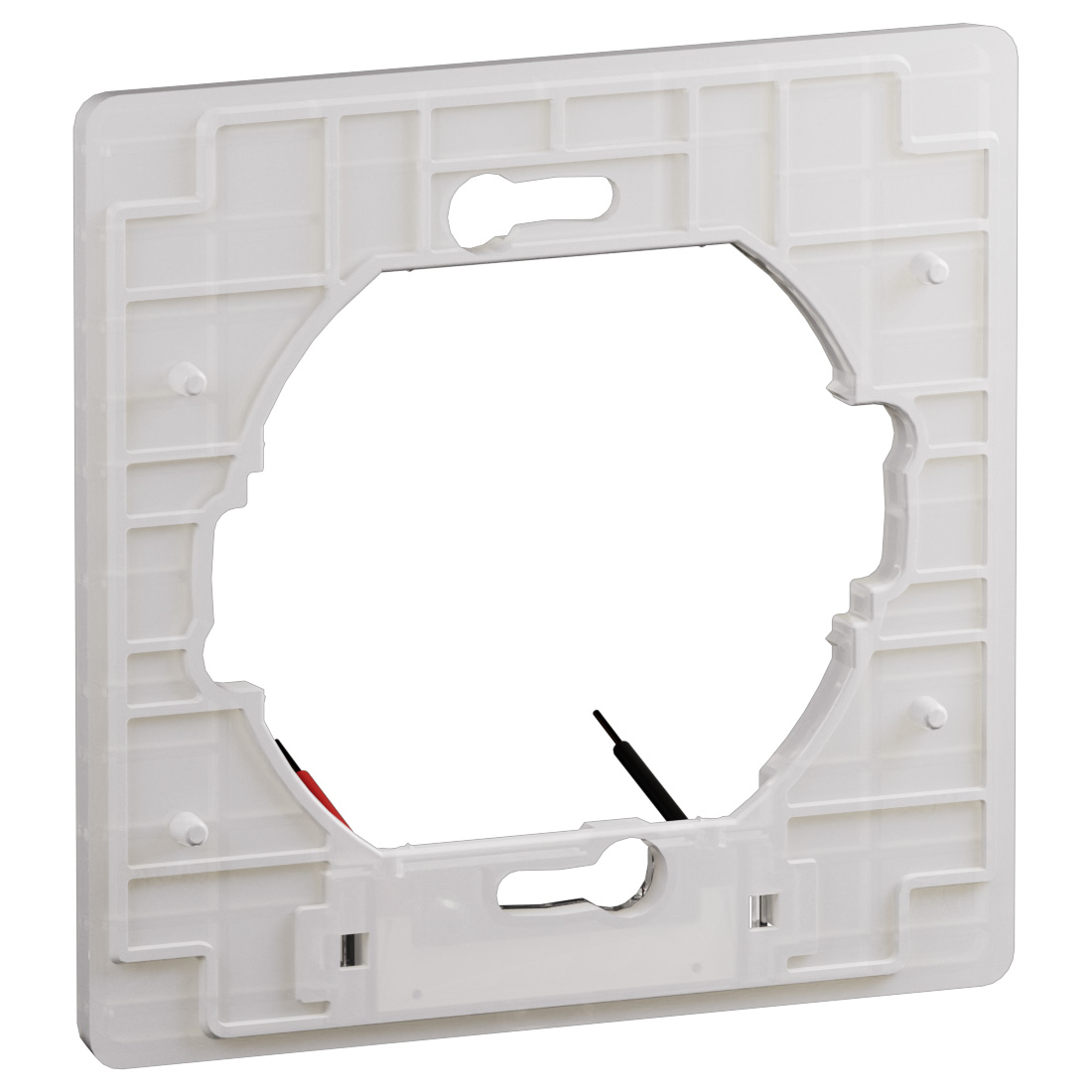

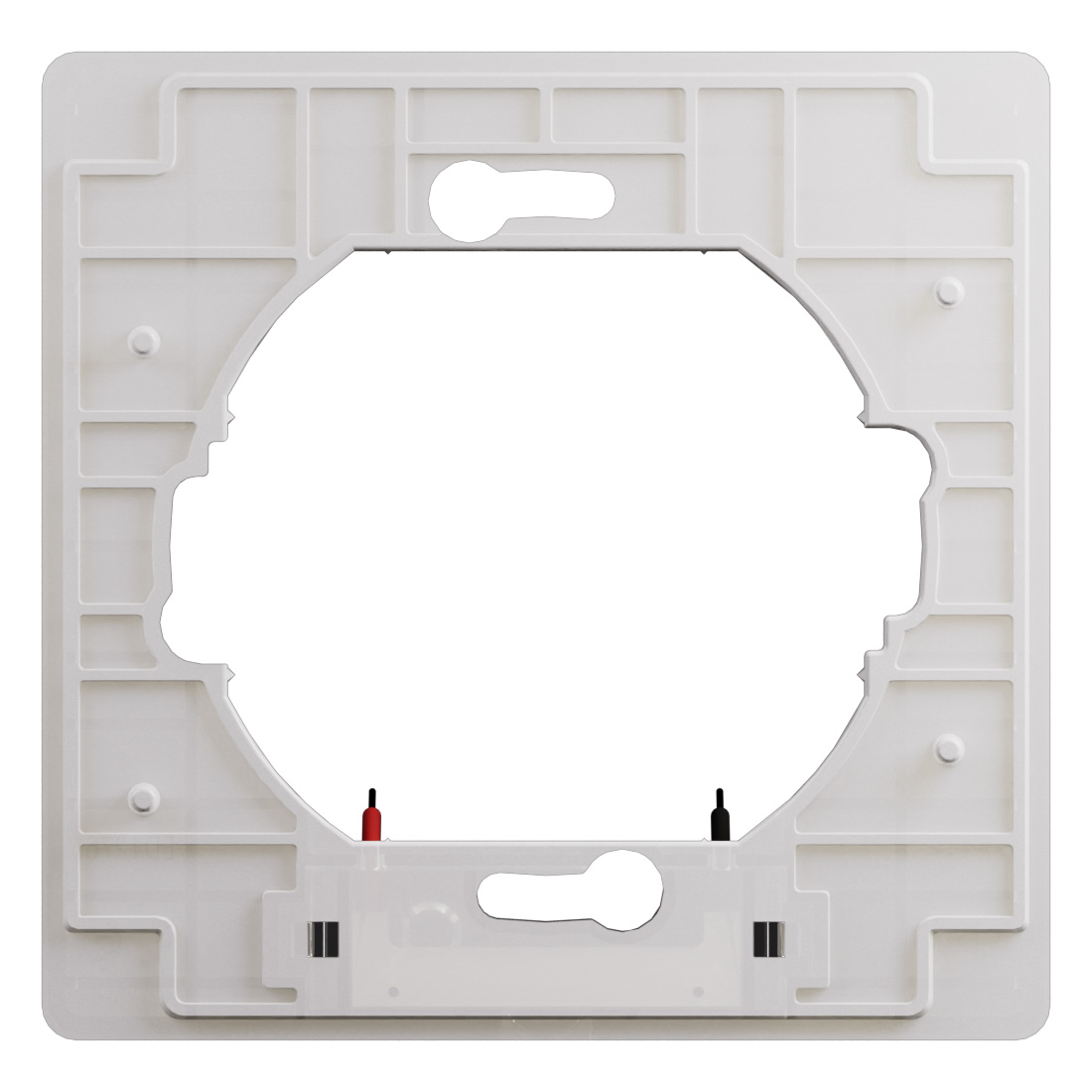

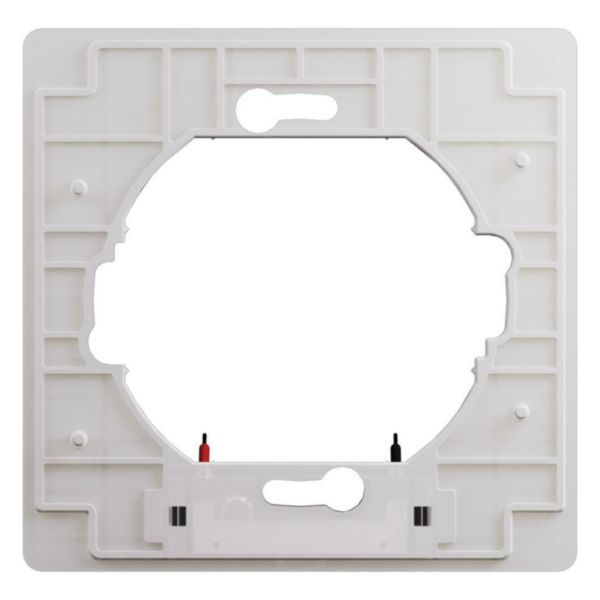

LED Lighting frame 2 modules - 230Vac
BT-Y4702X
|
8005543772157
Description
Lighting frame: A supporting led, optional, and installable even at a later time, allows for elegant illumination at the bottom of the cover plate.
Product characteristics
- A led that can be added to the frame to create an elegant light in the ambient, and to provide discreet guide lighting to improve living in the spaces.
- An optional LED located behind the supporting-frame and in front of the box, that can take on different functions.
- 2 modules
- Color White
- Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
- Indoor use only
Products benefits
Installation
- The optional lighting frame can be easily installed behind the supporting-frame, even at a later time.
Usage
- The lighting frame has different cases of use: Hallway or Entrance: installed at skirting board height, it turns on when it’s dark to assist the movement of people living there; Internal Staircases: installed at skirting board height, it automatically turns on via a motion sensor when people pass by, facilitating movement in the dark; Children’s Bedroom: installed at skirting board height and/or light switch height, it turns on when it’s dark providing a “courtesy light” in the room; Terrace: installed at the switch point for terrace light lights up to highlight the status of the terrace light.
Advantages
- The lighting frame is optional and can be installed later by inserting it between the box and the supporting-frame
- The lighting frame can be used in different modes as needed
- The under-coverplate lights up with minimal thickness
Technical Characteristics
Transformer integrated
No
With integrated voltage decreasing resistor
No
With light source
Yes
With integrated diode
No
Lamp holder
Other
Voltage type for actuating
AC
Lamp type
LED
Connection type auxiliary circuit
Other
Colour light source
Colourless
Type of fastening
Front fastening
Width
86 mm
Height
84 mm
Depth
4 mm
Degree of protection (IP)
IP20
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Supply current (Min-Max)
5-10 A
Frequency (Min-Max)
50-60 Hz
Stress test conformity (1000V)
No
Halogen free
Yes
Prewired
No
