  6. BT-Y4672M2S
  • Actuator/control for shutters to be equipped with 1 or 2 modules Key covers - Power supply 27Vdc - 2 modules
  • Actuator/control for shutters to be equipped with 1 or 2 modules Key covers - Power supply 27Vdc - 2 modules
  • Actuator/control for shutters to be equipped with 1 or 2 modules Key covers - Power supply 27Vdc - 2 modules
Light NOW BTicino

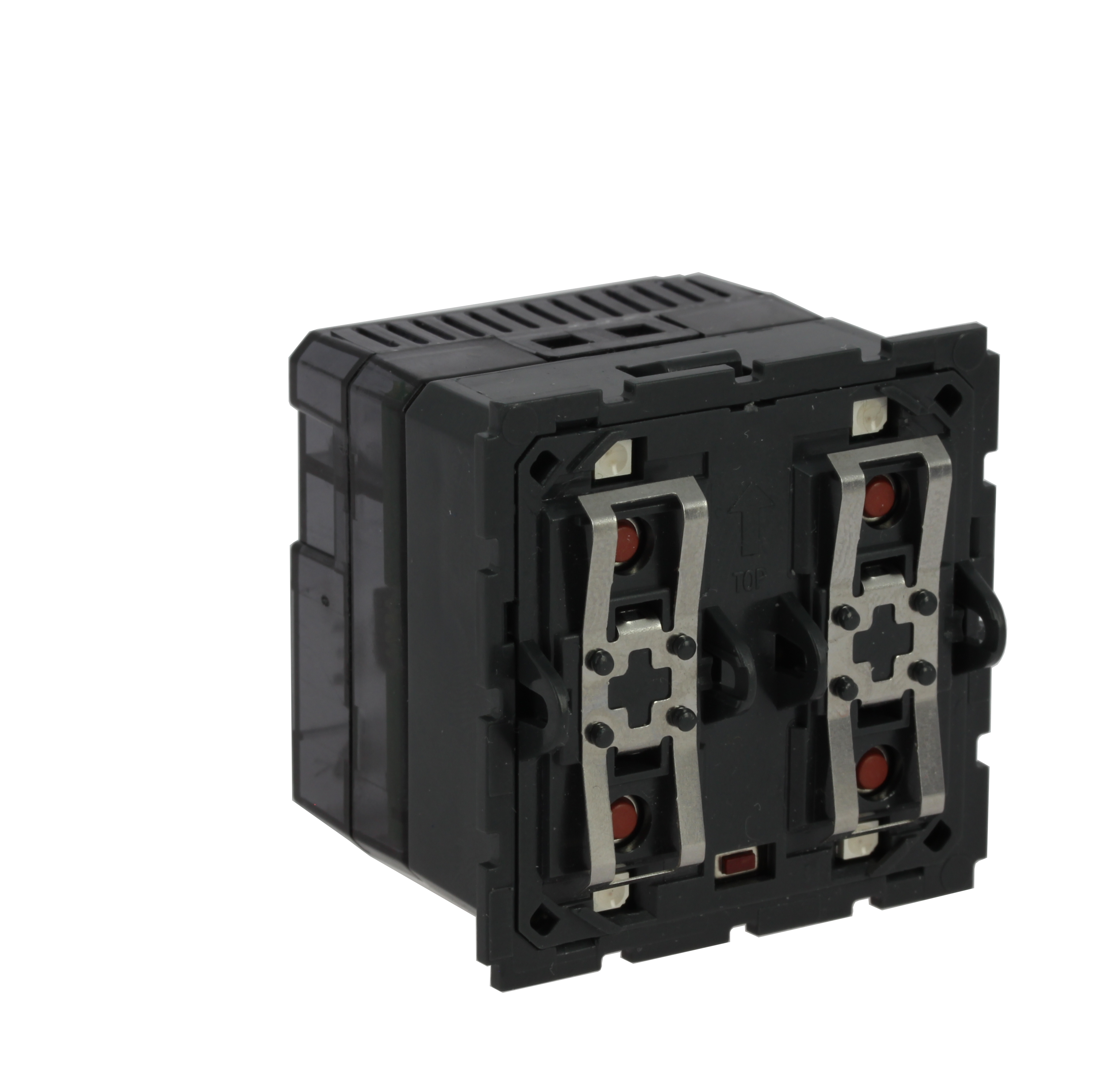

Actuator/control for shutters to be equipped with 1 or 2 modules Key covers - Power supply 27Vdc - 2 modules

BT-Y4672M2S | 8005543762295
Actuator/control for shutter with relay 2A 250Vac. In addition to the monostable and bistable UP/ DOWN function, the actuator also places the rolling shutter in a stored (PRESET) position. The device can be also configured to manage a remote actuator - Power supply 27Vdc - 2 modules. To be completed with 1 or 2 modules Key covers, support frames and plates.
Description

Shutter actuator with relay 2 A 250 VA. In addition to the monostable and bistable UP/DOWN function, the actuator also places the rolling shutter in a stored (PRESET) position. The device can be also configured to manage a remote actuator

Product characteristics
  • 2 modules. To be completed with 1 or 2- modules key covers, support frames and plates.
  • 2 module
  • Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
  • Indoor usage only
Products benefits
Installation
  • in standard boxes like wiring devices range
Usage
  • All in one unique tool. H+P is the tool dedicated to installer which simplifies the configuration process of the command
Advantages
  • The control experience is now improved with the management of multiple functions (up to 4 functions on 2 modules) over the same modularity following market trends and the advanced home automation systems.Functions can be combined in different ways and personalized with new dedicated key covers.
Technical Characteristics
Bus system KNX No
Bus system KNX-RF (Radio Frequency) No
Bus system KNX Secure No
Bus system KNX Secure-RF (Radio Frequency) No
Bus system radio frequency No
Bus system LON No
Bus system Powernet No
Other bus systems Other
Radio frequency bidirectional No
Number of linkable devices 1
Mounting method Flush-mounted
Width in number of modular spacings 2
Local operation/hand operation Yes
With LED indication Yes
Number of digital inputs 3
Suitable for C-load No
Max. number of switching contacts 2
Max. switching current 2 A
Rated operating voltage (Min-Max) 110-230 V
Different phases connectable Yes
With bus connection Yes
Bus module detachable No
Min. depth of built-in installation box 43 mm
Modular expandability No
Degree of protection (IP) IP20
Width 45 mm
Height 45 mm
Depth 40 mm
degree of impact strength (IK) IK04
Operating / setting temperature (Min-Max) -5-36 °C
Storage temperature (Min-Max) -10-71 °C
Voltage type AC
Terminal marking indication Yes
Type of load Universal and LED Retrofit
Halogen free No
Connection type Screwed terminal
Number of distribution blocks 4
Terminals capacity (Min-Max) 0.34-2.5 mm²
Connection type Not applicable
Label space/information surface No
Fitted with USB plug No
Addressable Yes
Connected object No
With voice command No
Programmable Yes
Interoperable connection Protocol Yes
Connectable by Internet box No
Product use function Lighting management
Documentation
2 documents
Instruction Use
LE14827AA | PDF (2.2 MB) | IT · EN · FR · DE · ES · PT · NL
Technical Sheet
ST-00002499-EN | PDF (590 KB) | EN
5 documents
Brochure
BRO-LHNOW-2M | PDF (10.3 MB) | EN
Brochure
BRO-LHNOW-3M | PDF (13.1 MB) | EN
B2B Documents
CAT-LHNOW-2M | PDF (25.2 MB) | EN
B2B Documents
CAT-LHNOW-3M | PDF (21.5 MB) | EN
B2B Documents
PRE-LHNOW | PDF (2.4 MB) | EN
