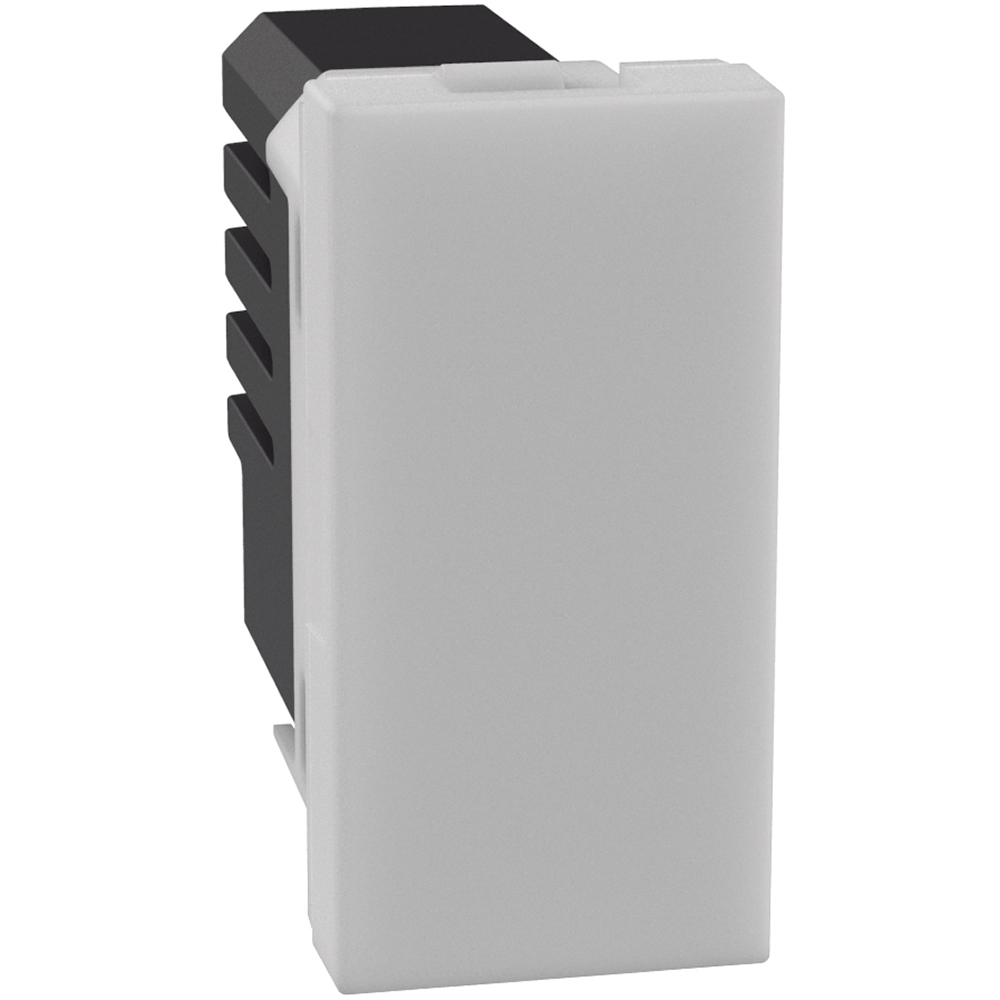

LED safety lamp - 1 module
BT-Y4381
|
8005543751749
Description
The Light Now LED safety light automatically switches in case of power failure - 2 hours autonomy - not removable.
Product characteristics
- Maximum cable cross section 1 x 1.5 mm2 - 2400 mcd light intensity - 120 ° emission angle
- led lamp 1m
- 1 module
- Color Neutral
- Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
- Indoor use only
Products benefits
Installation
- It is used in environments where it is not possible to install the extractable torch either due to installation lack of space problems or in transit areas where extractability is not a required function
Usage
- Indicates the path to the exit or to the switchboard in the event of a blackout
Advantages
- 120° luminosity angle and 2400 mcd light intensity
- It is coordinated with the Light Now aesthetic
Technical Characteristics
Suitable for wall mounting
Yes
Suitable for suspended mounting
No
Suitable for ceiling mounting
No
Suitable for built-in mounting
Yes
Suitable for surface mounting
No
Suitable for light line configuration
No
Suitable for workplace according to EN 12464-1
No
Lamp type
LED not exchangeable
With light source
Yes
Suitable for number of light sources
1
Lamp holder
Other
Housing material
Plastic
Surface protection housing
Untreated
Housing colour
Grey
Material cover
Plastic, opal
Type of grid
Matt
Voltage type
AC
Nominal voltage (Min-Max)
230-250 V
Nominal current (Min-Max)
15-25 mA
Type of control gear
LED operating device voltage-controlled
With control gear
No
Exchangeable control gear
No
Dimmable
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DALI-2
No
Dimming DMX
No
Dimming DSI
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Dimming programmable
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Light distributor
Diffuser lens/optic/panel
Light distribution
Symmetric
Beam angle
> 80° - Extreme wide beam
Colour consistency (McAdam ellipse)
SDCM1
Light outlet
Direct
Degree of protection (IP), rear side
IP40
degree of impact strength (IK)
IK04
Protection class according to IEC 61140
None
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
No
Rated ambient temperature according to IEC 62722-2-1 (Min-Max)
-5-35 °C
Luminous flux in emergency mode
247 lm
Suitable for emergency lighting
Yes
With movement sensor
No
With light sensor
No
Covering of the luminaire with thermally insulating material possible
No
With air slots
Yes
Suitable for lamp power (Min-Max)
0.1-0.1 W
Luminaire efficacy (Min-Max)
0-0 lm/W
Max. system power
0.2 W
Rated luminous flux according to IEC 62722-2- 1 (Min-Max)
247-247 lm
Colour of light
White
Colour temperature (Min-Max)
4000-5500 K
Colour rendering index CRI
80-89
Constant light output (CLO)
No
Width
22.5 mm
Height/depth
45 mm
Length
53 mm
Built-in length
45 mm
Built-in width
22.5 mm
Built-in height/depth
45 mm
Type of wiring
Ending
Conductor cross section
1.5 mm²
Connection type
Screwed terminal
Photobiological safety according to EN 62471
Other
Connectable conductor cross section (Min-Max)
1.5-2.5 mm²
Luminous intensity (Min-Max)
0-0 cd
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Frequency (Min-Max)
50-60 Hz
Standby consumption
137 mA
Mandatory neutral
No
RAL-number
9003
Halogen free
Yes
Antimicrobial treatment
No
Cable nature for connection
Flexible or rigid
With socket outlet
No
Fitted with rainproof plate protection
No
With complemantary luminous signal
No
Supplied remote control
No
Maximum Input cable diameter
2.5 mm
Vertical fixing center distance (Min-Max)
3-3.2 mm
Horizontal fixing center distance (Min-Max)
3.5-3.7 mm
Cable support
Screw cable clamp
Auto switch
No
Control mode
Wired
Addressable
No
Connected object
No
Programming way
Not applicable
With voice command
No
Programmable
No
Interoperable connection Protocol
No
Connectable by Internet box
No
Product use function
Lighting management
