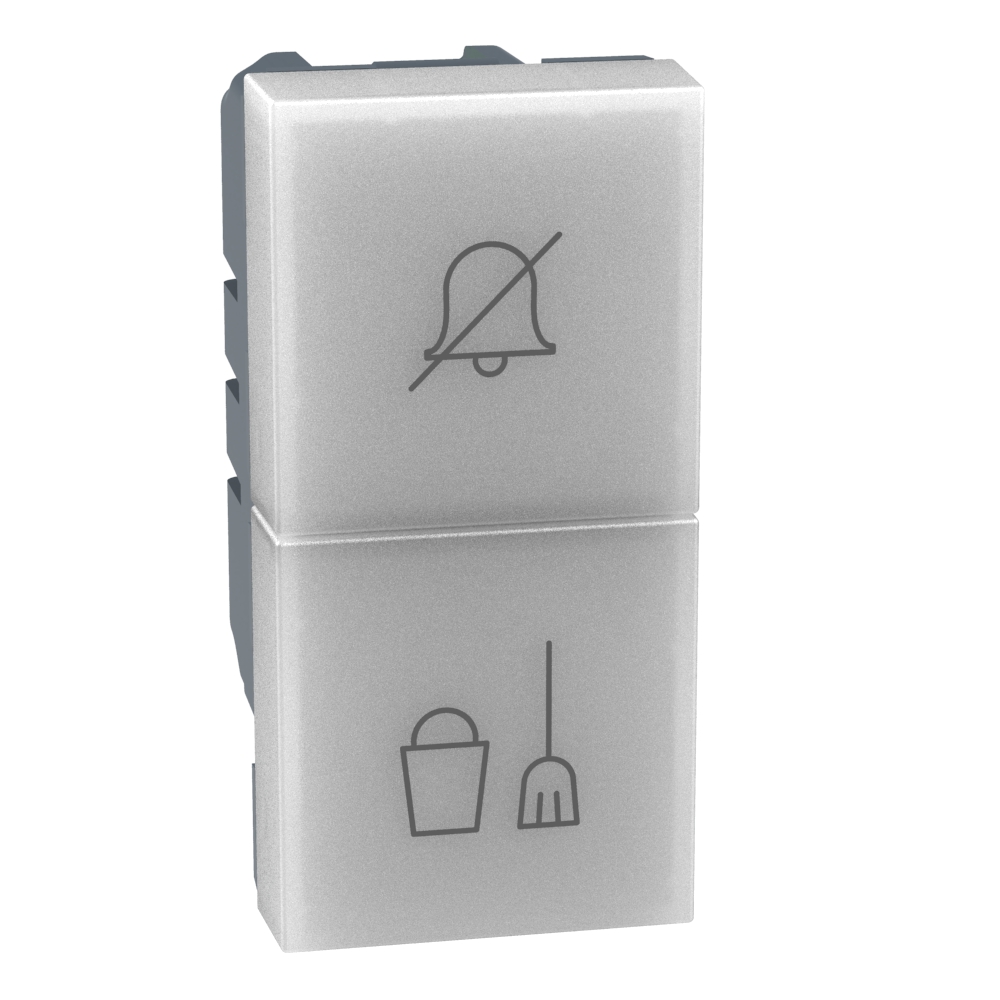

Light indicator unit “do not disturb / make up the room” - 1 module
BT-Y4373
|
8005543757383
Description
The Light Now lampholder has two integrated LEDs, green and red. It can be used as optical signaling outside the room with dual indication: do not disturb and tidy up the room - LEDs are not replaceable.
Product characteristics
- Allows light signaling outside the room door (DND MUR)
- hotel lampholder, power supply 127/230 Va.c.
- 1 module
- Color Neutral
- Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
- Indoor use only
Products benefits
Installation
- To be used with changeover switch for hotel room
Usage
- Once activated,the switch inside the room, this device indicates if the service must not disturb (DND) or is required to make up the room (MUR)
Advantages
- Hight technical performance
- It is coordinated with the Light Now aesthetic
Technical Characteristics
Assembly arrangement
Complete device
Number of modules (module system)
1
Lamp holder
None
With light source
Yes
Lamp type
LED not exchangeable
With flashlight
No
With fixed symbol/imprint
No
With exchangeable symbol
No
Application as button
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7030
Transparent
No
Colour light source
Red/green
Suitable for degree of protection (IP)
IP20
Nominal voltage
230 V
Max. lamp power
0.5 W
Device width
22.5 mm
Device height
45 mm
Device depth
38 mm
Min. depth of built-in installation box
40 mm
Built-in depth
30 mm
degree of impact strength (IK)
IK04
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Voltage type
AC
Frequency (Min-Max)
50-60 Hz
Mandatory neutral
No
Terminal marking indication
No
Stress test conformity (1000V)
No
Antimicrobial treatment
No
Connection type
Screwed terminal
Terminals capacity (Min-Max)
1.5-2.5 mm²
Cable nature for connection
Flexible or rigid
Cable section (Min-Max)
1.5-2.5 mm²
Label space/information surface
No
