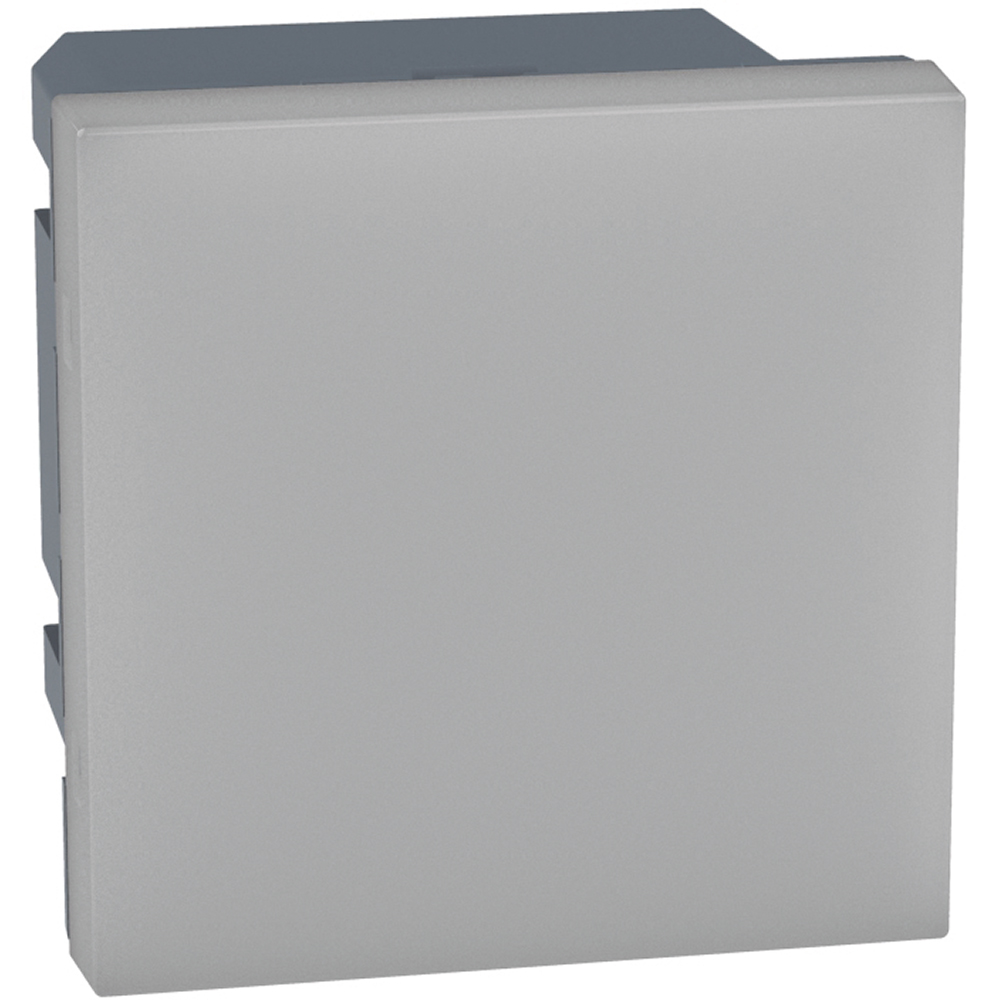

Flush Light indicator unit - red, green, blue, white colour - 2 modules
BT-Y4370V12
|
8005543756119
Description
The Light Now lampholder has four integrated LEDs, red, green, blue and white color.
Product characteristics
- Allows light signaling
- lampholder power supply 12/24V
- 2 modules
- Color Neutral
- Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
- Indoor use only
Products benefits
Installation
- Use with changeover switch for hotel room
Usage
- If activated the switch inside the room, the indicator will be illuminated in the "do not disturb" or "rearrange the room" signal
Advantages
- It is coordinated with the Light Now aesthetic
Technical Characteristics
Assembly arrangement
Complete device
Number of modules (module system)
2
Lamp holder
None
With light source
Yes
Lamp type
LED not exchangeable
With flashlight
No
With fixed symbol/imprint
No
With exchangeable symbol
No
Application as button
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7030
Transparent
No
Colour light source
Other
Suitable for degree of protection (IP)
IP20
Nominal voltage
24 V
Max. lamp power
0.5 W
Device width
45 mm
Device height
45 mm
Device depth
38.5 mm
Min. depth of built-in installation box
40.5 mm
Built-in depth
30.5 mm
degree of impact strength (IK)
IK04
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Voltage type
AC
Frequency (Min-Max)
50-60 Hz
Mandatory neutral
No
Terminal marking indication
No
Stress test conformity (1000V)
No
Antimicrobial treatment
No
Connection type
Screwed terminal
Terminals capacity (Min-Max)
1.5-2.5 mm²
Cable nature for connection
Flexible or rigid
Cable section (Min-Max)
1.5-2.5 mm²
Label space/information surface
No
