Light NOW BTicino

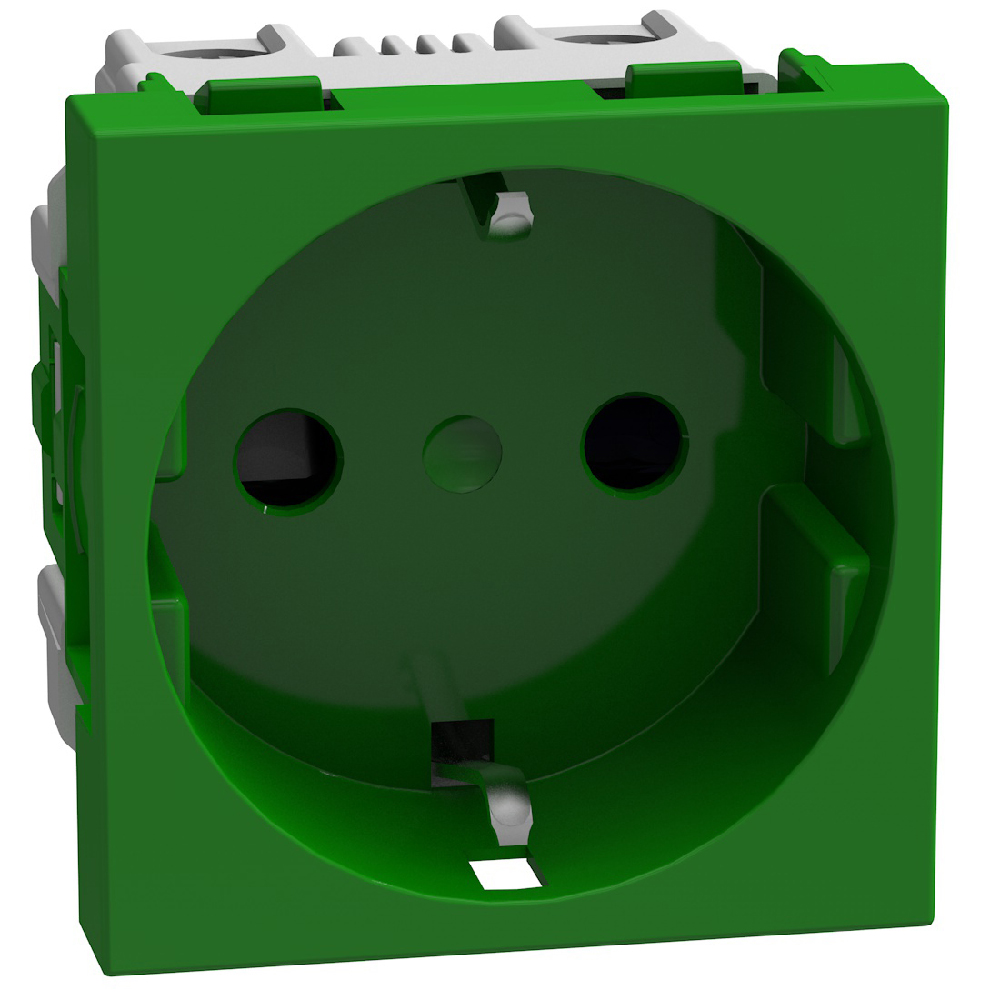

German standard socket 2P+E 16 A 250 V - 2 modules - green

BT-Y4141G | 8005543751176
German standard 2P+E 16 A 250 V socket with earth side contacts - shielded tulip contacts - with screw terminals - 2 modules - green
Description

This socket outlet allows to connect an electric or electronic device with plugs 16A German standard, child protection shutters, color green

Product characteristics
  • German std, v/p terminal
  • 16A
  • 2 modules
  • Color Green
  • Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
  • Indoor use only
Products benefits
Installation
  • Easy to install and remove
Usage
  • Child protection shutter
Advantages
  • Hight technical performance
Technical Characteristics
Model Socket outlet with protective contact CEE 7/3 (type F)
Concurrently switching neutral conductor No
Protective contact Other
Number of active contacts (round) 1
Number of active contacts (flat) 0
Number of active contacts (square) 0
Assembly arrangement Basic element with central cover plate
With complemantary luminous signal No
Number of ports USB-A 0
Number of ports USB-C 0
Number of socket outlets 1
Socket outlets phase-separated No
Number of modules (module system) 2
Number of socket outlets switchable 0
Number of phases 1
Imprint/indication None
Connection type Screwed terminal
With hinged lid No
With enhanced contact protection Yes
Label space/information surface No
Colour Green
RAL-number (similar) 6005
Metallic colour No
Transparent No
Lockable No
Eject-mechanism No
Insulated mounting No
With function lighting No
With orientation lighting No
Overvoltage protection No
Fault current protection No
With miniature fuse No
Special power supply None
Mounting method Flush-mounted
Type of fastening Snap mounting (engagement)
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Untreated
Surface finishing Glossy
Antimicrobial treatment No
With loop through function Yes
Number of loop throughs 1
With on/off switch No
Colour of switch operator Grey
Rotated central insert No
Nominal current 16 A
Nominal voltage 250 V
Degree of protection (IP), connected plug IP20
Frequency (Min-Max) 50-60 Hz
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK04
Device width 45 mm
Device height 45 mm
Device depth 41.5 mm
Min. depth of built-in installation box 41.5 mm
Compatible with Apple HomeKit No
Compatible with Amazon Alexa No
Compatible with Google Assistant No
IFTTT support available No
With Wi-Fi signal repeater No
With built-in bluetooth speaker No
For heavy conditions according to VDE No
Compliant with UK Building Regulations Part M No
Built-in depth 31.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Power Delivery No
Terminal marking indication No
Prewired No
Terminals capacity (Min-Max) 1.5-2.5 mm²
Cable nature for connection Flexible or rigid
Cable section (Min-Max) 1.5-2.5 mm²
Cable support Screw cable clamp
Connected object No
Application store for download Not applicable
Programming way Not applicable
With voice command No
Programmable No
Interoperable connection Protocol No
Connectable by Internet box No
Product use function Energy distribution
