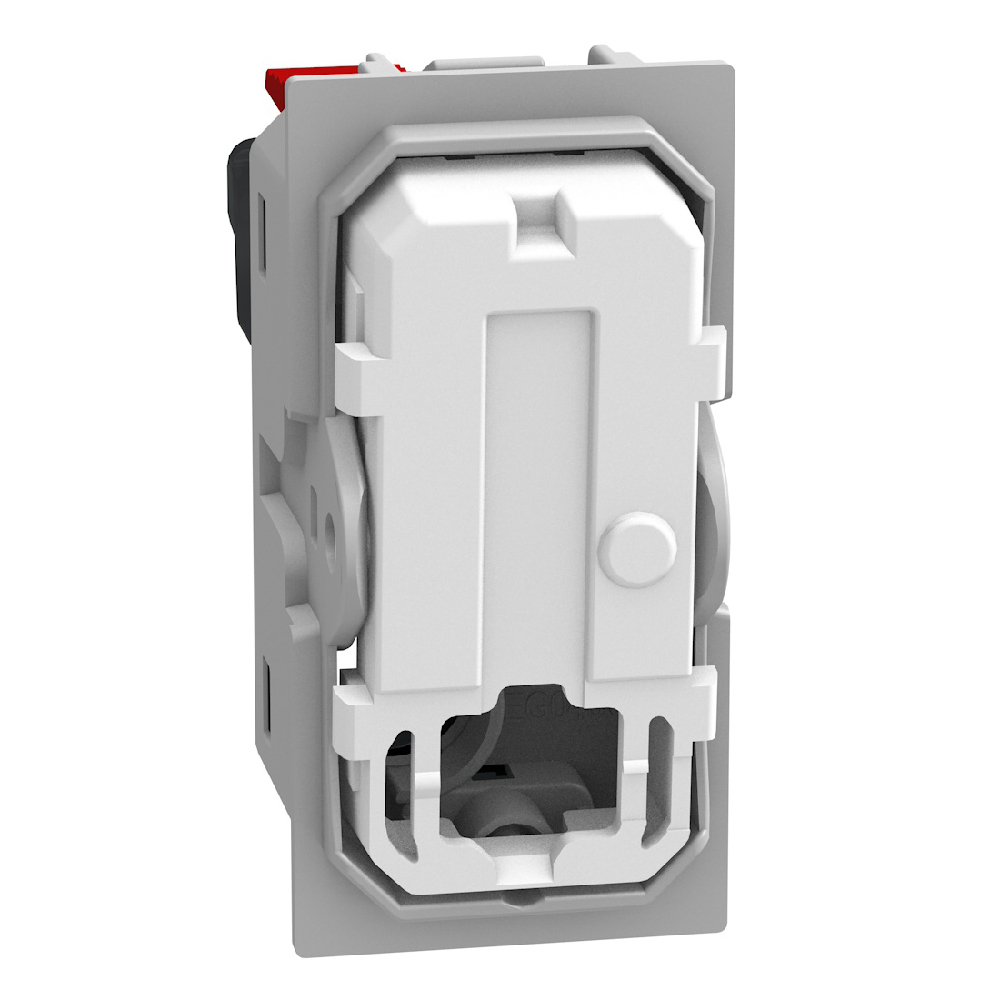

1-way switch 1P 10AX 1 module, neutral, rocker, lightable, automatic terminals
BT-Y4001A
|
8005543758007
Description
1way switch 1P 10AX 1m, rocker, lightable
Product characteristics
- 1way switch, automatic terminal
- 1P 10 AX 250 Va.c.
- 1 module
- Color Neutral
- Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
- Indoor use only
Products benefits
Installation
- Easy to install and remove
Usage
- It can be used as a simple switch able to manage all light loads(LED included).
Advantages
- Hight technical performance
Technical Characteristics
Wiring system
Switch 1-pole
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
1
Push button switch
Yes
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Antimicrobial treatment
No
Surface protection
Untreated
Surface finishing
Glossy
Colour
Grey
RAL-number (similar)
7030
Colour of switch operator
White
Label space/information surface
No
Lighting
No
Function lighting
Orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP20
degree of impact strength (IK)
IK04
Nominal voltage
250 V
Rated current
10 A
Switching current for fluorescent lamps
10 AX
Monitoring contact
No
Connection type
Push-in clamp
Heating switch
No
Washing machine switch
No
Device width
22.5 mm
Device height
45 mm
Device depth
39 mm
Built-in depth
28 mm
Min. depth of built-in installation box
38 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Voltage type
AC
Frequency (Min-Max)
50-60 Hz
Mandatory neutral
No
Terminal marking indication
No
Terminals capacity (Min-Max)
1.5-2.5 mm²
Cable nature for connection
Flexible or rigid
Cable section (Min-Max)
1.5-2.5 mm²
