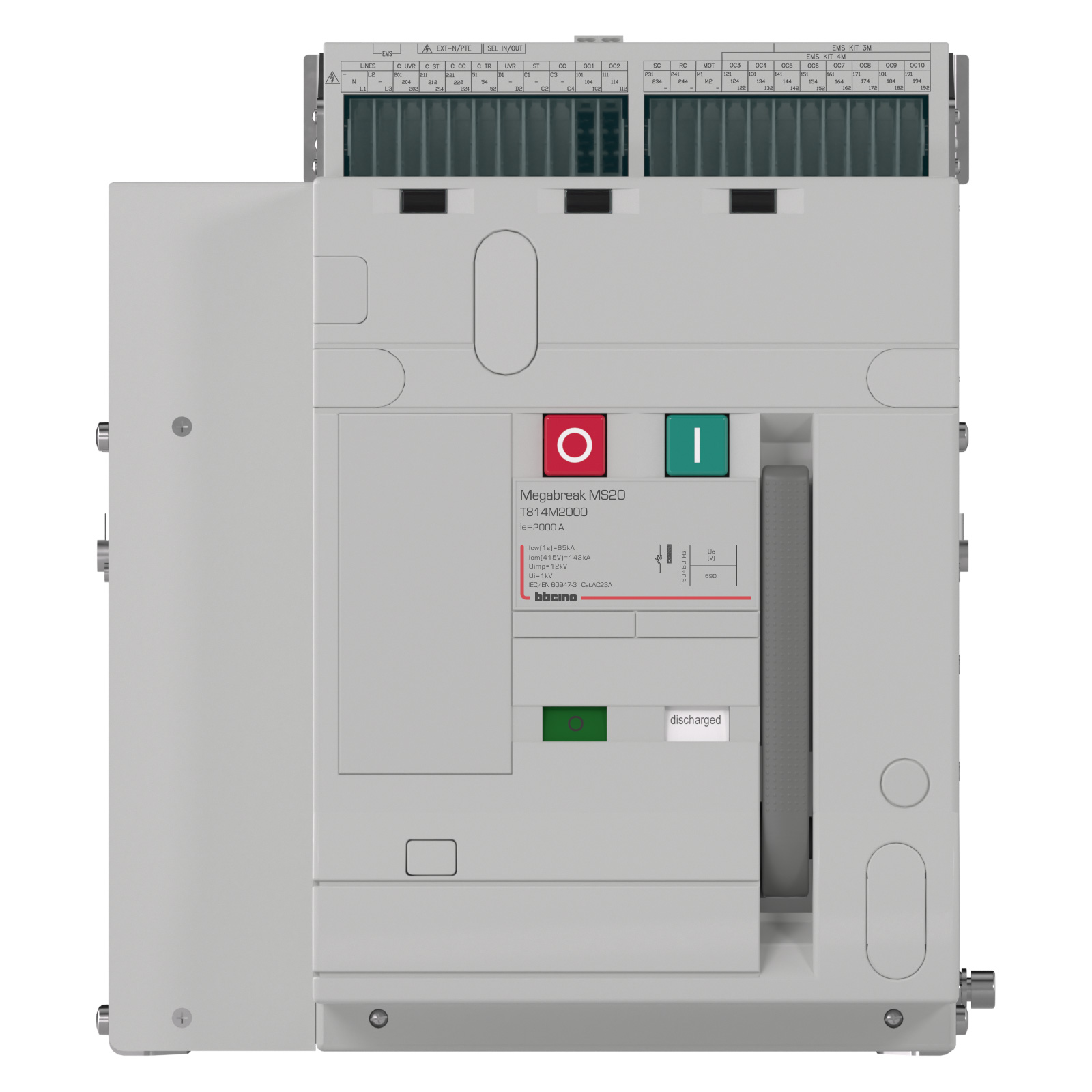

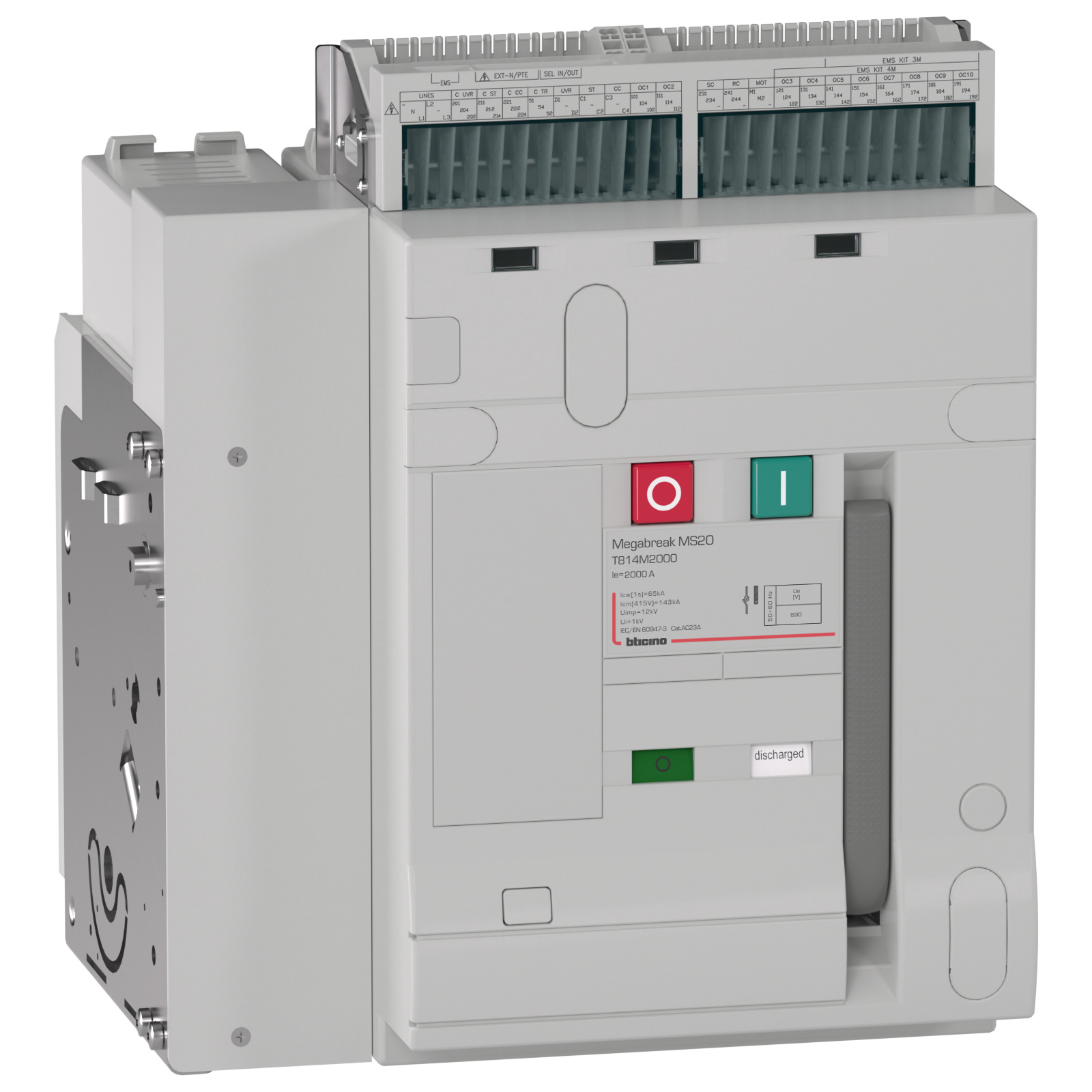

DIsconnector MEGABREAK MS20 fixed 4P Frame 1 - 2000A
BT-T814M2000
|
8005543707869
Description
Megabreak trip-free switches for on-load circuit breaking and isolation of low voltage electrical circuits up to 2500A.
Product characteristics
- According to EN/IEC standard 60947-3, suitable for commercial and middle power installations
- Rated insulation voltage of 1000V. Rated impulse withstand voltage of 12kV
- Equipped with auxiliary contacts (2 NO/NC, expandable up to 10) door sealing and rear terminals for horizontal connections with bars
- Can be equipped with auxiliaries, locking accessories and connection accessories (spreaders, rear terminals, insulation shields, interlocks)
Products benefits
Installation
- Can be mounted on plate in Legrand cabinets and enclosures. Can be converted in a draw-out version with base and conversion kit
Technical Characteristics
Rated permanent current Iu
2000 A
Rated voltage (Min-Max)
230-690 V
Device construction
Built-in device fixed built-in technique
Integrated earth fault protection
No
Type of electrical connection of main circuit
Bolt connection
Suitable for DIN rail (top hat rail) mounting
No
DIN rail (top hat rail) mounting optional
No
Number of auxiliary contacts as normally closed contact
2
Number of auxiliary contacts as normally open contact
2
Number of auxiliary contacts as change-over contact
2
With switched-off indicator
Yes
With integrated under voltage release
No
Number of poles
4
Position of connection for main current circuit
Back side
Type of control element
Push button
Complete device with protection unit
No
Motor drive integrated
No
Motor drive optional
Yes
Degree of protection (IP)
IP20
Width
358 mm
Height
414 mm
Depth
354 mm
degree of impact strength (IK)
Not applicable
Operating / setting temperature (Min-Max)
-25-70 °C
Storage temperature (Min-Max)
-25-85 °C
Voltage type
AC
Frequency (Min-Max)
50-60 Hz
Electric supplying direction
By the rear of the product
Terminal marking indication
No
Colour
Grey
RAL-number
7035
Halogen free
Yes
Terminals capacity (Min-Max)
50-2400 mm²
Cable nature for connection
Flexible or rigid
Label space/information surface
No
Contains Batteries and/or Accumulator
No
Documentation
1 documents
Technical Sheet
IDP001941EN/01 | PDF (3.1 MB) | EN
