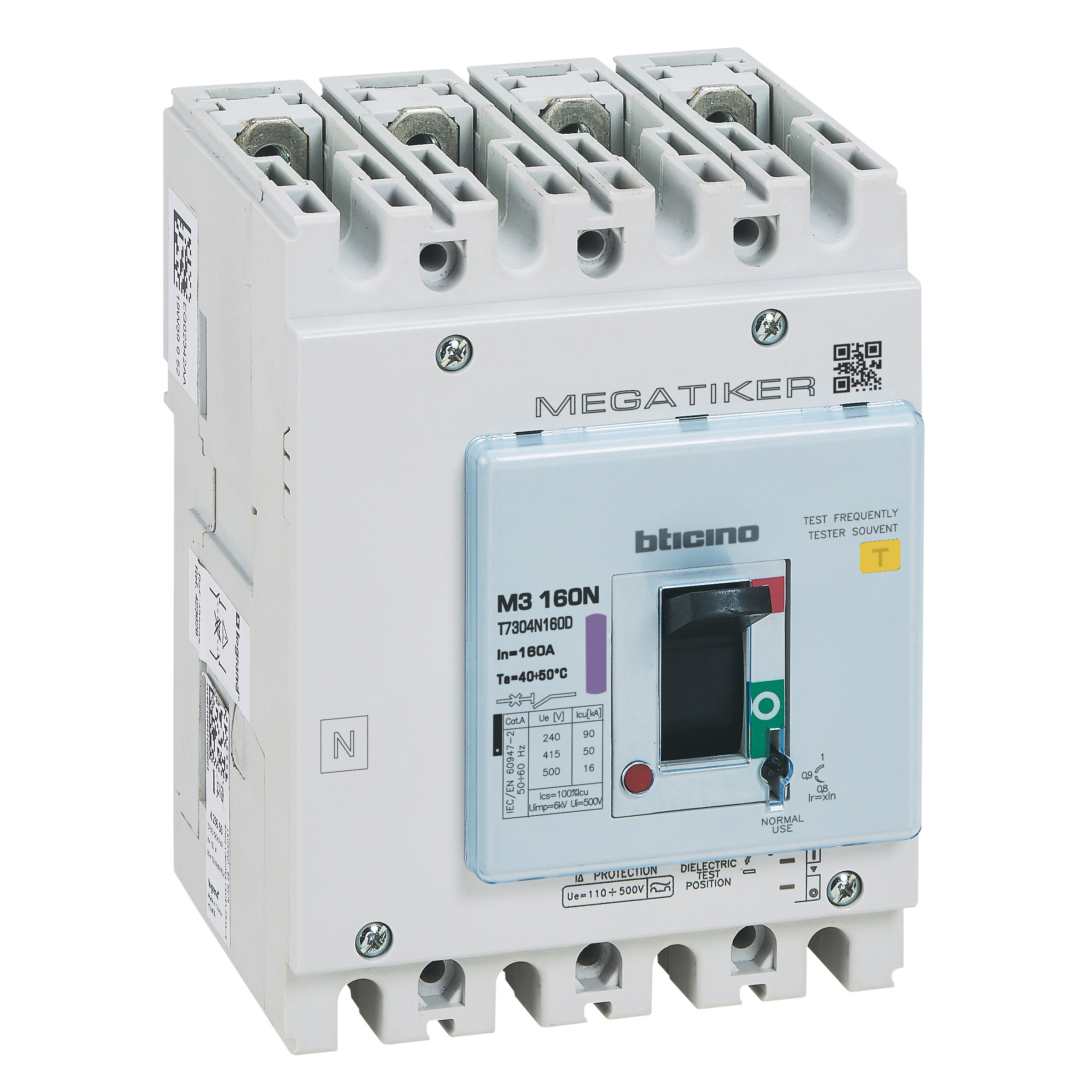

  • M3 160N - thermal-magnetic Mccb with residual current protection integrated 4P - Icu= 50kA - In= 160A
MEGATIKER BTicino

M3 160N - thermal-magnetic Mccb with residual current protection integrated 4P - Icu= 50kA - In= 160A

BT-T7304N160D | 8005543715680
M3 160N - thermal-magnetic circuit breaker with earth leakage protection integrated 4P - Icu= 50kA - In= 160A
Description

Megatiker M3 160, moulded case circuit breaker for switching, control isolation and protection of low voltage lines. Protects a circuit from damage caused by excess current from an overload or short circuit

Product characteristics
  • Breaking capacity of 50kA, according to EN/IEC standard 60947-2, suitable for protection of high power industrial installations
  • Rated insulation voltage of 500V - Rated impulse withstand voltage of 6kV
  • Protection unit with rotary knobs for manual adjustment:- thermal protection with manual adjustment range of 0.8 to 1.0 of the rated current- magnetic protection fixed at 10 time the rated current
  • Supplied with fixing screws, screws for connections and insulated shields (phase barriers)
  • Can be equipped with auxiliaries (shunt release, undervoltage release, auxiliary contact), rotary handle, spreader, rear terminals, locking accessory, cage terminals (Al max. 80A) and high capacity cage terminals (for Cu/Al cables, with Cu and Al, 1x95mm² max. for flexible cables and 1x 120mm² max. for rigid cables)
Products benefits
Installation
  • Can be mounted on plate in Legrand cabinets and enclosures
Advantages
  • A unique size for all versions (thermal magnetic release with or without earth leakage protection)
  • A range completely suitable for high power application with high performance breakers in compact dimensions
Technical Characteristics
Rated permanent current Iu 160 A
Rated voltage (Min-Max) 220-690 V
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz 70 kA
Overload release current setting (Min-Max) 125-160 A
Adjustment range undelayed short-circuit release (Min-Max) 1280-1920 A
Device construction Built-in device fixed built-in technique
Integrated earth fault protection No
Type of electrical connection of main circuit Screw connection
Suitable for DIN rail (top hat rail) mounting No
DIN rail (top hat rail) mounting optional No
Number of auxiliary contacts as change-over contact 2
With switched-off indicator Yes
With integrated under voltage release No
Number of poles 4
Position of connection for main current circuit Front side
Type of control element Wing knob
Complete device with protection unit Yes
Motor drive integrated No
Motor drive optional No
Degree of protection (IP) IP30
Width 100 mm
Height 135 mm
Depth 86 mm
degree of impact strength (IK) Not applicable
Operating / setting temperature (Min-Max) -25-70 °C
Storage temperature (Min-Max) -40-85 °C
Voltage type AC
Frequency (Min-Max) 50-60 Hz
Electric supplying direction By the top or bottom
Terminal marking indication No
Colour Grey
RAL-number 7035
Halogen free Yes
Terminals capacity (Min-Max) 2.5-50 mm²
Cable nature for connection Flexible or rigid
Label space/information surface No
Contains Batteries and/or Accumulator No
Documentation
1 documents
Technical Sheet
IDP001680EN/04 | PDF (4.8 MB) | EN
1 documents
Catalog Commercial Page
3244051 | PDF (28.2 MB) | EN
