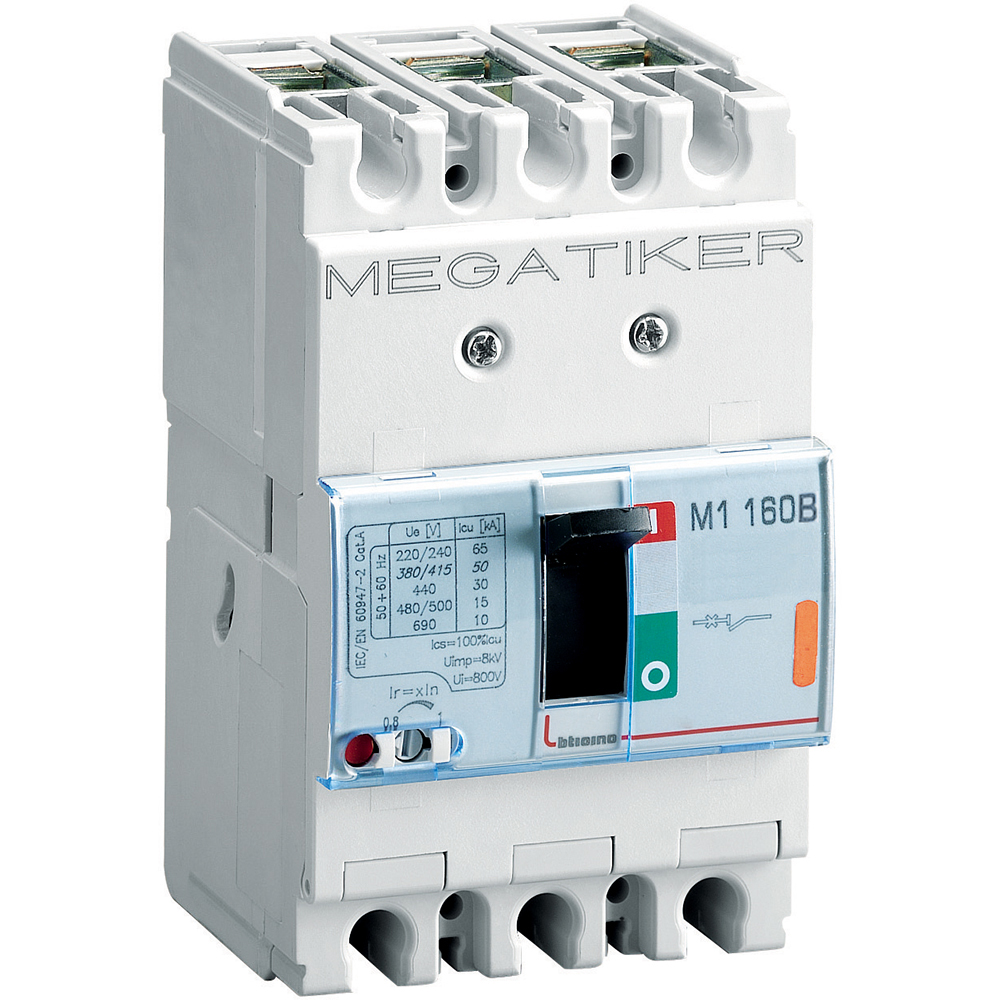

M1 160B - thermal-magnetic Mccb 3P - Icu= 25kA - In= 63A
BT-T713B63
|
8012199974019
Technical Characteristics
Rated permanent current Iu
63 A
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz
25 kA
Overload release current setting (Min-Max)
50.4-63 A
Adjustment range short-term delayed short-circuit release (Min-Max)
630-630 A
Adjustment range undelayed short-circuit release (Min-Max)
630-630 A
Device construction
Built-in device fixed built-in technique
Integrated earth fault protection
No
Type of electrical connection of main circuit
Screw connection
Suitable for DIN rail (top hat rail) mounting
Yes
Number of auxiliary contacts as normally closed contact
1
Number of auxiliary contacts as change-over contact
1
With switched-off indicator
Yes
With integrated under voltage release
Yes
Number of poles
3
Position of connection for main current circuit
Front side
Type of control element
Wing knob
Motor drive integrated
No
Motor drive optional
Yes
Degree of protection (IP)
IP30
