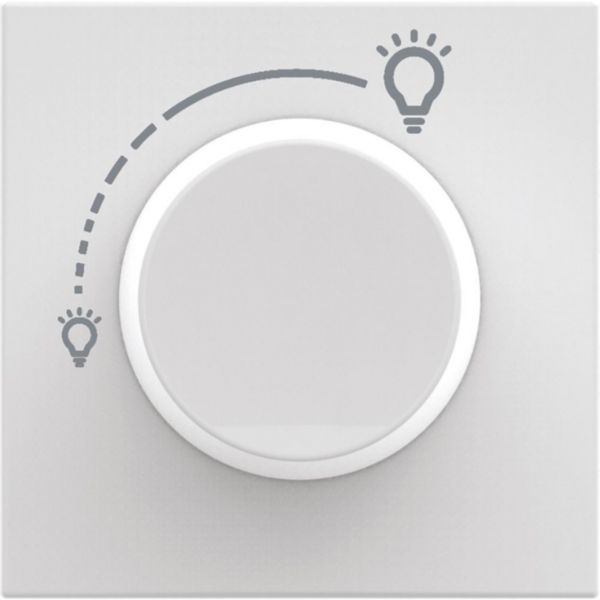

Rotary dimmer without neutral
BT-RW4415
|
8005543715857
Technical Characteristics
Assembly arrangement
Basic element with central cover plate
Method of operation
Turn/push button
Number of modules (module system)
2
Number of units
1
App control via Bluetooth
No
Dimming phase cut-on (leading edge)
Yes
Dimming phase cut-off (trailing edge)
No
Serial dimmer
Yes
Type of load
Other
Substation input
No
Light value memory
No
Applicable with button
Yes
Applicable with movement sensor
No
Applicable with presence indicator
No
Applicable with time switch/timer
No
Applicable with transmission button
No
Applicable with infrared button
No
Min. brightness controllable
Yes
Mounting method
Module frame
Type of fastening
Other
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9003
Transparent
No
Suitable for degree of protection (IP)
IP40
degree of impact strength (IK)
IK04
Nominal voltage (Min-Max)
220-230 V
Frequency (Min-Max)
50-60 Hz
Control voltage (Min-Max)
220-230 V
Nominal power resistive load (Min-Max)
40-400 W
Nominal power inductive load (Min-Max)
40-400 VA
Nominal power capacitive load (Min-Max)
40-400 VA
Max. switching power LED
200 W
Connection type
Screwed terminal
Cable section (Min-Max)
1.5-2.5 mm²
Device width
45 mm
Device height
45 mm
Device depth
58 mm
Min. depth of built-in installation box
43 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Built-in depth
33 mm
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Voltage type
AC
Mandatory neutral
No
Terminal marking indication
No
Stress test conformity (1000V)
No
Antimicrobial treatment
No
Terminals capacity (Min-Max)
1.5-2.5 mm²
Cable nature for connection
Flexible or rigid
Tube diameter for wall mounted product (Min-Max)
1.5-2.5 mm
Documentation
1 documents
Technical Sheet
IDP000237_03-EN | PDF (1.9 MB) | EN
1 documents
Catalog Commercial Page
3210144 | PDF (9.4 MB) | EN
