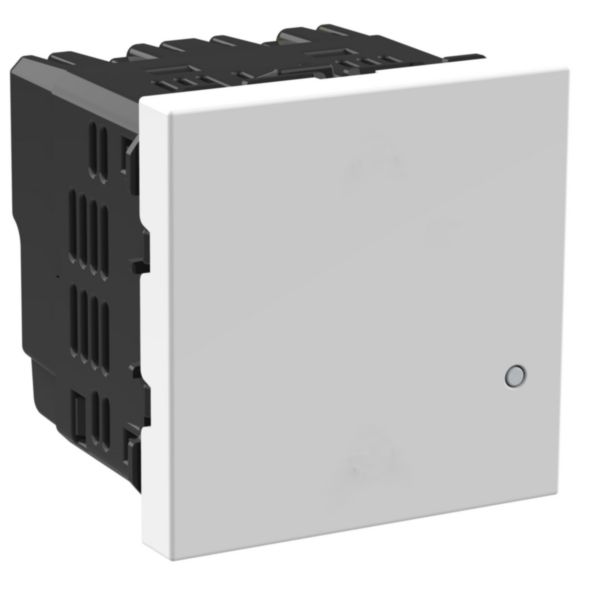

Switch without neutral with dimmer option
BT-RW4413CM2
|
8005543725719
Description
The connected switch (with dimmer option) allows you to control your lights remotely via the Home + Control app, or by using your voice
Product characteristics
- Without neutral, 5 VA - 125VA, supplied with a bleeder
- Compatible with conventional or dimmer bulbs, including LEDs. Dimmer mode can be activated from the app
- LED indicator with locator function which can be activated in the app
- Auxiliary entry for mechanical push-button control
- White
Recommendations / Restrictions
- To connect your switch (with dimmer option), you first need to purchase and install a Classia with Netatmo connected starter pack. To control your two-way switch, you need to pair one or more Classia with Netatmo wireless switches with it or a mechanical push-button in english version
Products benefits
Installation
- The Classia with Netatmo connected switch (with dimmer option) is easily installed in place of an existingflush-mounting switch and needs a standard-depth flush-mounting box(40 mm).Compatible with claw-fixing boxes.
Usage
- Control and dim your lights by touching the switch, your smarphone or by your voice using a vocal assistant
Advantages
- When associated to the connected starter pack, the Celiane with Netatmo products can be controlled manually or remotely from your smartphone or via voice control.
- Does not require neutral. Supplied with a bleeder for increased compatibility with LED lighting on the market
Technical Characteristics
Assembly arrangement
Basic element with central cover plate
Model
Tronic
Type of load
Universal and LED Retrofit
Substation input
Yes
Light value memory
Yes
Applicable with button
Yes
Applicable with movement sensor
Yes
Applicable with presence indicator
No
Applicable with time switch/timer
Yes
Applicable with transmission button
Yes
Applicable with infrared button
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9003
Transparent
No
Nominal voltage
230 V
Frequency (Min-Max)
50-60 Hz
Rated current
0.55 A
Switch capacity (Min-Max)
5-125 W
Number of channels
1
Type of fastening
Other
Min. depth of built-in installation box
50 mm
Compatible with Apple HomeKit
Yes
Compatible with Google Assistant
Yes
Compatible with Amazon Alexa
Yes
IFTTT support available
No
Width
45 mm
Height
45 mm
Depth
44 mm
Built-in depth
33 mm
degree of impact strength (IK)
IK04
Degree of protection (IP)
IP40
Operating / setting temperature (Min-Max)
5-45 °C
Storage temperature (Min-Max)
0-45 °C
Standby consumption
2.2 mA
Mandatory neutral
No
Terminal marking indication
Yes
Stress test conformity (1000V)
No
Halogen free
Yes
Antimicrobial treatment
No
Connection type
Screwed terminal
Number of terminals
3
Terminals capacity (Min-Max)
0.75-2.5 mm²
Cable section (Min-Max)
0.75-2.5 mm²
Label space/information surface
No
Contains Batteries and/or Accumulator
No
Connected object
Yes
Operating method
Zigbee
Application store for download
App Store, Google Play Store
Programming way
Smartphone apps
With voice command
Yes
Programmable
Yes
Interoperable connection Protocol
Yes
Connectable by Internet box
Yes
Compatible voice assistants
Google Assistant, Amazon Alexa, Apple Siri
Application name
Home + Control
Product use function
Lighting management
