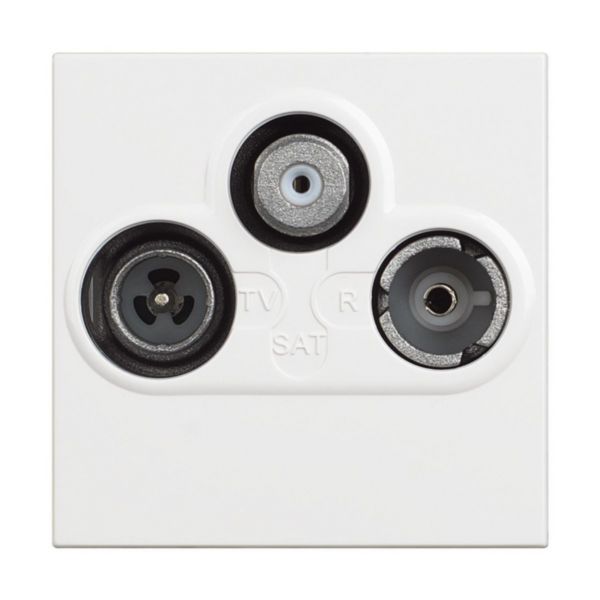

TV socket star demixed coaxial socket for single-user aerial systems
BT-RW4210M2D
|
8005543632918
Description
Star demixed coaxial socket for single-user aerial systems , single-user/shunting centralised satellite systems with current and signal transfer for channels selection, and for radio systems , 1 module, color white
Product characteristics
- Star demixed coaxial socket for single-user aerial systems, also remote powered and shunting centralised, and for single-user/shunting centralised satellite systems with current and signal transfer for channels selection, and for radio systems; Ø 9.5 mm male TV connector - type F SAT connector and female radio Ø 9.5 mm
- 2 modules
- color white
Recommendations / Restrictions
- For indoor use only.
Products benefits
Installation
- This socket was designed for an intuitive cable insertion. Connection to terminal block is fast and easy.
Usage
- Optimized socket for new UHD or 4K TVs: designed for optimal signal reception.
Technical Characteristics
Model
Loop-through socket
Type of socket outlet
TV/RD/SAT
Mounting method
Module frame
Number of modules (module system)
1
Assembly arrangement
Basic element with central cover plate
Tap loss at 860 MHz
10 dB
Number of outlets
2
Suitable for cable modem
No
Through loss at 860 MHz
10 dB
Suitable for remote power supply
No
Type of fastening
Snap mounting (engagement)
Colour
White
RAL-number (similar)
9003
Surface protection
Untreated
Surface finishing
Matt
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Antimicrobial treatment
No
Degree of protection (IP)
IP20
Device width
44.7 mm
Device height
45 mm
Device depth
41.5 mm
Min. depth of built-in installation box
31.7 mm
Operating / setting temperature (Min-Max)
-5-50 °C
Storage temperature (Min-Max)
-10-70 °C
Terminal marking indication
No
Documentation
1 documents
Technical Sheet
IDP000244_02-EN | PDF (870 KB) | EN
1 documents
Catalog Commercial Page
3210144 | PDF (9.4 MB) | EN
