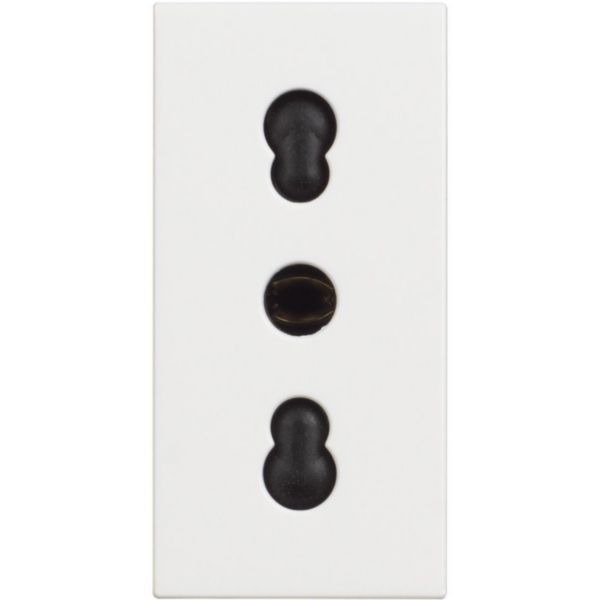

Italian standard socket 2P+E 16A 250 Vac (item sold in box packaging)
BT-RW4180P
|
8005543704882
Description
This socket outlet allows to connect an electric or electronic device with plugs 10 and 16A Italian standard, child protection shutters, color white
Product characteristics
- 2P+E 16 A 250 Va.c. socket - center distance 19 mm and 26 mm. - Italian standard
- shielded protection shutters
- color white
- screw terminals
- 250V
Products benefits
Installation
- Easy to insall and remove
Usage
- Child protection shutter
Technical Characteristics
Model
Italian type P17/11
Concurrently switching neutral conductor
No
Protective contact
Round
Number of active contacts (round)
4
Number of active contacts (flat)
0
Number of active contacts (square)
0
Assembly arrangement
Basic element with central cover plate
With complemantary luminous signal
No
Number of ports USB-A
0
Number of ports USB-C
0
Number of socket outlets
1
Socket outlets phase-separated
No
Number of modules (module system)
1
Number of socket outlets switchable
0
Number of phases
1
Imprint/indication
None
Connection type
Screwed terminal
With hinged lid
Yes
With enhanced contact protection
Yes
Label space/information surface
No
Colour
White
RAL-number (similar)
9003
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
No
With orientation lighting
No
Overvoltage protection
No
Fault current protection
No
With miniature fuse
No
Special power supply
None
Mounting method
Flush-mounted
Type of fastening
Other
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Antimicrobial treatment
No
With loop through function
Yes
With on/off switch
No
Rotated central insert
No
Nominal current
16 A
Nominal voltage
250 V
Frequency (Min-Max)
50-60 Hz
Rated fault current
16 mA
Suitable for degree of protection (IP)
IP20
degree of impact strength (IK)
IK04
Device width
22 mm
Device height
45 mm
Device depth
42.5 mm
Min. depth of built-in installation box
42.5 mm
Compatible with Apple HomeKit
No
Compatible with Amazon Alexa
No
Compatible with Google Assistant
No
IFTTT support available
No
With Wi-Fi signal repeater
No
With built-in bluetooth speaker
No
For heavy conditions according to VDE
No
Built-in depth
31.5 mm
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Voltage type
AC
Power Delivery
No
Terminal marking indication
No
Prewired
No
Terminals capacity (Min-Max)
1.5-2.5 mm²
Cable nature for connection
Flexible or rigid
Cable section (Min-Max)
1.5-2.5 mm²
Cable support
Screw cable clamp
Connected object
No
