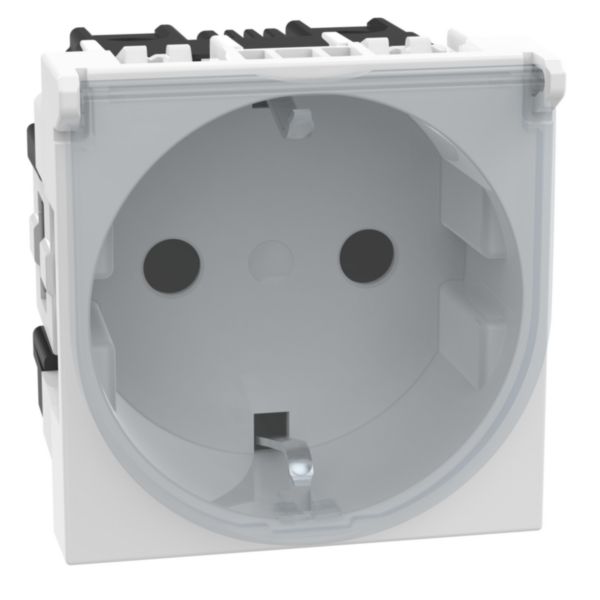

German standard socket 2P+E 16A 250 Vac with IP20 flap
BT-RW4141C
|
8005543633137
Description
This socket outlet allows to connect an electric or electronic device with plugs German standard with IP20 flap, child protection shutters, color white.
Product characteristics
- 2P+E 16A socket 250 Va.c. - socket - German standard, with IP20 flap
- shielded protection shutters
- screw terminals
- color white
- 250V
Products benefits
Installation
- Easy to insall and remove
Usage
- Child protection shutter
Technical Characteristics
Model
Socket outlet with protective contact CEE 7/3 (type F)
Concurrently switching neutral conductor
No
Protective contact
Other
Number of active contacts (round)
2
Number of active contacts (flat)
0
Number of active contacts (square)
0
Assembly arrangement
Basic element with central cover plate
With complemantary luminous signal
No
Number of ports USB-A
0
Number of ports USB-C
0
Number of socket outlets
1
Socket outlets phase-separated
No
Number of modules (module system)
2
Number of socket outlets switchable
0
Number of phases
1
Imprint/indication
None
Connection type
Screwed terminal
With hinged lid
Yes
With enhanced contact protection
Yes
Label space/information surface
No
Colour
White
RAL-number (similar)
9003
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
No
With orientation lighting
No
Overvoltage protection
No
Fault current protection
No
With miniature fuse
No
Special power supply
None
Mounting method
Flush-mounted
Type of fastening
Snap mounting (engagement)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Antimicrobial treatment
No
With loop through function
No
With on/off switch
No
Rotated central insert
No
Nominal current
16 A
Nominal voltage
250 V
Frequency (Min-Max)
50-60 Hz
Rated fault current
16 mA
Suitable for degree of protection (IP)
IP20
Device width
44.7 mm
Device height
45 mm
Device depth
41.5 mm
Compatible with Apple HomeKit
No
Compatible with Amazon Alexa
No
Compatible with Google Assistant
No
IFTTT support available
No
With Wi-Fi signal repeater
No
With built-in bluetooth speaker
No
For heavy conditions according to VDE
No
Built-in depth
31.7 mm
Operating / setting temperature (Min-Max)
-5-50 °C
Storage temperature (Min-Max)
-10-70 °C
Voltage type
AC
Power Delivery
No
Terminal marking indication
No
Prewired
No
Cable nature for connection
Flexible or rigid
Cable section (Min-Max)
1.5-2.5 mm²
Cable support
Screw cable clamp
Connected object
No
