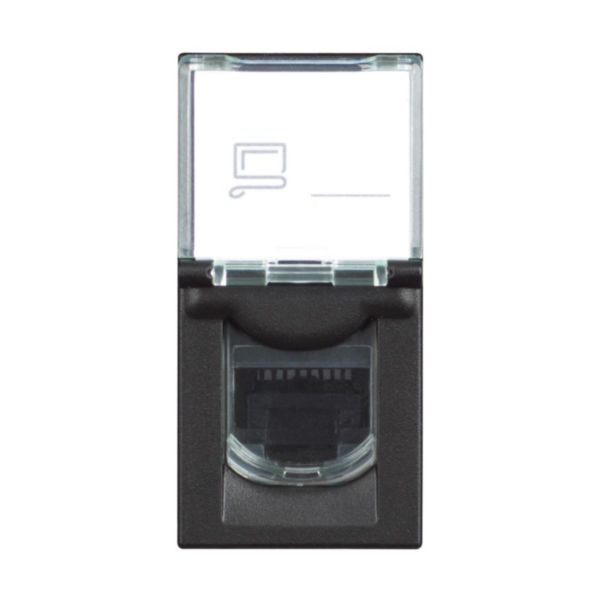

RJ45 toolless UTP cat. 6
BT-RG4279C6
|
8005543634462
Description
The Classia RJ45 socket connects a device (PC, printer) to the local network (internet box, switch). The wired distribution guarantees a high speed, secured and reliable connection to the internet.
Product characteristics
- RJ45 Cat 6: Data rate up to 1 GigaBit/s. This allows you to download a 1 GigaBytes file in 8 seconds.
- Support high capacity PoE applications. Power over Ethernet pass electric power along with data on twisted pair Ethernet cabling.
- TIA 568A/B color coded contacts for standard wiring
Recommendations / Restrictions
- Compliant with ISO/IEC 11801 edition 3.0 (2017) standards. Mimimum 40mm depth electrical installation box needed. Take AWG22 up to AWG26 single-core cables. Take AWG26 multicore cables. Indoor use only.
Products benefits
Installation
- Shallow depth mechanism facilitating mounting into the flush-mounted box. Socket equipped with a tool less quick connector for intuitive and reliable wiring.
Usage
- Suitable for commercial and residential installation. IP and analog phones. Very suitable for downloads, streaming or online games requiring low latency.
Advantages
- Toolless connector with fast connection thanks to integrated crimping.
- Compatible with cords equipped with RJ11, RJ12 or RJ45 plugs.
Technical Characteristics
Surface mounting
No
Flush-mounted installation
Yes
Duct installation
Yes
Floor box/subfloor mounted
No
Type of fastening
Engage (snap)
Assembly arrangement
Basic element with central cover plate
Type of connector
RJ45 8(8)
With buses/couplings
Yes
Suitable for number of connectors
1
Category
6
Colour
Black
RAL-number
7015
Connection type
Insulation displacement connector
Shielded buses
No
Separate earthing connection
No
With label space
Yes
Separate strain relief
No
Mounting method shielding connection
None
Outlet direction
Straight
With dust cover
Yes
With terminal resistor
No
Degree of protection (IP)
IP40
Colour coding
Yes
Device width
22.3 mm
Device height
45 mm
Device depth
34 mm
Number of modules (module system)
1
Built-in depth
24 mm
degree of impact strength (IK)
IK04
Operating / setting temperature (Min-Max)
-5-50 °C
Storage temperature (Min-Max)
-10-70 °C
Terminal marking indication
Yes
Halogen free
Yes
Antimicrobial treatment
No
Mounting method
Flush-mounted
Tube diameter for wall mounted product (Min-Max)
0-0 mm
Maximum Input cable diameter
9 mm
Entry membrane gland type
Not applicable
Vertical fixing center distance (Min-Max)
0-0 mm
Horizontal fixing center distance (Min-Max)
0-0 mm
Cable support
Not applicable
