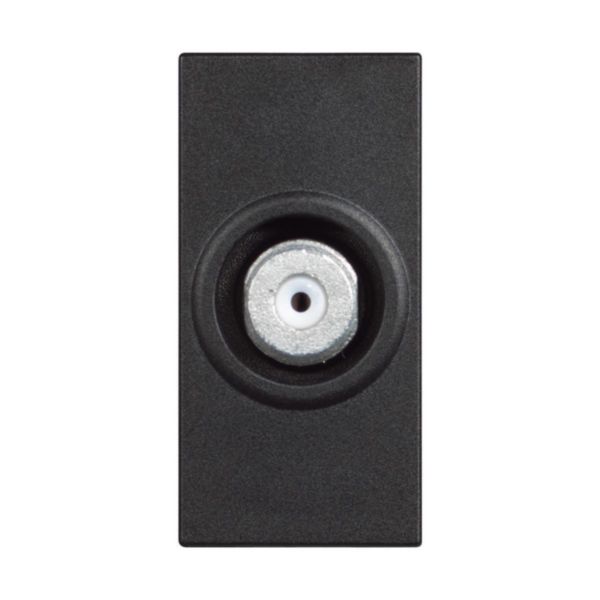

TV socket type-F coaxial socket - impedance 75 ohm
BT-RG4202F
|
8005543632772
Description
TV socket type-F coaxial - impedance 75 ohm - screw hook, 1 module, color black
Product characteristics
- TV socket type-F coaxial - impedance 75 ohm - screw hook
- 1 module
- color black
Recommendations / Restrictions
- For indoor use only.
Products benefits
Installation
- This socket was designed for an intuitive cable insertion. Connection to terminal block is fast and easy.
Usage
- Optimized socket for new UHD or 4K TVs: designed for optimal signal reception.
Technical Characteristics
Model
End socket
Type of socket outlet
SAT
DAB+
No
Mounting method
Module frame
Number of modules (module system)
1
Assembly arrangement
Basic element with central cover plate
Number of outlets
1
Suitable for cable modem
No
Suitable for remote power supply
No
Radio frequency band (Min-Max)
50-60 MHz
Type of fastening
Snap mounting (engagement)
Colour
Black
RAL-number (similar)
9011
Surface protection
Untreated
Surface finishing
Matt
Material
Plastic
Material quality
Duroplast
Halogen free
Yes
Antimicrobial treatment
No
Degree of protection (IP)
IP20
degree of impact strength (IK)
IK04
Device width
22.5 mm
Device height
45 mm
Device depth
36 mm
Min. depth of built-in installation box
32 mm
Built-in depth
22 mm
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Terminal marking indication
No
