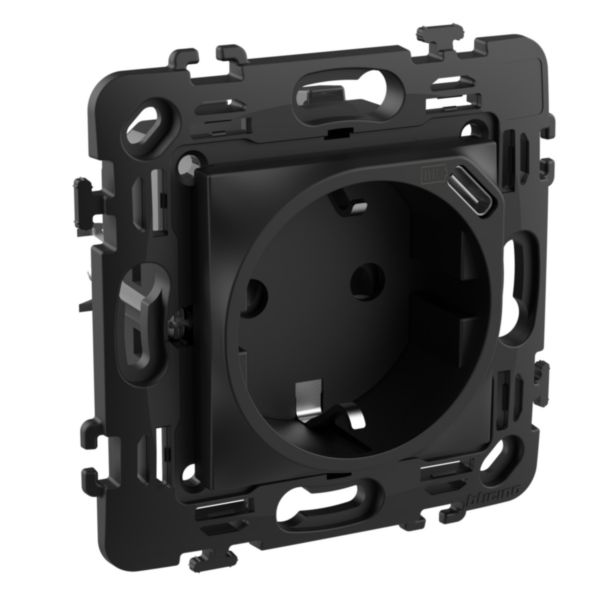

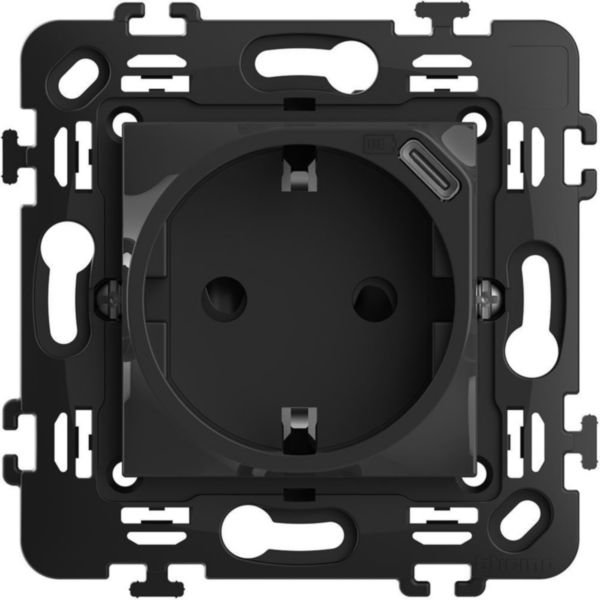

German standard electric socket with integrated type C USB charger
BT-RG4141USB
|
8005543674963
Description
Power socket with Type-C flush-mounting charger, suitable for mobile, tablets and powerbank, color black
Product characteristics
- 2P+E 16A socket 250 Va.c. - socket - German standard
- USB type C 1,5A 7,5W
- color black
- screw terminals
- 250V- 7,5W
Products benefits
Installation
- Easy to insall and remove
Usage
- Child protection shutter
Technical Characteristics
Model
Socket outlet with protective contact CEE 7/3 (type F)
Concurrently switching neutral conductor
No
Protective contact
Other
Number of active contacts (round)
2
Number of active contacts (flat)
0
Number of active contacts (square)
0
Assembly arrangement
Basic element with central cover plate
With complemantary luminous signal
No
Number of ports USB-A
0
Number of ports USB-C
1
Number of socket outlets
1
Socket outlets phase-separated
No
Number of modules (module system)
2
Number of socket outlets switchable
0
Number of phases
1
Imprint/indication
None
Connection type
Screwed terminal
With hinged lid
No
With enhanced contact protection
Yes
Label space/information surface
No
Colour
Black
RAL-number (similar)
9011
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
No
With orientation lighting
No
Overvoltage protection
No
Fault current protection
No
With miniature fuse
No
Special power supply
None
Mounting method
Flush-mounted
Type of fastening
Other
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Antimicrobial treatment
No
With loop through function
No
With on/off switch
No
Rotated central insert
No
Nominal current
16 A
Nominal voltage
250 V
Frequency (Min-Max)
50-60 Hz
Suitable for degree of protection (IP)
IP20
degree of impact strength (IK)
IK04
Device width
44.7 mm
Device height
45.1 mm
Device depth
45 mm
Min. depth of built-in installation box
40 mm
Compatible with Apple HomeKit
No
Compatible with Amazon Alexa
No
Compatible with Google Assistant
No
IFTTT support available
No
With Wi-Fi signal repeater
No
With built-in bluetooth speaker
No
For heavy conditions according to VDE
No
Built-in depth
31.7 mm
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Voltage type
AC
Power Delivery
No
USB Output Power
7.5 W
Terminal marking indication
No
Prewired
No
Terminals capacity (Min-Max)
1.5-2.5 mm²
Cable nature for connection
Flexible or rigid
Cable section (Min-Max)
1.5-2.5 mm²
Cable support
Screw cable clamp
Connected object
No
Documentation
1 documents
Technical Sheet
IDP001498_01-EN | PDF (503 KB) | EN
1 documents
Agreement
LGLUGXOVPX | FILE (490 KB) | EN
1 documents
Catalog Commercial Page
3210144 | PDF (9.4 MB) | EN
