Classia BTicino

1P 10A – 250Vac double-key changeover "do not disturb” and “make up the room”

BT-RG4028HN | 8005543699003

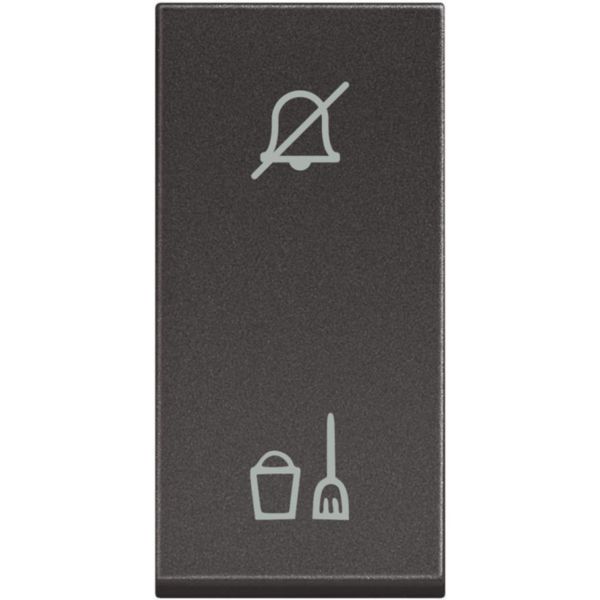

1P 10A – 250Vac double-key changeover switch 1-0-2 with interlock and double signalling: "do not disturb” and “make up the room”. 1 module - Black
Description

Double-key changeover switch 1P 10 A – 250 Va.c. , 1-0-2 with interlock and double signalling: "do not disturb” and “make up the room” for Hotel. 1 module, color black

Product characteristics
  • Double-key changeover switch 1P 10 A – 250 Va.c. , 1-0-2 with interlock and double signalling: "do not disturb” and “make up the room” for Hotel
  • 1 module
  • color black
  • screw terminals
  • 10 A, 250 Va.c. 1 P (NO)1 module
Recommendations / Restrictions
  • For internal use only.
Products benefits
Installation
  • Easy to install and remove
Usage
  • It is coordinated with the Classia aesthetic
Technical Characteristics
Assembly arrangement Modular device for domestic switching devices
Model Single push button
Method of operation Push button/touch control button
Number of contacts as normally closed contact 0
Number of contacts as normally open contact 1
Number of contacts as change-over contact 0
Number of revolving contacts 0
Contactless type No
Number of rockers 1
Number of modules (module system) 1
Number of poles 1
Nominal voltage 250 V
Rated current 16 A
With lighting No
With light source No
With complemantary luminous signal No
Monitoring contact No
Connection type Screwed terminal
Mounting method Flush-mounted
Type of fastening Other
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Black
RAL-number (similar) 9011
Transparent No
Label space/information surface No
Imprint Other
Suitable for degree of protection (IP) IP40
degree of impact strength (IK) IK04
Device width 22 mm
Device height 45 mm
Device depth 36.5 mm
Min. depth of built-in installation box 36.5 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Built-in depth 26.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Frequency (Min-Max) 50-60 Hz
Mandatory neutral No
Terminal marking indication No
Terminals capacity (Min-Max) 1.5-2.5 mm²
Cable nature for connection Flexible or rigid
Cable section (Min-Max) 1.5-2.5 mm²
Documentation
1 documents
Technical Sheet
IDP001654 | PDF (954 KB) | EN
1 documents
Catalog Commercial Page
3210144 | PDF (9.4 MB) | EN
