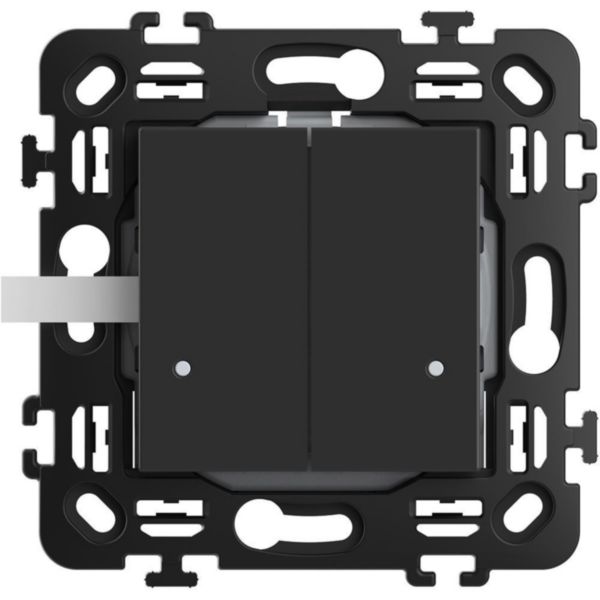

Wireless Light switch. It is equipped with two buttons to control two different connected devices
BT-RG4003DCW
|
8005543651612
Description
The Classia with Netatmo wireless double light switch can be used to control two separate lighting circuits. It is also possible to create two switched power outlets to control the home appliances connected to them.
Product characteristics
- Quick and easy pairing with wired products (connected switch with dimmer option, connected power outlet, connected micromodule, or connected cable outlet)
- LED indicator with low battery warning
- Supplied with a replaceable battery with an 8-year life
- 2.4 GHz radio technology
- Black
Recommendations / Restrictions
- To add your wireless double light switch to your connected installation, you first need to purchase and install a Classia with Netatmo connected starter pack, as well as one or more Classia with Netatmo connected switches, power outlets or lighting micromodules
Products benefits
Installation
- Extra-slim, the double wireless light switch is attached to a wall with the adhesive pads provided. It can therefore be repositioned. Can also be screwed onto a flush-mounting box.
Usage
- Pair up to 40 dimmer switches, lighting micromodulesor power outlets (20 per double switch button) and control them all with a single press on the wireless switch.
Technical Characteristics
Radio frequency
2400 MHz
Rolling code system
Yes
Code length (Bit)
128
Range
185 m
Number of commands
2
With manual radio transmitter
Yes
Flush-mounted radio transmitter
No
Surface mounted radio transmitter
Yes
With radio coding device
Yes
Degree of protection (IP)
IP40
Keyboard protection cover
No
Current supply
Battery
Width
75 mm
Height
75 mm
Depth
11 mm
Built-in depth
11 mm
degree of impact strength (IK)
IK04
Operating / setting temperature (Min-Max)
5-45 °C
Storage temperature (Min-Max)
0-45 °C
Standby consumption
0 mA
Mandatory neutral
No
Stress test conformity (1000V)
No
Colour
Black
RAL-number
7015
Halogen free
Yes
Antimicrobial treatment
No
Mounting method
Surface mounted
Contains Batteries and/or Accumulator
Yes
IEC code (Pack1)
CR2032
Battery ou Accumulator (Pack1)
Battery (not rechargeable)
Element Composition (Pack1)
Lithium (battery or accumulator)
Number of Pack 1
1
Number of Single Element (Pack1)
1
Single Element weight (Pack1)
3 g
Pack1 Location
Product includes a battery
Regulation Type (Pack1)
P : Portable (Standard format)
Connected object
Yes
Operating method
Zigbee
Application store for download
Google Play Store, App Store
Programming way
Smartphone apps
With voice command
Yes
Programmable
Yes
Interoperable connection Protocol
Yes
Connectable by Internet box
Yes
Compatible voice assistants
Google Assistant, Amazon Alexa, Apple Siri
Application name
Home + Control
Product use function
Lighting management
Documentation
2 documents
Technical Sheet
IDP000363_01-EN | PDF (2.9 MB) | EN
Instruction Use
LE11619AA | PDF (1.2 MB)
2 documents
Agreement
LGESKSGGSJ | FILE (263 KB) | EN · ES
Agreement
LGFOWMNRPB | FILE (437 KB) | EN · FR
1 documents
Catalog Commercial Page
3210144 | PDF (9.4 MB) | EN
