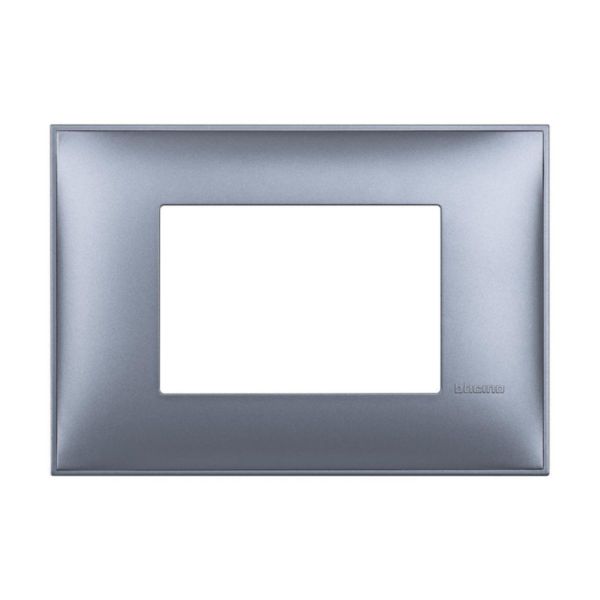

Cover plate - 3 modules
BT-R4803LM
|
8005543633885
Description
The Classia collection of plates has a modern, pure Italian design with a sophisticated outline. In technpolymer, this cover plate is 3 modules, color blue with metal effect.
Product characteristics
- Technopolymer cover plates blue metal, for installation on rectangular box (Bticino ref. 503E for masonery, ref BP503N for plasterboard) or equivalents, Italian standard.
- Perfect installation both in masonry and plasterboard walls
- 3 modules
- Single packaging flow-pack hangable
Recommendations / Restrictions
- For indoor use only.
Products benefits
Installation
- This cover plate is Italian standard and can match with the offer European standard for mixed installation. It guarantee a perfect alignment of mechanisms both in masonry and plasterboard walls and a permanent contact with the wall.
Usage
- Enrich your installation with an Italian design pure shape, with sophisticated details. This cover plate is blue with metal effect.
Advantages
- The same finishes is available in all modularity Italian and European standard boxes.
- Perfect alignement both in masonry and plasterboard walls.
Technical Characteristics
Number of units
1
Mounting direction
Horizontal and vertical
Number of units horizontal
1
Number of units vertical
1
Number of modules horizontal (module system)
3
Number of modules vertical (module system)
1
With mounting grid
No
Flush-mounted installation
Yes
Suitable for subfloor installation duct box
No
Suitable for wall duct
No
Suitable for built-in installation
Yes
Label space/information surface
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Antimicrobial treatment
No
Surface protection
Lacquered
Surface finishing
Matt
Colour
Blue
RAL-number (similar)
4012
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP20
degree of impact strength (IK)
IK00
Type of fastening
Engage (snap)
Width
122 mm
Height
86 mm
Depth
9 mm
Built-in width
122 mm
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Latin wood species
Not applicable
Certification of wood (list)
Not applicable
Wood Climate area
Not applicable
