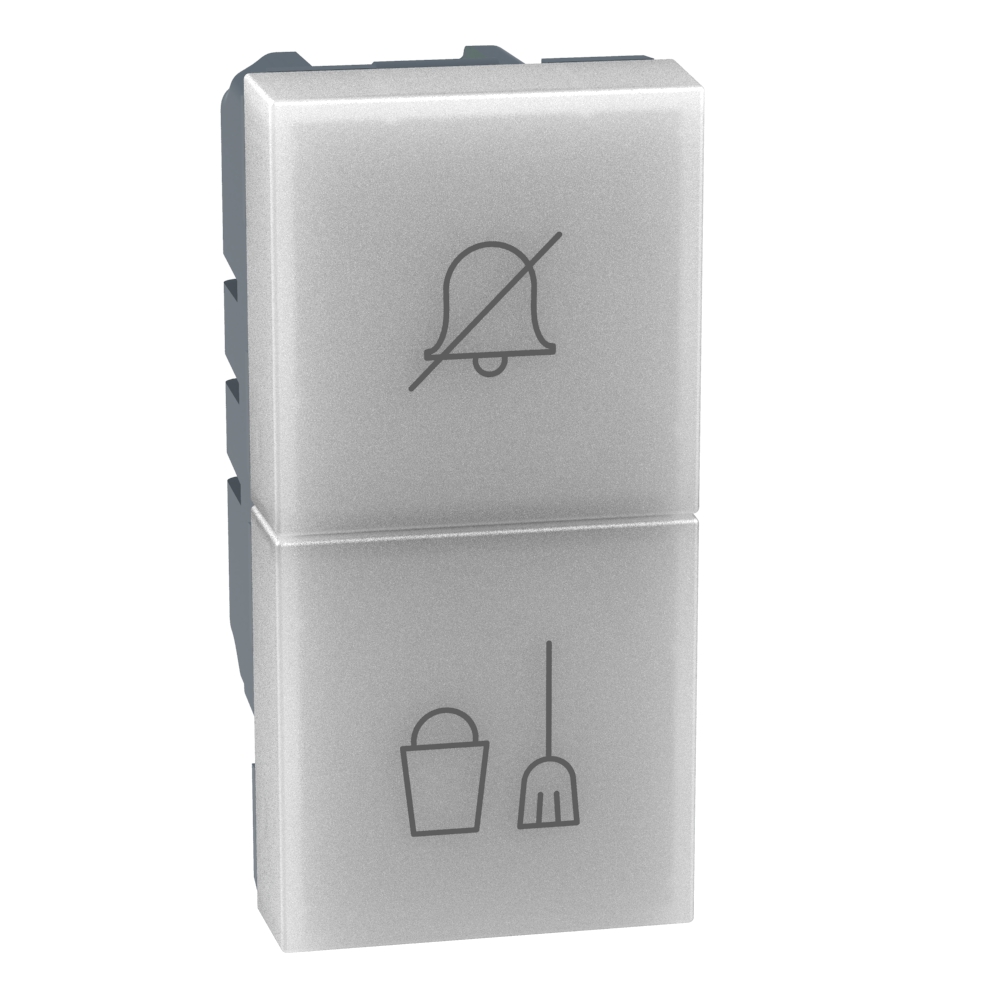

Flush Light indicator unit signalling “do not disturb / make up the room”
BT-R4373
|
8005543735503
Technical Characteristics
Assembly arrangement
Other
Number of modules (module system)
1
Lamp holder
None
With light source
Yes
Lamp type
LED not exchangeable
With fixed symbol/imprint
Yes
With exchangeable symbol
No
Application as button
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Black
RAL-number (similar)
7015
Transparent
No
Colour light source
White
Suitable for degree of protection (IP)
IP40
Nominal voltage
230 V
Device width
22.5 mm
Device height
45 mm
Device depth
35 mm
Min. depth of built-in installation box
35 mm
Built-in depth
25 mm
degree of impact strength (IK)
IK04
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Voltage type
AC
Supply current (Min-Max)
10-16 A
Frequency (Min-Max)
50-60 Hz
Mandatory neutral
No
Terminal marking indication
No
Stress test conformity (1000V)
No
Antimicrobial treatment
No
Connection type
Screwed terminal
Terminals capacity (Min-Max)
1.5-2.5 mm²
Cable nature for connection
Flexible or rigid
Cable section (Min-Max)
1.5-2.5 mm²
Label space/information surface
No
