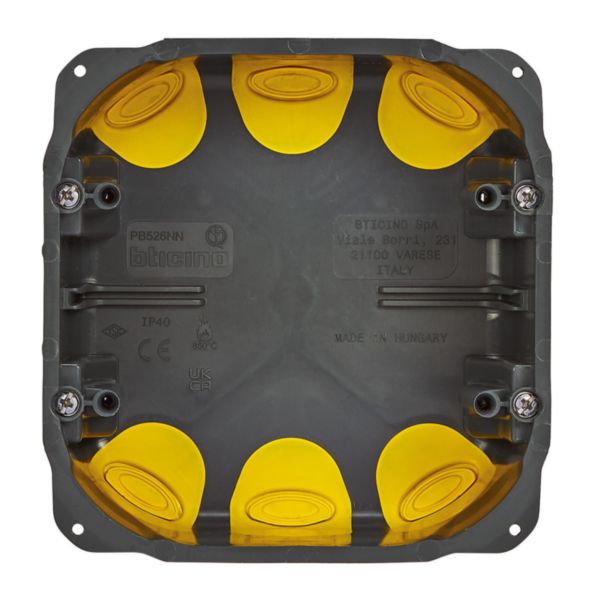

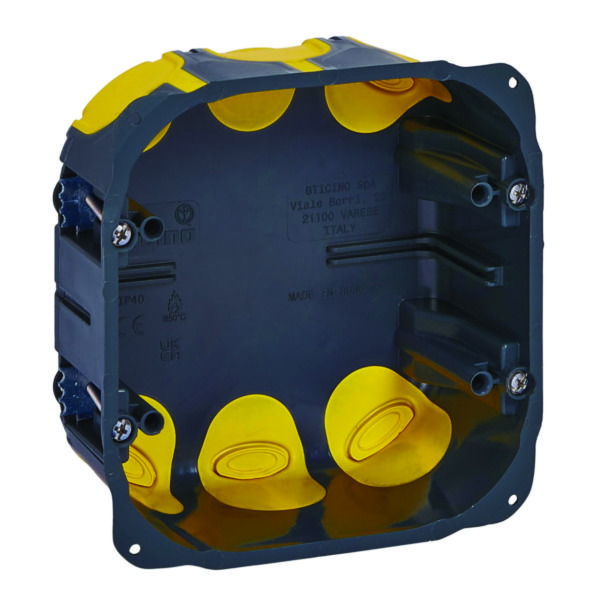

3+3 modules box for dry partitions. Dimensions 111x116x52 mm
BT-PB526NN
|
8005543772515
Description
3+3 modules box for dry partitions (flush mounting in plasterboard, plywood, wood, sheet steel). Dimensions 111x116x52 mm.
Product characteristics
- Fixation to the board with large metal clamps
- IP40 protection
- 3+3 modules
- Color Grey and Yellow
- Packaging 100% plastic free
Recommendations / Restrictions
- Indoor use only.
Products benefits
Installation
- Multi-material flush-mounting boxes suitable for refurbishment projects.
Usage
- It improves occupant comfort and indoor air quality.
Advantages
- Particularly suitable for low-energy houses.
- Boxes allow to install wiring devices by screws or clamps.
Technical Characteristics
Mounting method
Hollow wall
Shape
Rectangular
Construction type
Device connection box (round/square)
Model
Single
Provided with revolving ring
No
Couplable
No
Equipped with
None
Length
111 mm
Width
116 mm
Depth (Min-Max)
52-52 mm
Inner depth
50 mm
For number of electric fittings
6
Mounting switching equipment
Screwing
With screws
Yes
Number of non-adjustable device fixing lugs
0
Number of adjustable device fixing lugs
4
Housing feed-through by break-out opening
No
Housing feed-through by seal membrane
Yes
Housing feed-through by nozzle
Yes
Housing feed-through by step membrane
No
For tube diameter
20/25 mm
Suitable for cable diameter (Min-Max)
1-2.5 mm
Pipe locking
No
Pipe locking optional
No
Inlet from the rear
Yes
Number of inlets
6
Number of included spouts
9
Material
Plastic
Halogen free
No
Surface protection
Untreated
Colour
Black
Degree of protection (IP)
IP40
Cover model
None
Transparent cover
No
Cover attachment
Other
Sealable
No
Circuit integrity
None
With screening
No
Air tight
Yes
Max. conductor cross section
2.5 mm²
Number of poles of the clamp
0
Clamp position fixed
No
Luminaire hook mounting
No
Nozzle
None
Special application
None
With partition panel
No
Compliant with BS 4662
No
degree of impact strength (IK)
IK04
Operating / setting temperature (Min-Max)
-5-40 °C
Storage temperature (Min-Max)
-5-60 °C
Cable support
Not applicable
