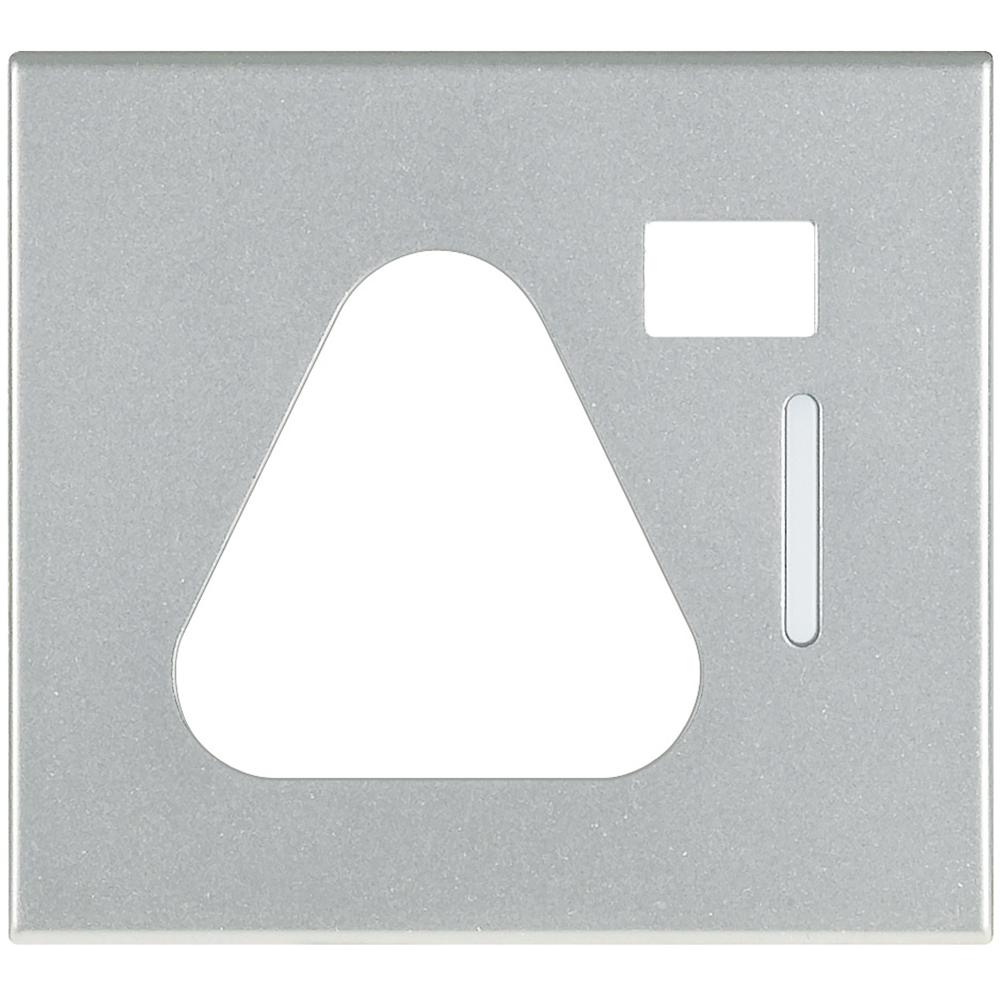

1 gang cover plate - Tech (for items N4151, NT5151, N4153, NT4153)
BT-NT4829TH
|
8012199832807
Technical Characteristics
Number of units
1
Mounting direction
Horizontal
Number of units horizontal
1
Number of units vertical
1
Number of modules horizontal (module system)
2
Number of modules vertical (module system)
1
With mounting grid
No
Flush-mounted installation
Yes
Suitable for subfloor installation duct box
No
Suitable for wall duct
No
Label space/information surface
No
Material
Metal
Material quality
Other
Halogen free
Yes
Antimicrobial treatment
No
Surface protection
Lacquered
Surface finishing
Glossy
Colour
Aluminium
RAL-number (similar)
9006
Transparent
No
With hinged lid
No
Degree of protection (IP)
Other
degree of impact strength (IK)
IK00
Type of fastening
Engage (snap)
Width
95 mm
Height
86 mm
Depth
10 mm
Built-in height
0 mm
Operating / setting temperature (Min-Max)
-5-50 °C
Storage temperature (Min-Max)
-10-70 °C
Latin wood species
Not applicable
Certification of wood (list)
Not applicable
Wood Climate area
Not applicable
Documentation
2 documents
Catalog Commercial Page
CAT-LL-2M | PDF (39.5 MB) | EN
Catalog Commercial Page
CAT-LL-3M | PDF (38.7 MB) | EN
