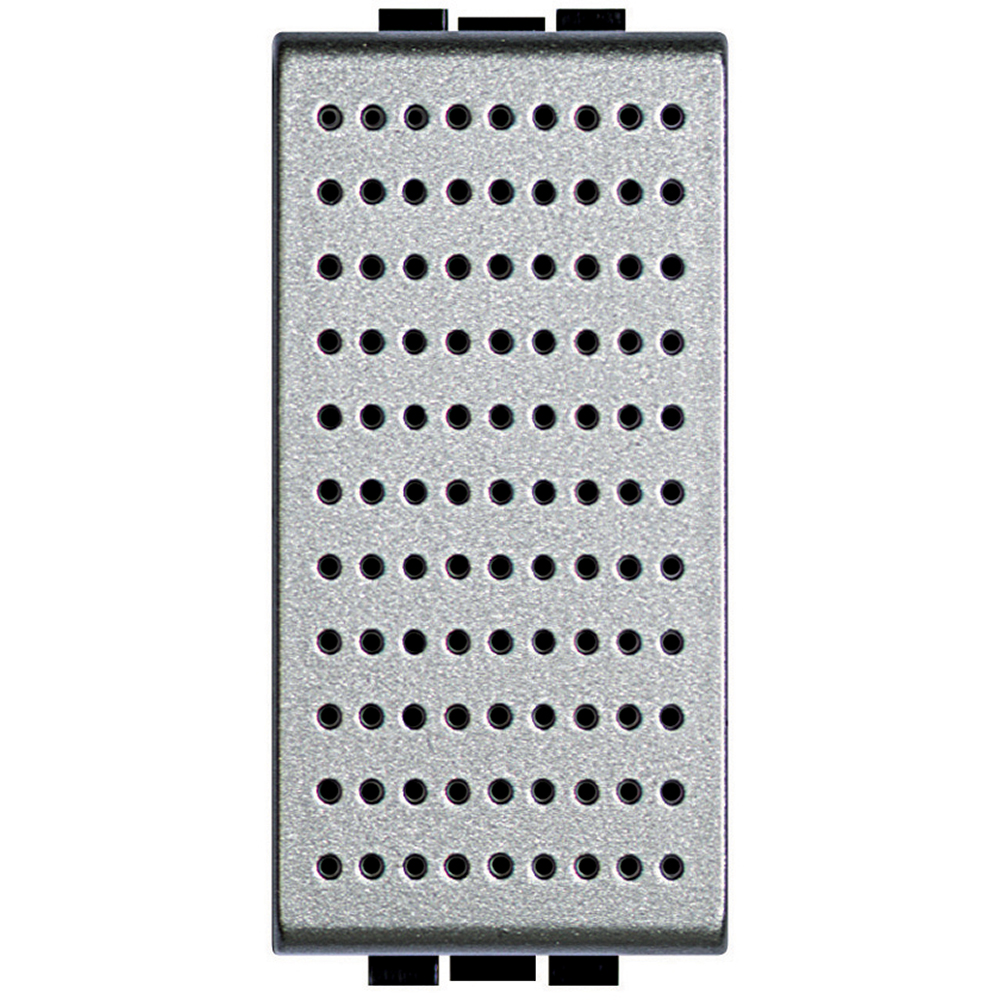

Buzzer 127 Vac 5VA 74dB
BT-NT4356/127
|
8005543630068
Technical Characteristics
Degree of protection (IP)
IP20
Loudness
80 dB
Housing material
Plastic
Housing colour
Black
Type of tone
Continuous tone
Mounting method
Built-in
Built-in transformer
Yes
Width
21.9 mm
Height
47 mm
Depth
43.5 mm
Built-in depth
22.5 mm
Operating / setting temperature (Min-Max)
-5-50 °C
Storage temperature (Min-Max)
-10-70 °C
Frequency (Min-Max)
50-60 Hz
RAL-number
7035
Halogen free
Yes
Antimicrobial treatment
No
Connection type
Screwed terminal
Number of terminals
2
Terminals capacity (Min-Max)
1.5-2.5 mm²
Cable nature for connection
Flexible or rigid
Cable section (Min-Max)
1.5-2.5 mm²
Loudness setting
No
