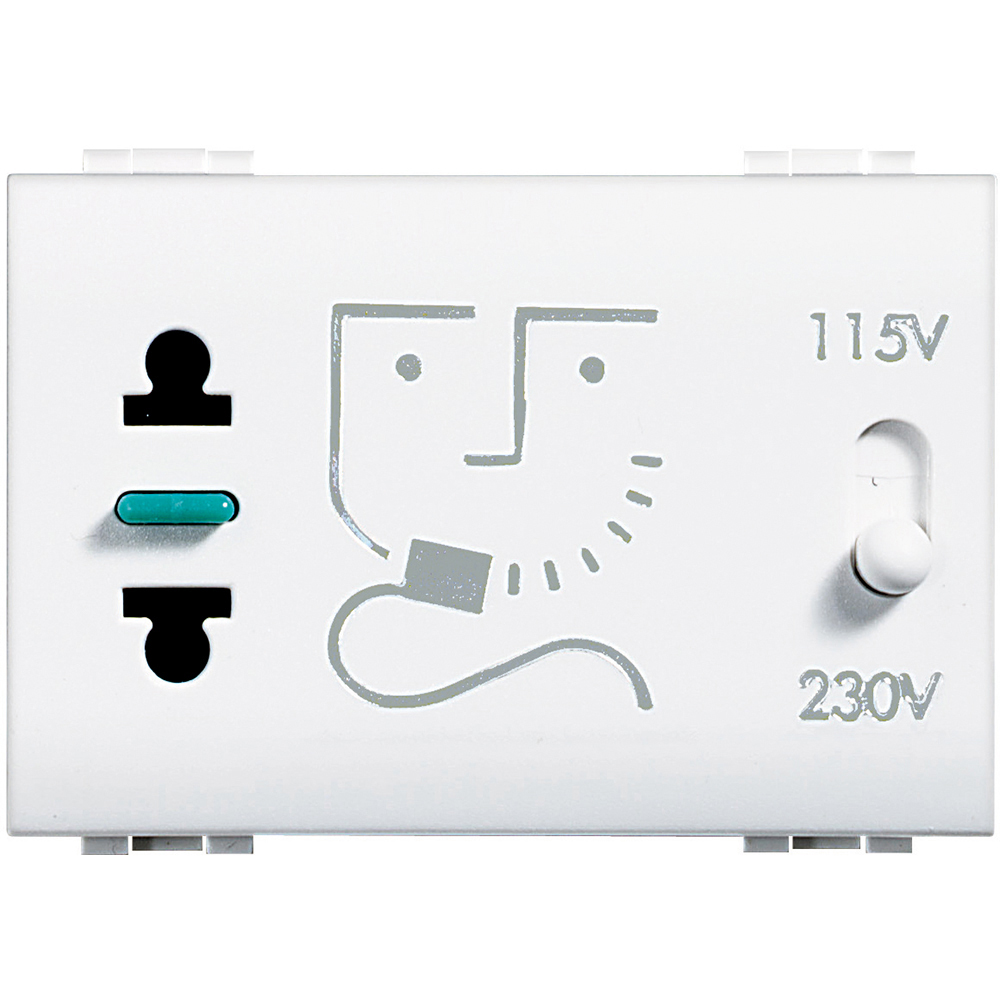

Shaver socket with insulation transformer - input voltage 127 Vac 50/60 Hz
BT-N4177/127
|
8012199530147
Technical Characteristics
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
3
Mounting method
Flush-mounted
With hinged lid
No
Voltage reversible
Yes
Nominal voltage low value
127 V
Nominal voltage high value
230 V
Rated output
20 VA
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9016
Transparent
No
Device width
66 mm
Device height
44 mm
Device depth
60 mm
With built-in installation box
No
Min. depth of built-in installation box
59 mm
Built-in depth
49 mm
degree of impact strength (IK)
Not applicable
Degree of protection (IP)
IP20
Operating / setting temperature (Min-Max)
-5-50 °C
Storage temperature (Min-Max)
-10-70 °C
Voltage type
AC
Antimicrobial treatment
No
Connection type
Screwed terminal
Documentation
1 documents
Technical Sheet
F01936EN/00 | PDF (475 KB) | EN
2 documents
Catalog Commercial Page
CAT-LL-2M | PDF (39.5 MB) | EN
Catalog Commercial Page
CAT-LL-3M | PDF (38.7 MB) | EN
