  • Interlock plates for circuit breakers 3P and 4P frame 1
MEGABREAK BTicino

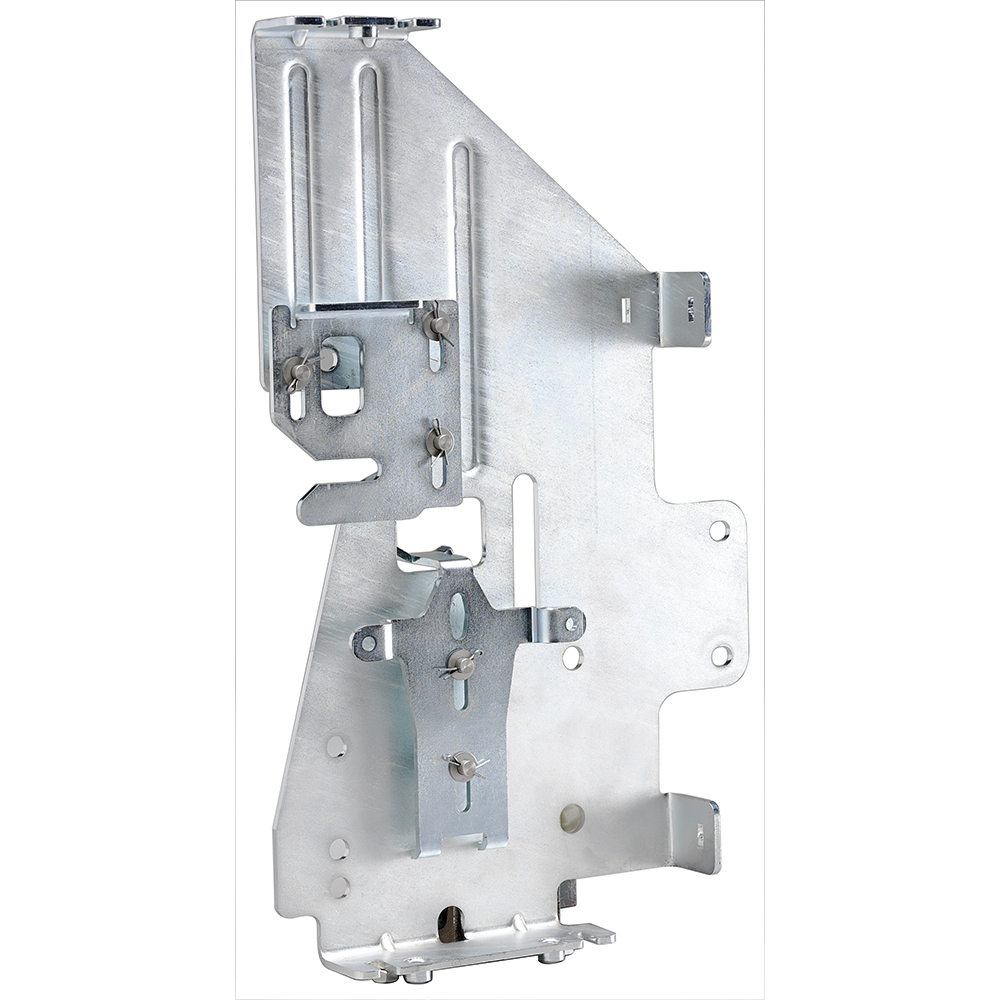

Interlock plates for circuit breakers 3P and 4P frame 1

BT-MT817F1 | 8012199969879
Interlock plates for circuit breakers 3P and 4P frame 1. They are the same for all the circuit breakers of the same FRAME, and must be completed, in the order, by the connection cables, to be chosen in the lengths and versions shown below
Technical Characteristics
Type of accessory/spare part Mechanical locking
Accessory Yes
Spare part No
Width 398 mm
Height 398 mm
Depth 43 mm
Operating / setting temperature (Min-Max) -40-70 °C
Storage temperature (Min-Max) -0-40 °C
Colour Steel
Halogen free Yes
Documentation
1 documents
Instruction Use
Y3684B | PDF (13.9 MB)
