Protection unit with measure
BT-MP410SM
|
8005543708071
Description

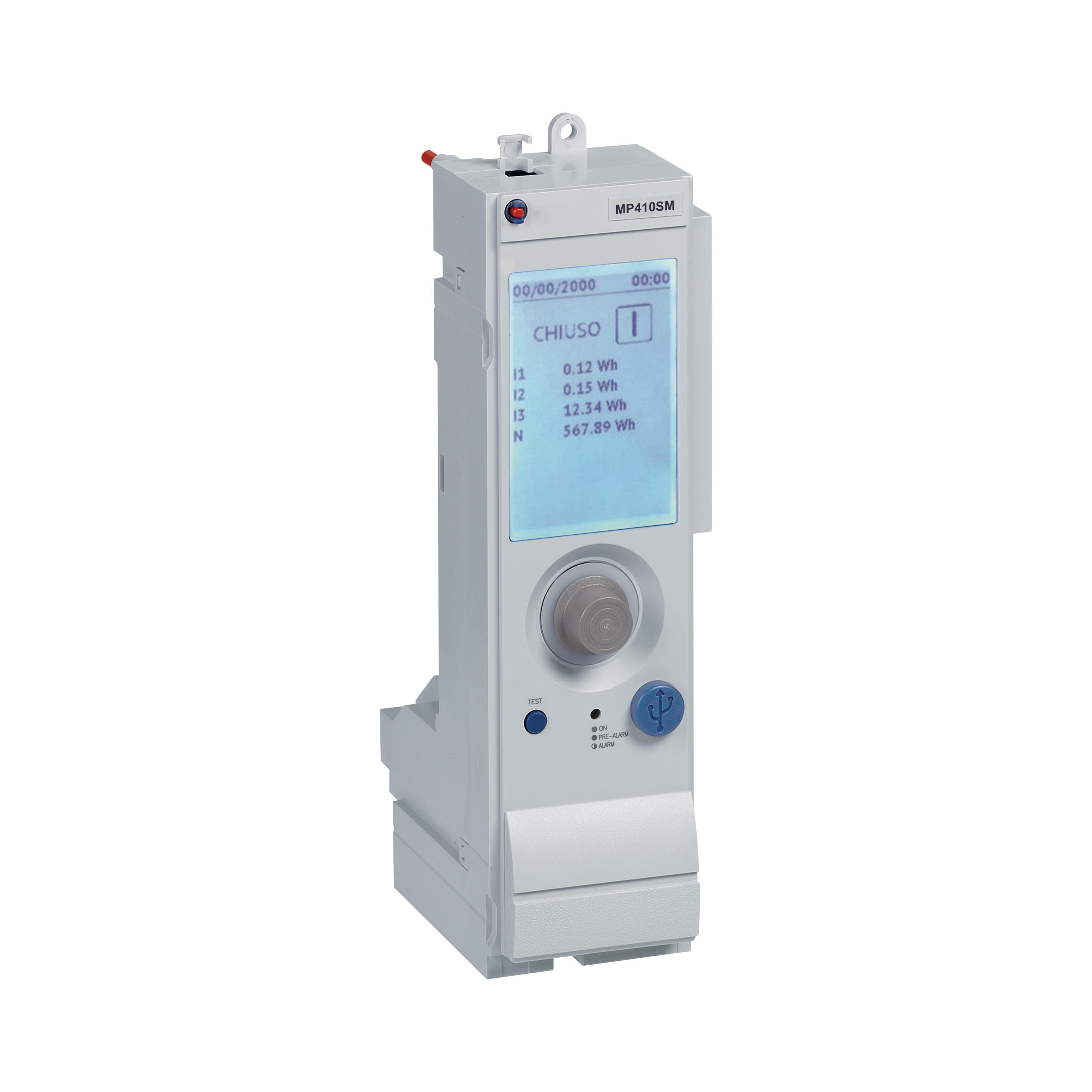

Electronic protection units to be equipped with Megabreak 1600 air circuit breakers. It enables very precise adjustments of the protection conditions, while maintaining total discrimination with downstream devices.
Product characteristics
- MP4.10 protection units with LCD screen, for Megabreak 1600. Integrated LCD screen for displaying electrical values, settings and log. Adjustment via rotating encoder (djustment of Ir, tr, isd, tsd, Ii, Ig and tg) and possibility to enable/disable protections
- Conform to IEC 60947-2, to be ordered togetherwith circuit breaker for factory assembly
- Equipped with batteries for powering in case of mains fault or when the breaker is open or not connected
- With mesure function: measure and display instantaneous, maximum and average values of different electrical values and protection conditions.
Technical Characteristics
Device construction
Other
Integrated earth fault protection
Yes
Type of electrical connection of main circuit
Other
Suitable for DIN rail (top hat rail) mounting
No
DIN rail (top hat rail) mounting optional
No
With switched-off indicator
Yes
With integrated under voltage release
No
Position of connection for main current circuit
Other
Type of control element
Turn button
Complete device with protection unit
No
Motor drive integrated
No
Motor drive optional
No
Degree of protection (IP)
IP20
Width
62 mm
Height
205 mm
Depth
90 mm
degree of impact strength (IK)
Not applicable
Operating / setting temperature (Min-Max)
-25-70 °C
Storage temperature (Min-Max)
-25-85 °C
Voltage type
Other
Electric supplying direction
Other
Terminal marking indication
No
Colour
Grey
RAL-number
7035
Halogen free
Yes
Cable nature for connection
Other
Label space/information surface
No
Contains Batteries and/or Accumulator
Yes
IEC code (Pack1)
CR2
Battery ou Accumulator (Pack1)
Battery (not rechargeable)
Element Composition (Pack1)
Lithium (battery or accumulator)
Number of Pack 1
4
Number of Single Element (Pack1)
1
Single Element weight (Pack1)
11 g
Pack1 Location
Product includes a battery
Documentation
1 documents
Technical Sheet
MODBUS_MAP | PDF (2.1 MB) | EN · FR
