  5. BT-M7TIC/IO
  • Module to be configured using a set of configurators
Measure BTicino

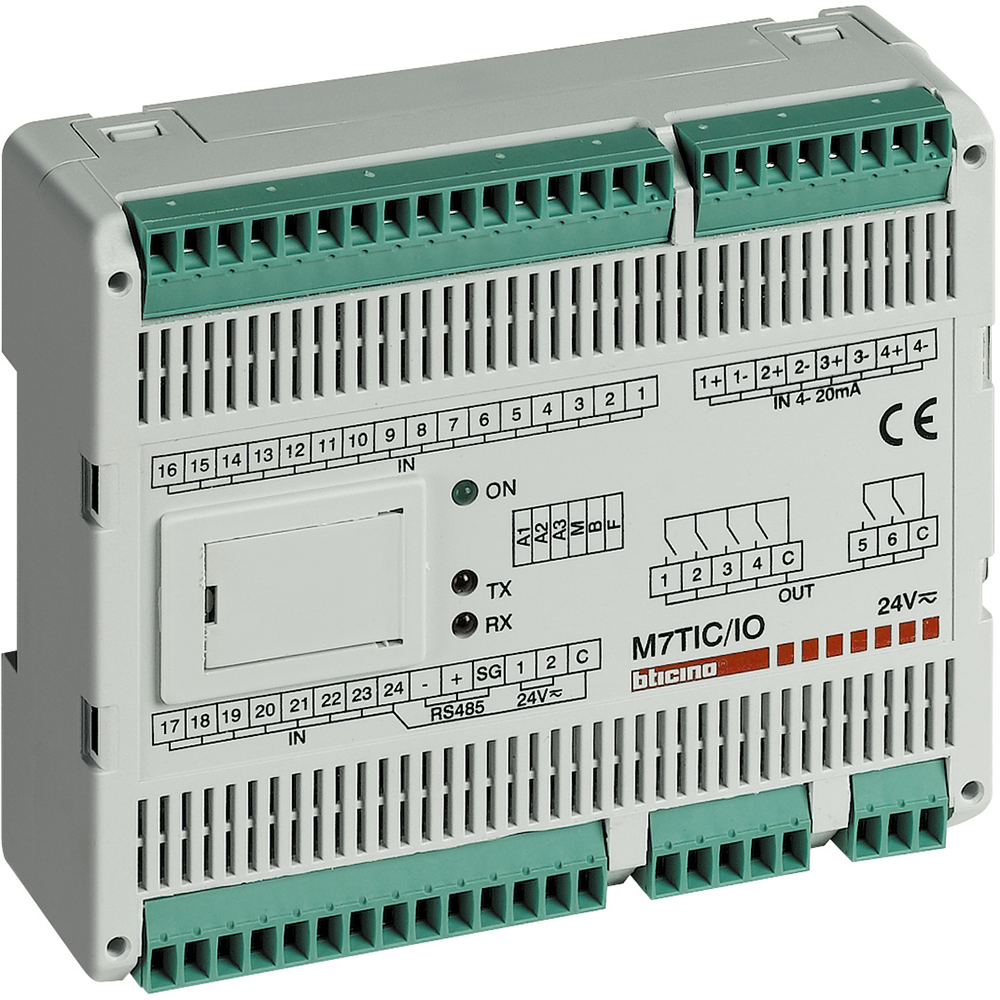

Module to be configured using a set of configurators

BT-M7TIC/IO | 8012199713168
Module to be configured using a set of configurators (item 3501K) – 24 inputs for the detection of change of status of signals coming from clean contacts, 4 analogue inputs (4-20mA) for the connection of sensors (temperature, pressure etc...), 6 relay NO outputs with 230V contacts, 2A and side expansion port – communication network with MODBUS protocol through RS485 physical connection. Vn = 24 Vac/dc - 6 DIN modules
Technical Characteristics
Type of electrical connection, field-sided Screw connection
Type of electrical connection, control sided Other
Number of poles 6
Rated voltage 24 V
Rated current 0.33 A
Pollution degree 2
Depth 30.5 mm
Width 110 mm
Height 90 mm
Mounting method DIN rail (top hat rail) 35 mm
Documentation
2 documents
Technical Sheet
IDP000112EN_02 | PDF (301 KB) | EN
Instruction Use
U0703A | PDF (156 KB)
