  • Interface for M250 - 1600ES
Measure BTicino

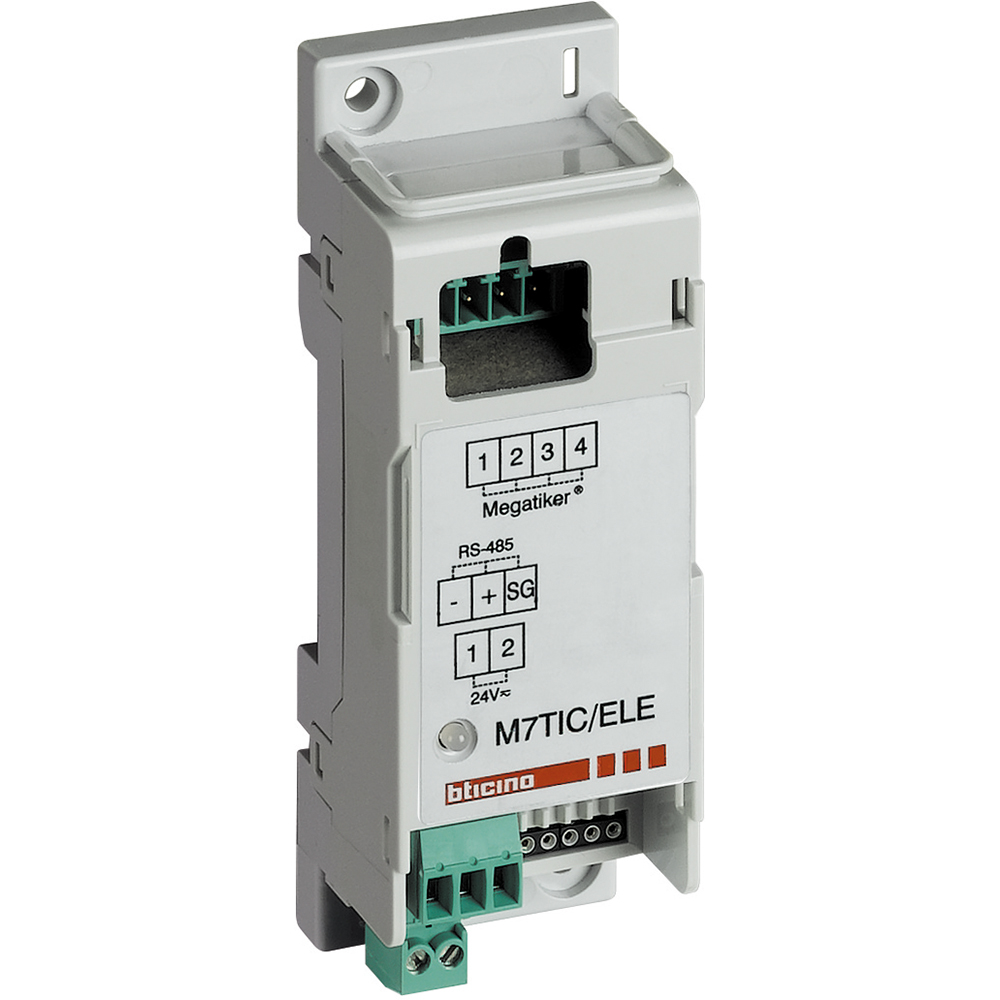

Interface for M250 - 1600ES

BT-M7TIC/ELE | 8012199783499
Interface for electronic M250 - 1600ES MEGATIKER, type “Lsi” or “Lsig”, interface for electronic M250 - 1600ES MEGATIKER, type “Lsi” or “Lsig”,to be configured using a configurator set (item 3501K) – it converts the data on the electronic card of circuit breakers in MODBUS protocol data. Detection of the circuit breaker properties, chronological tripping log, last trip details - MODBUS protocol through RS485 physical connection. Vn = 24 Vac/dc - 2 DIN modules
Technical Characteristics
Type of electrical connection, field-sided Screw connection
Type of electrical connection, control sided Other
Number of poles 2
Rated voltage 24 V
Rated current 0.33 A
Pollution degree 2
Depth 50 mm
Width 35.6 mm
Height 105 mm
Mounting method Other
Documentation
1 documents
Instruction Use
U0422A | PDF (667 KB)
