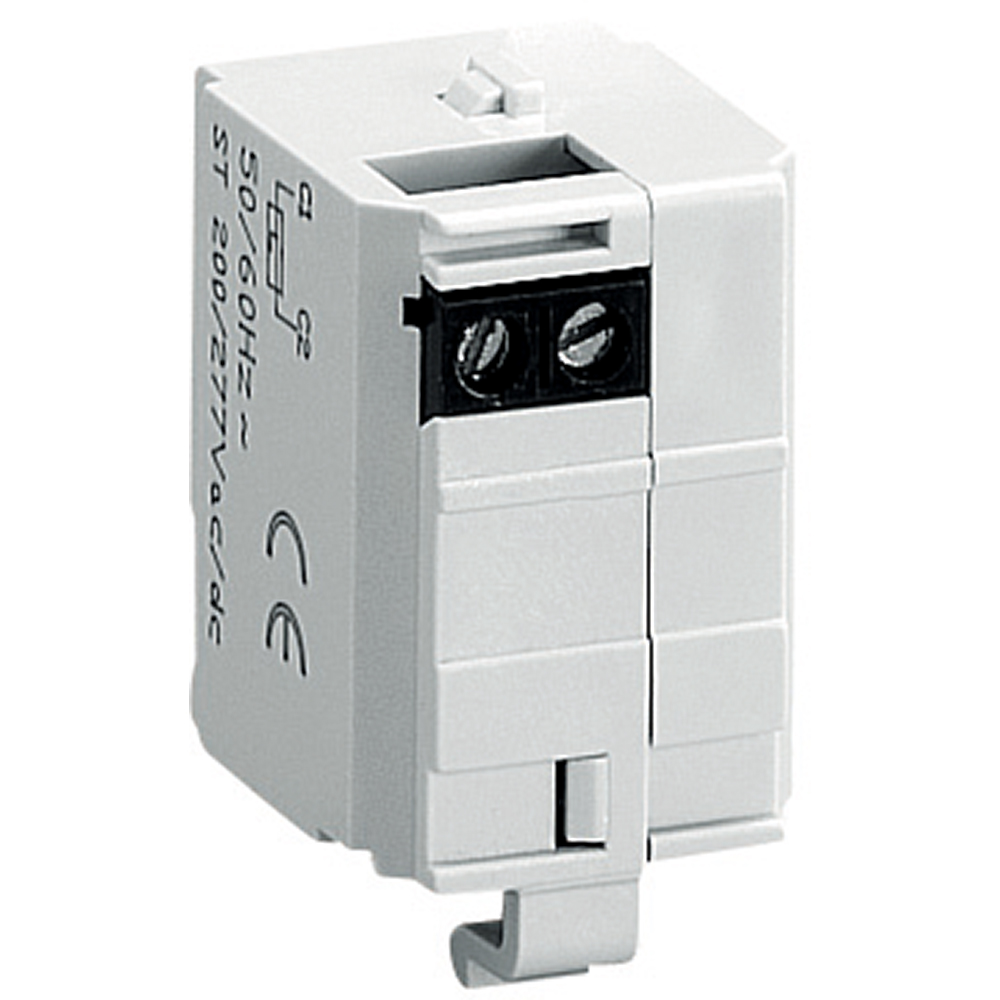

Shunt trip for M1 160 and M2 250 - Vn= 380-480Va.c
BT-M7S415
|
8012199973548
Technical Characteristics
Rated control supply voltage AC 50 Hz (Min-Max)
342-528 V
Rated control supply voltage AC 60 Hz (Min-Max)
342-528 V
Voltage type for actuating
AC
Type of electric connection
Screw connection
Number of contacts as normally open contact
0
Number of contacts as normally closed contact
0
Number of contacts as change-over contact
1
Suitable for power circuit breaker
Yes
Suitable for off-load switch
Yes
Suitable for motor safety switch
Yes
Suitable for overload relay
Yes
Operating / setting temperature (Min-Max)
-25-70 °C
Storage temperature (Min-Max)
-25-70 °C
Frequency (Min-Max)
50-60 Hz
Terminal marking indication
Yes
Terminals capacity (Min-Max)
0.5-1.5 mm²
Documentation
1 documents
Instruction Use
Y3423E | PDF (2.1 MB)
1 documents
Catalog Commercial Page
3244051 | PDF (28.2 MB) | EN
