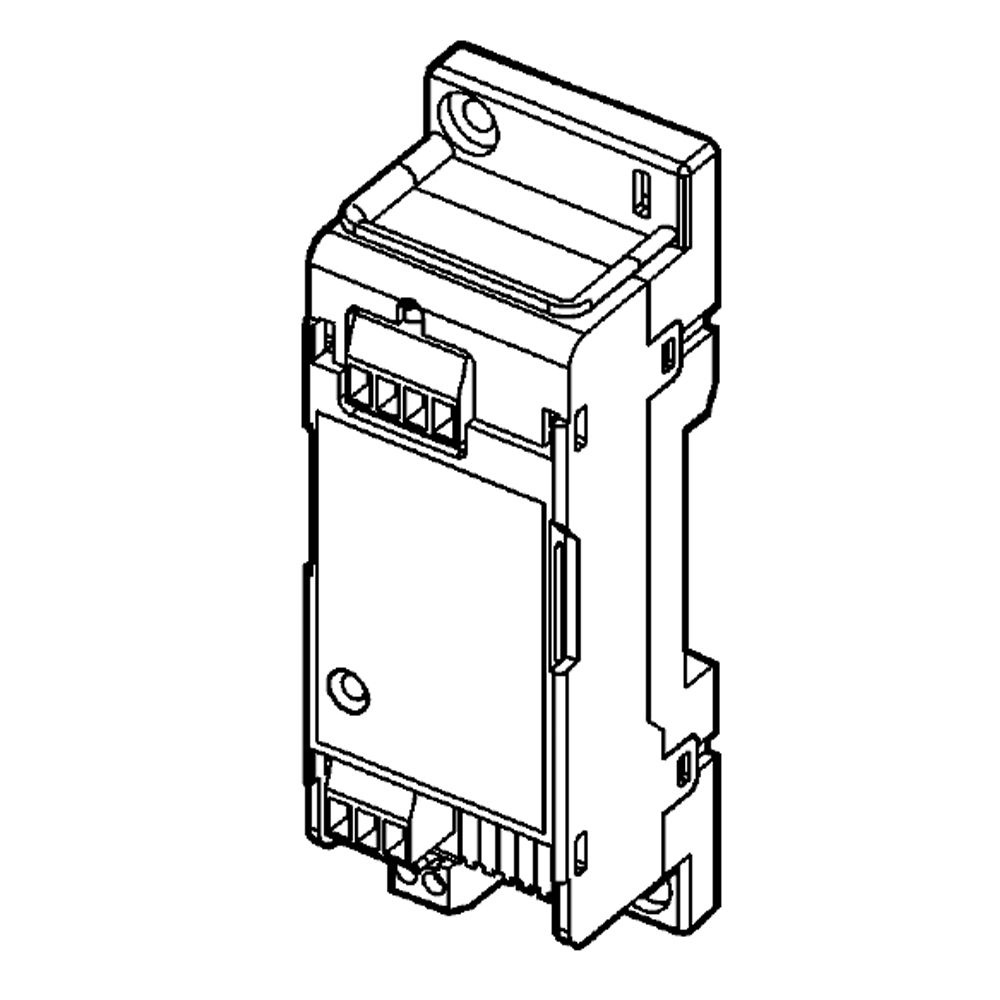

Power supply with input at 24 Vac/dc for M2, M4, M5
BT-M7ALIM
|
8005543478790
Technical Characteristics
Voltage type (supply voltage)
AC/DC
1st secondary output voltage DC (Min-Max)
10.8-13.2 V
Max. output current 1
0.25 A
Secondary voltage adjustable
No
Short-circuit-proof
Yes
Rated supply voltage AC 50 Hz (Min-Max)
21.6-26.4 V
Rated supply voltage AC 60 Hz (Min-Max)
21.6-26.4 V
Rated supply voltage DC (Min-Max)
21.6-26.4 V
Output voltage stabilized
Yes
Power consumption
3 VA
Power output
3 W
Stabilized
Yes
Type of electric connection
Screw-/spring clamp connection
Suitable for rail mounting
Yes
Suitable for wall mounting
Yes
Suitable for distribution board
Yes
Built-in height
105 mm
Width
35.6 mm
Height
105 mm
Depth
50 mm
Degree of protection (IP)
IP20
Documentation
1 documents
Instruction Use
LE05008AD | PDF (158 KB)
1 documents
Catalog Commercial Page
3244051 | PDF (28.2 MB) | EN
