  • Motor operators with direct activation for MEGATIKER with In = 1600A - Vn= 230Vac
MEGATIKER BTicino

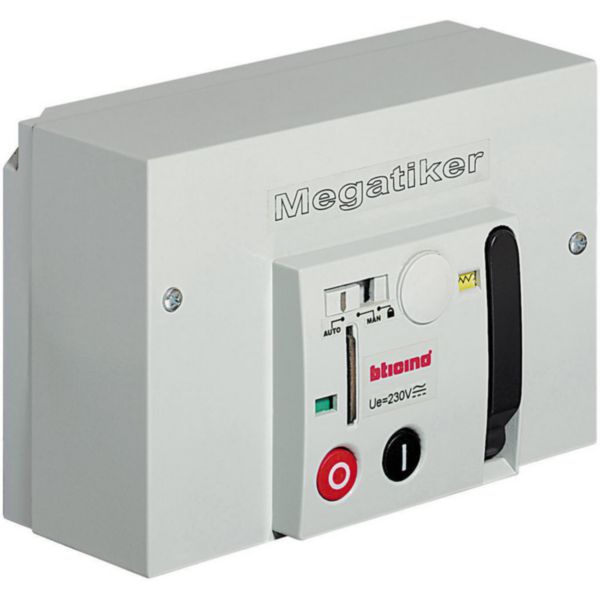

Motor operators with direct activation for MEGATIKER with In = 1600A - Vn= 230Vac

BT-M7875A230 | 8012199949963
Motor operators with direct activation for MEGATIKER with In = 1600A - Vn= 230 Vac
Technical Characteristics
Type of switch drive Motor drive
Rated control supply voltage AC 50 Hz (Min-Max) 195.5-253 V
Rated control supply voltage AC 60 Hz (Min-Max) 195.5-253 V
Rated control supply voltage DC (Min-Max) 195.5-253 V
Voltage type for actuating AC/DC
Width 210 mm
Height 142 mm
Depth 101 mm
Degree of protection (IP) IP30
Operating / setting temperature (Min-Max) -5-70 °C
Storage temperature (Min-Max) -40-85 °C
Voltage type AC/DC
Frequency (Min-Max) 50-60 Hz
Halogen free Yes
Documentation
1 documents
Instruction Use
LE08755AB | PDF (1.2 MB)
1 documents
Catalog Commercial Page
3244051 | PDF (28.2 MB) | EN
