MEGATIKER BTicino

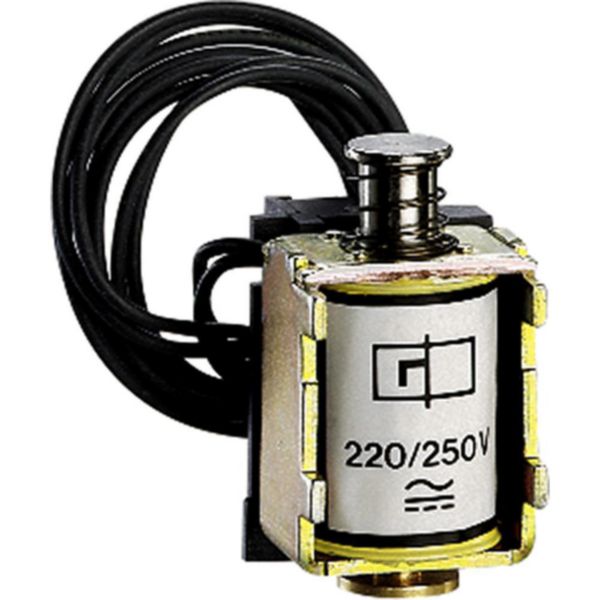

Shunt trip Vn= 230Vac

Name: Shunt trip Vn= 230Vac
Brand: BTicino
SKU: BT-M5T/220
Availability: InStock

BT-M5T/220 | 8012199097855

Compare

Technical Characteristics

Rated control supply voltage AC 50 Hz (Min-Max) 207-253 V

Rated control supply voltage AC 60 Hz (Min-Max) 207-253 V

Voltage type for actuating AC

Type of electric connection Other

Number of contacts as normally open contact 0

Number of contacts as normally closed contact 0

Number of contacts as change-over contact 1

Suitable for power circuit breaker Yes

Suitable for off-load switch Yes

Suitable for motor safety switch Yes

Suitable for overload relay Yes

Operating / setting temperature (Min-Max) -25-70 °C

Storage temperature (Min-Max) -25-70 °C

Frequency (Min-Max) 50-60 Hz

Terminal marking indication Yes

Terminals capacity (Min-Max) 0.5-0.5 mm²

Documentation

Instruction Use

80034D | PDF (538 KB)

Catalog Commercial Page

3244051 | PDF (28.2 MB) | EN
