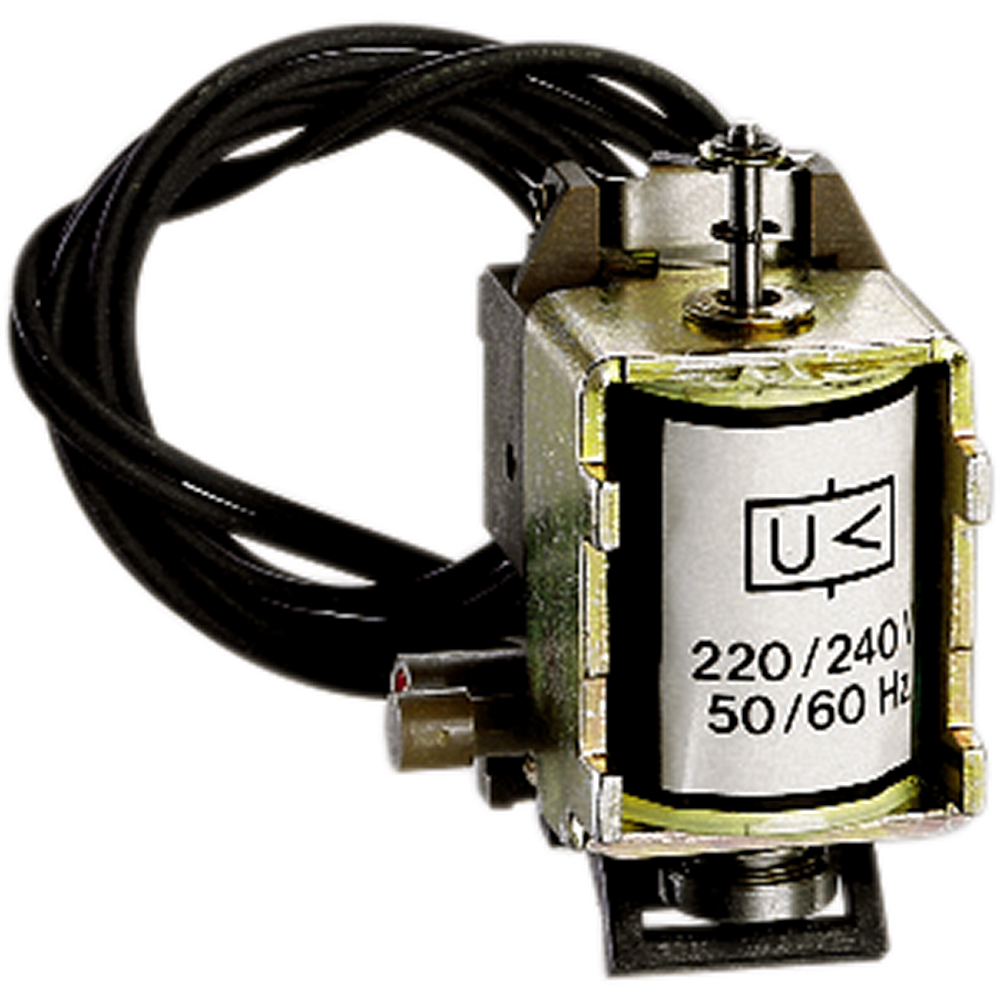

Undervoltage release for MEGASWITCH Vn= 400Vac
BT-M5M/380
|
8012199097756
Technical Characteristics
Rated control supply voltage AC 50 Hz (Min-Max)
340-440 V
Rated control supply voltage AC 60 Hz (Min-Max)
340-440 V
Voltage type for actuating
AC
Type of electric connection
Other
Delayed
No
Suitable for power circuit breaker
Yes
Suitable for off-load switch
Yes
Suitable for motor safety switch
Yes
Width
104 mm
Height
41 mm
Depth
67 mm
Degree of protection (IP)
IP30
Operating / setting temperature (Min-Max)
-5-70 °C
Storage temperature (Min-Max)
-40-85 °C
Halogen free
Yes
Prewired
Yes
Documentation
1 documents
Instruction Use
80037C | PDF (611 KB)
