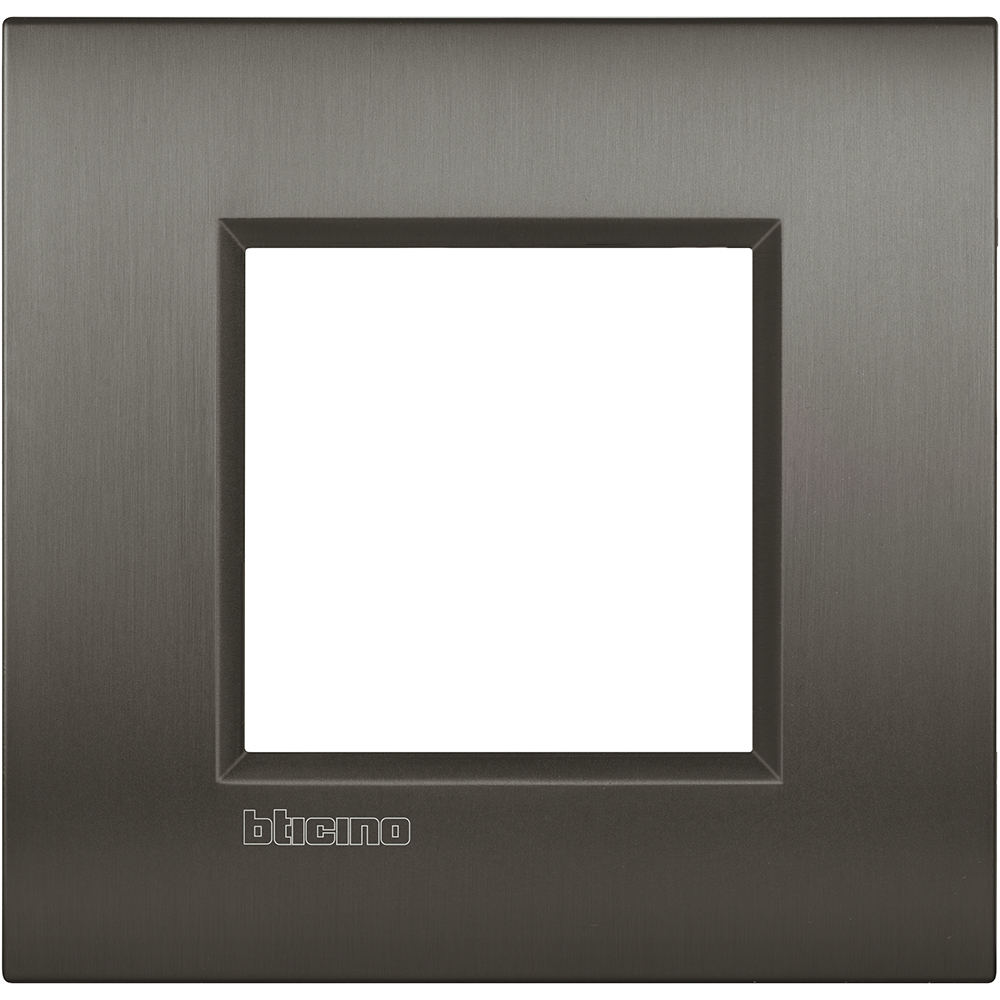

Cover plate AIR 2 modules - nickel titanium
BT-LNC4802NIS
|
8005543600269
Technical Characteristics
Number of units
2
Mounting direction
Horizontal
Number of units horizontal
0
Number of units vertical
2
Number of modules horizontal (module system)
0
Number of modules vertical (module system)
2
With mounting grid
No
Flush-mounted installation
Yes
Suitable for subfloor installation duct box
No
Suitable for wall duct
No
Suitable for built-in installation
Yes
Label space/information surface
No
Material
Metal
Material quality
Aluminium
Halogen free
Yes
Antimicrobial treatment
No
Surface protection
Lacquered
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7046
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP20
degree of impact strength (IK)
IK00
Type of fastening
Engage (snap)
Width
88 mm
Height
86 mm
Depth
4.75 mm
Built-in width
88 mm
Built-in height
0 mm
Operating / setting temperature (Min-Max)
-5-50 °C
Latin wood species
Not applicable
Certification of wood (list)
Not applicable
Wood Climate area
Not applicable
Documentation
1 documents
Technical Sheet
IDP001511_01-EN | PDF (2 MB) | EN
3 documents
Brochure
3250779 | PDF (3.2 MB) | EN
Catalog Commercial Page
CAT-LL-2M | PDF (39.5 MB) | EN
Catalog Commercial Page
CAT-LL-3M | PDF (38.7 MB) | EN
